WHIRLPOOL SPIW412LHE
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | SPIW412LHE |
| Kód 12NC: | 859991561180 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

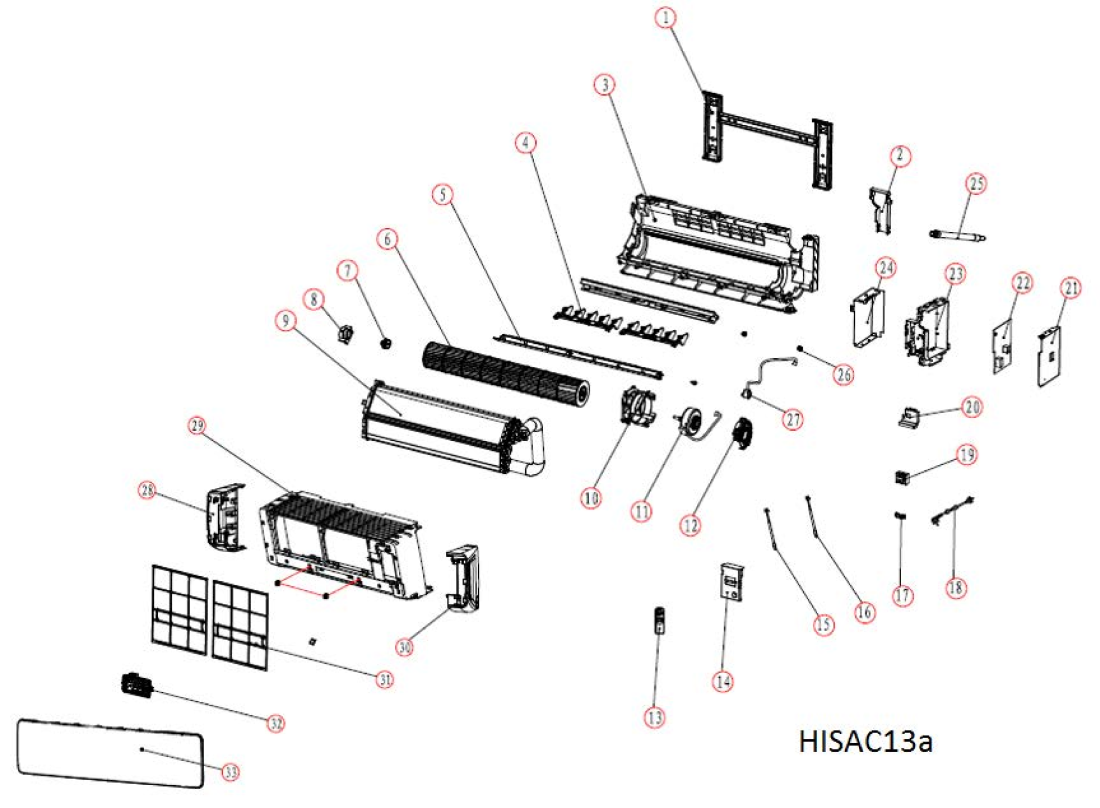

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 HISAC13a |
C00536088
482000010365 |
installation plate assy | Na dotaz | Zadat poptávku | |
| 002 HISAC13a |
C00533351
488000533351 |
baffle | Na dotaz | Zadat poptávku | |
| 003 HISAC13a |
C00385800
482000021162 |
Rear panel | Na dotaz | Zadat poptávku | |
| 004 HISAC13a |
C00385801
482000010300 |
Air guide | Na dotaz | Zadat poptávku | |
| 005 HISAC13a |
C00386332
482000021163 |
Air guide | Na dotaz | Zadat poptávku | |
| 006 HISAC13a |
C00385810
482000010356 |
Ventilátor klim.vnitřní jednotka | 2 031 Kč
€ 89.30 |
||
| 007 HISAC13a |
C00377868
481252048017 |
Bearing | Na dotaz | Zadat poptávku | |
| 008 HISAC13a |
C00385811
482000010297 |
Baffle | Na dotaz | Zadat poptávku | |
| 009 HISAC13a |
C00411987
482000010354 |
Evaporator cpl. | Na dotaz | Zadat poptávku | |
| 010 HISAC13a |
C00627209
488000627209 |
Kryt motoru | Na dotaz | Zadat poptávku | |
| 011 HISAC13a |
C00378271
482000010312 |
Motor fan | Na dotaz | Zadat poptávku | |
| 012 HISAC13a |
C00385817
482000010313 |
Cover | Na dotaz | Zadat poptávku | |
| 013 HISAC13a |
C00506408
482000095040 |
Remote control | Na dotaz | Zadat poptávku | |
| 014 HISAC13a |
C00385823
482000010315 |
Electric box cover | Na dotaz | Zadat poptávku | |
| 015 HISAC13a |
C00378138
482000000399 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| 016 HISAC13a |
C00385824
482000010333 |
SONDA TEPELNÁ | Na dotaz | Zadat poptávku | |
| 017 HISAC13a |
C00385825
482000092111 |
Clamp | Na dotaz | Zadat poptávku | |
| 018 HISAC13a |
C00521612
488000521612 |
AC Power wire | Na dotaz | Zadat poptávku | |
| 019 HISAC13a |
C00386171
482000010332 |
Wire terminal board | Na dotaz | Zadat poptávku | |
| 020 HISAC13a |
C00385837
482000010307 |
Electric box cover | Na dotaz | Zadat poptávku | |
| 021 HISAC13a |
C00385838
482000010306 |
Electric joint box plate | Na dotaz | Zadat poptávku | |
| 022 HISAC13a |
C00521970
488000521970 |
Indoor Main Control Board Component | Na dotaz | Zadat poptávku | |
| 023 HISAC13a |
C00385840
482000010304 |
KRABICE ELEKTRIKA | Na dotaz | Zadat poptávku | |
| 024 HISAC13a |
C00385841
482000010303 |
Electric parts box cover | Na dotaz | Zadat poptávku | |
| 025 HISAC13a |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
| 026 HISAC13a |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| 027 HISAC13a |
C00378270
482000010310 |
Step motor | Na dotaz | Zadat poptávku | |
| 028 HISAC13a |
C00520285
482000098628 |
P.U.shell | Na dotaz | Zadat poptávku | |
| 029 HISAC13a |
C00520284
482000098627 |
P.U.shell | Na dotaz | Zadat poptávku | |
| 030 HISAC13a |
C00520286
482000098629 |
P.U.shell | Na dotaz | Zadat poptávku | |
| 031 HISAC13a |
C00520287
482000098630 |
Filter net | Na dotaz | Zadat poptávku | |
| 032 HISAC13a |
C00506410
482000095042 |
Display | Na dotaz | Zadat poptávku | |
| 033 HISAC13a |
C00627250
488000627250 |
panel | Na dotaz | Zadat poptávku | |
| 999 HISAC13a |
C00506412
482000095044 |
Electronic box | Na dotaz | Zadat poptávku | |
| 001 HISAC13b |
C00627214
488000627214 |
Části panelu | Na dotaz | Zadat poptávku | |
| 002 HISAC13b |
C00378154
482000000515 |
Propeller fan blade | Na dotaz | Zadat poptávku | |
| 003 HISAC13b |
C00627243
488000627243 |
AC motor | Na dotaz | Zadat poptávku | |
| 004 HISAC13b |
C00521422
488000521422 |
motor supporter | Na dotaz | Zadat poptávku | |
| 005 HISAC13b |
C00520295
482000098638 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 006 HISAC13b |
C00520296
482000098639 |
User board upper | Na dotaz | Zadat poptávku | |
| 007 HISAC13b |
C00520297
482000098640 |
Guard back | Na dotaz | Zadat poptávku | |
| 008 HISAC13b |
C00627244
488000627244 |
Condenser assembly | Na dotaz | Zadat poptávku | |
| 009 HISAC13b |
C00520299
482000098642 |
Holder base part | Na dotaz | Zadat poptávku | |
| 010 HISAC13b |
C00520300
482000098643 |
Panel clap | Na dotaz | Zadat poptávku | |
| 011 HISAC13b |
C00627245
488000627245 |
Induktor PFC | Na dotaz | Zadat poptávku | |
| 012 HISAC13b |
C00627246
488000627246 |
Sestava 4cestného ventilu | Na dotaz | Zadat poptávku | |
| 013 HISAC13b |
C00377009
480150100338 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| 014 HISAC13b |
C00386291
482000021198 |
Coil | Na dotaz | Zadat poptávku | |
| 015 HISAC13b |
C00627247
488000627247 |
Kompresor | Na dotaz | Zadat poptávku | |
| 016 HISAC13b |
C00386293
482000021200 |
Cable harness | Na dotaz | Zadat poptávku | |
| 017 HISAC13b |
C00520303
482000098646 |
Valve seat | Na dotaz | Zadat poptávku | |
| 018 HISAC13b |
C00627248
488000627248 |
Capillary assembly | Na dotaz | Zadat poptávku | |
| 019 HISAC13b |
C00377578
481236058637 |
Valve 2-way | Na dotaz | Zadat poptávku | |
| 020 HISAC13b |
C00385957
482000010346 |
Valve 3 way | Na dotaz | Zadat poptávku | |
| 021 HISAC13b |
C00520305
482000098648 |
User board right side | Na dotaz | Zadat poptávku | |
| 022 HISAC13b |
C00385959
480150100575 |
Cover | Na dotaz | Zadat poptávku | |
| 023 HISAC13b |
C00520233
482000098617 |
Box electric | Na dotaz | Zadat poptávku | |
| 024 HISAC13b |
C00520306
482000098649 |
User board connecting | Na dotaz | Zadat poptávku | |
| 026 HISAC13b |
C00627249
488000627249 |
Komponenta venkovní hlavní řídicí desky | Na dotaz | Zadat poptávku | |
| 028 HISAC13b |
C00506473
482000095086 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 029 HISAC13b |
C00506474
482000095087 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 030 HISAC13b |
C00386310
482000021210 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| 999 HISAC13b |
C00520235
482000098619 |
Cover electric box | Na dotaz | Zadat poptávku | |
