WHIRLPOOL SPIW418LL/2
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | SPIW418LL/2 |
| Kód 12NC/I.C. kód: | 852645798000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

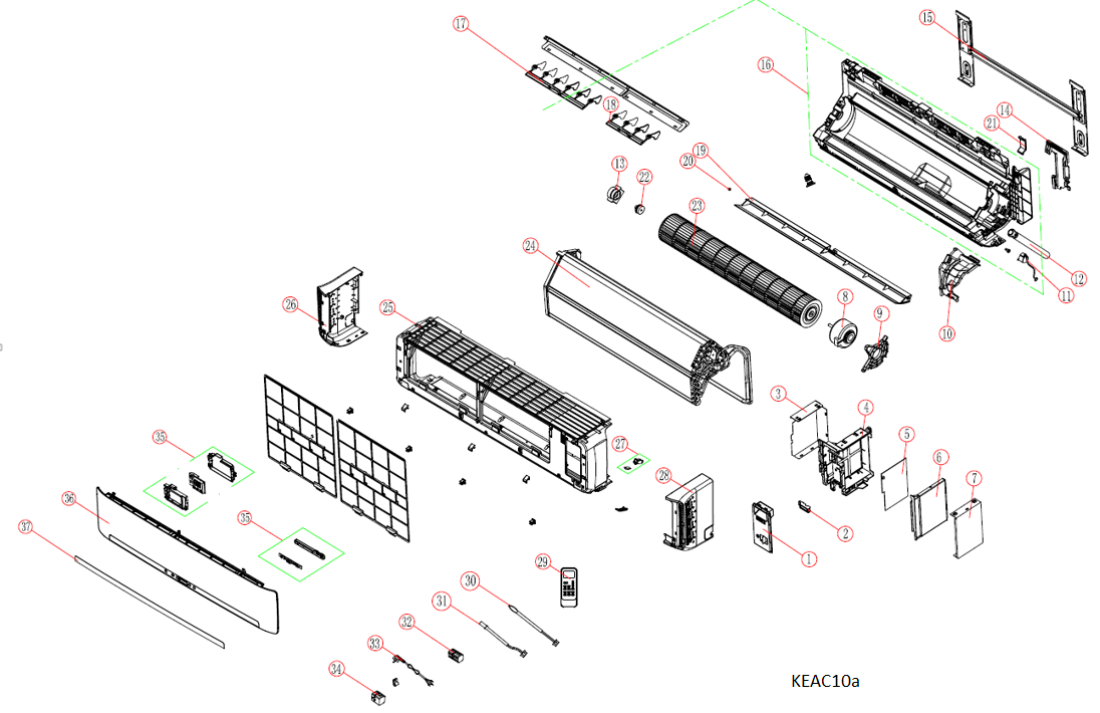

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A001 WHR23448 |
C00385999
482000021393 |
Cover | Na dotaz | Zadat poptávku | |
| A002 WHR23448 |
C00386001
482000021394 |
Clamp | Na dotaz | Zadat poptávku | |
| A003 WHR23448 |
C00386002
482000021395 |
Elect.parts box plate | Na dotaz | Zadat poptávku | |
| A004 WHR23448 |
C00386010
482000021396 |
KRABICE ELEKTRIKA | Na dotaz | Zadat poptávku | |
| A005 WHR23448 |
C00525715
482000099538 |
Control unit indoor board compon | Na dotaz | Zadat poptávku | |
| A006 WHR23448 |
C00386027
482000021398 |
Elect.parts box cover | Na dotaz | Zadat poptávku | |
| A007 WHR23448 |
C00386028
482000021399 |
Elect.parts box cover | Na dotaz | Zadat poptávku | |
| A008 WHR23448 |
C00386029
482000021400 |
Motor fan | Na dotaz | Zadat poptávku | |
| A009 WHR23448 |
C00386031
482000021401 |
Cover | Na dotaz | Zadat poptávku | |
| A010 WHR23448 |
C00386038
482000021402 |
Protect motor | Na dotaz | Zadat poptávku | |
| A011 WHR23448 |
C00386049
482000021506 |
Steppin motor | Na dotaz | Zadat poptávku | |
| A012 WHR23448 |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
| A013 WHR23448 |
C00385811
482000010297 |
Baffle | Na dotaz | Zadat poptávku | |
| A014 WHR23448 |
C00386050
482000021404 |
Deflector | Na dotaz | Zadat poptávku | |
| A015 WHR23448 |
C00386051
482000006139 |
Plate mounting | Na dotaz | Zadat poptávku | |
| A016 WHR23448 |
C00520208
482000098592 |
Holder base part | Na dotaz | Zadat poptávku | |
| A017 WHR23448 |
C00386053
482000021409 |
Air guide | Na dotaz | Zadat poptávku | |
| A018 WHR23448 |
C00386054
482000021410 |
Air guide | Na dotaz | Zadat poptávku | |
| A019 WHR23448 |
C00386266
482000021407 |
Air guide | Na dotaz | Zadat poptávku | |
| A020 WHR23448 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| A021 WHR23448 |
C00386056
482000021411 |
Deflector | Na dotaz | Zadat poptávku | |
| A022 WHR23448 |
C00386059
480150100234 |
Ložisko | Na dotaz | Zadat poptávku | |
| A023 WHR23448 |
C00386061
482000021412 |
Fan | Na dotaz | Zadat poptávku | |
| A024 WHR23448 |
C00386066
482000021413 |
Evaporator | Na dotaz | Zadat poptávku | |
| A025 WHR23448 |
C00386272
482000021414 |
Cover front | Na dotaz | Zadat poptávku | |
| A026 WHR23448 |
C00386280
482000021392 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| A027 WHR23448 |
C00385852
482000091710 |
Keyboard | Na dotaz | Zadat poptávku | |
| A028 WHR23448 |
C00386282
482000021415 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| A029 WHR23448 |
C00506408
482000095040 |
Remote control | Na dotaz | Zadat poptávku | |
| A030 WHR23448 |
C00378138
482000000399 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| A031 WHR23448 |
C00378139
482000000400 |
Sensor temper. coil | Na dotaz | Zadat poptávku | |
| A032 WHR23448 |
C00386169
480150100146 |
Terminal Board | Na dotaz | Zadat poptávku | |
| A033 WHR23448 |
C00386174
482000010402 |
Cable mains | Na dotaz | Zadat poptávku | |
| A035 WHR23448 |
C00506416
482000095048 |
Display | Na dotaz | Zadat poptávku | |
| A036 WHR23448 |
C00417573
482000021417 |
Front panel | Na dotaz | Zadat poptávku | |
| A037 WHR23448 |
C00506417
482000095049 |
Display diaphragm | Na dotaz | Zadat poptávku | |
| A038 WHR23448 |
C00386077
482000021419 |
Filter | Na dotaz | Zadat poptávku | |
| B001 WHR23448 |
C00419885
482000092193 |
Panel front | Na dotaz | Zadat poptávku | |
| B002 WHR23448 |
C00395501
480150100828 |
Fan wheel Outdoor | Na dotaz | Zadat poptávku | |
| B003 WHR23448 |
C00419886
482000092194 |
Motor fan outdoor | Na dotaz | Zadat poptávku | |
| B004 WHR23448 |
C00419887
482000092195 |
Plate | Na dotaz | Zadat poptávku | |
| B005 WHR23448 |
C00419888
482000092196 |
Support motor | Na dotaz | Zadat poptávku | |
| B006 WHR23448 |
C00419889
482000092197 |
Base | Na dotaz | Zadat poptávku | |
| B008 WHR23448 |
C00419891
482000092199 |
Condenser | Na dotaz | Zadat poptávku | |
| B009 WHR23448 |
C00419892
482000092200 |
Grid airing rear | Na dotaz | Zadat poptávku | |
| B010 WHR23448 |
C00525716
482000099539 |
Part upper board | Na dotaz | Zadat poptávku | |
| B011 WHR23448 |
C00419894
482000092202 |
Control board outdoor | Na dotaz | Zadat poptávku | |
| B012 WHR23448 |
C00419895
482000092203 |
Electronic box | Na dotaz | Zadat poptávku | |
| B013 WHR23448 |
C00525717
482000099540 |
Filter board | Na dotaz | Zadat poptávku | |
| B014,B034 WHR23448 |
C00386171
482000010332 |
Wire terminal board | Na dotaz | Zadat poptávku | |
| B015 WHR23448 |
C00378141
482000000402 |
TEMPERATURE SENSOR | Na dotaz | Zadat poptávku | |
| B016 WHR23448 |
C00378140
482000000401 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B017 WHR23448 |
C00377023
480150100848 |
Sensor temper. Outdoor ambient | Na dotaz | Zadat poptávku | |
| B018 WHR23448 |
C00386124
480150100843 |
Valve 4-WAY | Na dotaz | Zadat poptávku | |
| B019 WHR23448 |
C00409747
482000006124 |
Valve 4 Way | Na dotaz | Zadat poptávku | |
| B020 WHR23448 |
C00419897
482000092205 |
Valve 4-way assy | Na dotaz | Zadat poptávku | |
| B021 WHR23448 |
C00419898
482000092206 |
Compressor | Na dotaz | Zadat poptávku | |
| B022 WHR23448 |
C00419899
482000092207 |
Wire connect Compressor | Na dotaz | Zadat poptávku | |
| B023 WHR23448 |
C00419900
482000092208 |
Capillary tube | Na dotaz | Zadat poptávku | |
| B024 WHR23448 |
C00377578
481236058637 |
Valve 2-way | Na dotaz | Zadat poptávku | |
| B025 WHR23448 |
C00377580
481236058645 |
Valve 3-way | Na dotaz | Zadat poptávku | |
| B026 WHR23448 |
C00525718
482000099541 |
User board right side | Na dotaz | Zadat poptávku | |
| B027 WHR23448 |
C00525719
482000099542 |
Cover wiring distribution | Na dotaz | Zadat poptávku | |
| B028 WHR23448 |
C00419903
482000092211 |
Plate | Na dotaz | Zadat poptávku | |
| B029 WHR23448 |
C00419904
482000092212 |
Cover | Na dotaz | Zadat poptávku | |
| B030 WHR23448 |
C00386136
482000010419 |
PFC reactor | Na dotaz | Zadat poptávku | |
