WHIRLPOOL SPIW422LL/2
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | SPIW422LL/2 |
| Kód 12NC: | 852645898000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

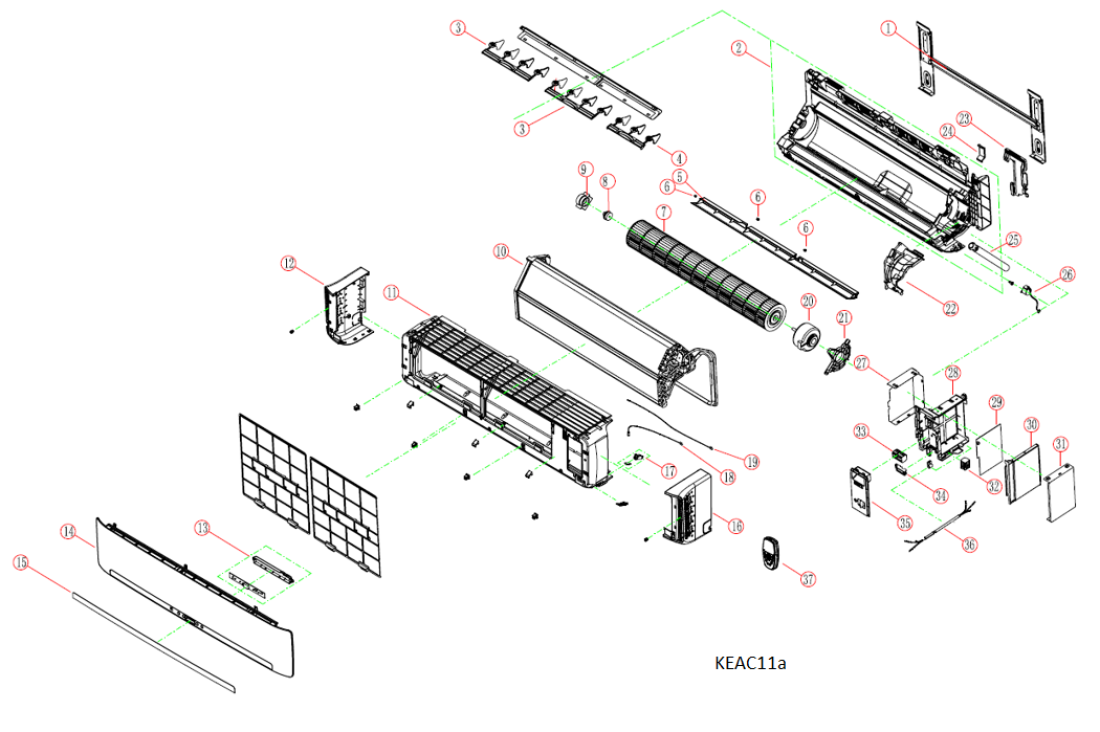

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A001 WHR23450 |
C00386051
482000006139 |
Plate mounting | Na dotaz | Zadat poptávku | |
| A002 WHR23450 |
C00525720
482000099543 |
Holder base part | Na dotaz | Zadat poptávku | |
| A003 WHR23450 |
C00386157
482000021496 |
Air guide | Na dotaz | Zadat poptávku | |
| A004 WHR23450 |
C00386054
482000021410 |
Air guide | Na dotaz | Zadat poptávku | |
| A005 WHR23450 |
C00386357
482000021497 |
Air guide | Na dotaz | Zadat poptávku | |
| A006 WHR23450 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| A007 WHR23450 |
C00386159
482000021498 |
Fan | Na dotaz | Zadat poptávku | |
| A008 WHR23450 |
C00386059
480150100234 |
Ložisko | Na dotaz | Zadat poptávku | |
| A009 WHR23450 |
C00385811
482000010297 |
Baffle | Na dotaz | Zadat poptávku | |
| A010 WHR23450 |
C00386160
482000092470 |
Refrigeration system | Na dotaz | Zadat poptávku | |
| A011 WHR23450 |
C00386358
482000021500 |
Cover front | Na dotaz | Zadat poptávku | |
| A012 WHR23450 |
C00386280
482000021392 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| A013 WHR23450 |
C00506416
482000095048 |
Display | Na dotaz | Zadat poptávku | |
| A014 WHR23450 |
C00417646
482000021501 |
Front panel | Na dotaz | Zadat poptávku | |
| A015 WHR23450 |
C00513496
482000096943 |
Diaphragm according to | Na dotaz | Zadat poptávku | |
| A016 WHR23450 |
C00386282
482000021415 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| A017 WHR23450 |
C00385852
482000091710 |
Keyboard | Na dotaz | Zadat poptávku | |
| A018 WHR23450 |
C00378139
482000000400 |
Sensor temper. coil | Na dotaz | Zadat poptávku | |
| A019 WHR23450 |
C00378138
482000000399 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| A020 WHR23450 |
C00386452
482000091841 |
FAN MOTOR | Na dotaz | Zadat poptávku | |
| A021 WHR23450 |
C00386031
482000021401 |
Cover | Na dotaz | Zadat poptávku | |
| A022 WHR23450 |
C00386164
482000021505 |
Protect motor | Na dotaz | Zadat poptávku | |
| A023 WHR23450 |
C00386050
482000021404 |
Deflector | Na dotaz | Zadat poptávku | |
| A024 WHR23450 |
C00386056
482000021411 |
Deflector | Na dotaz | Zadat poptávku | |
| A025 WHR23450 |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
| A026 WHR23450 |
C00386049
482000021506 |
Steppin motor | Na dotaz | Zadat poptávku | |
| A027 WHR23450 |
C00386002
482000021395 |
Elect.parts box plate | Na dotaz | Zadat poptávku | |
| A028 WHR23450 |
C00386010
482000021396 |
KRABICE ELEKTRIKA | Na dotaz | Zadat poptávku | |
| A029 WHR23450 |
C00525721
482000099544 |
Control unit indoor main board | Na dotaz | Zadat poptávku | |
| A030 WHR23450 |
C00386027
482000021398 |
Elect.parts box cover | Na dotaz | Zadat poptávku | |
| A031 WHR23450 |
C00386028
482000021399 |
Elect.parts box cover | Na dotaz | Zadat poptávku | |
| A032 WHR23450 |
C00386169
480150100146 |
Terminal Board | Na dotaz | Zadat poptávku | |
| A033,B013 WHR23450 |
C00386171
482000010332 |
Wire terminal board | Na dotaz | Zadat poptávku | |
| A034 WHR23450 |
C00386001
482000021394 |
Clamp | Na dotaz | Zadat poptávku | |
| A035 WHR23450 |
C00385999
482000021393 |
Cover | Na dotaz | Zadat poptávku | |
| A036 WHR23450 |
C00386174
482000010402 |
Cable mains | Na dotaz | Zadat poptávku | |
| A037 WHR23450 |
C00506408
482000095040 |
Remote control | Na dotaz | Zadat poptávku | |
| A038 WHR23450 |
C00386177
482000021508 |
Filter | Na dotaz | Zadat poptávku | |
| B001 WHR23450 |
C00386086
482000006149 |
Front panel | Na dotaz | Zadat poptávku | |
| B002 WHR23450 |
C00409765
482000006151 |
Fan Out door | Na dotaz | Zadat poptávku | |
| B003 WHR23450 |
C00503833
482000094010 |
Motor fan | Na dotaz | Zadat poptávku | |
| B004 WHR23450 |
C00386434
482000021283 |
Bracket motor | Na dotaz | Zadat poptávku | |
| B005 WHR23450 |
C00503827
482000094019 |
Base | Na dotaz | Zadat poptávku | |
| B006 WHR23450 |
C00386098
482000006157 |
Plate mounting | Na dotaz | Zadat poptávku | |
| B007 WHR23450 |
C00386102
482000021422 |
Condenser | Na dotaz | Zadat poptávku | |
| B008 WHR23450 |
C00386110
482000010407 |
Air grid | Na dotaz | Zadat poptávku | |
| B009 WHR23450 |
C00386113
482000006156 |
Cover top | Na dotaz | Zadat poptávku | |
| B010 WHR23450 |
C00503835
482000094012 |
Control board | Na dotaz | Zadat poptávku | |
| B011 WHR23450 |
C00386118
482000010409 |
Wire box | Na dotaz | Zadat poptávku | |
| B012 WHR23450 |
C00503836
482000094013 |
Filter BOARD | Na dotaz | Zadat poptávku | |
| B014 WHR23450 |
C00385985
480150100377 |
Sensor temper. Outdoor ambient | Na dotaz | Zadat poptávku | |
| B015 WHR23450 |
C00378140
482000000401 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B016 WHR23450 |
C00377023
480150100848 |
Sensor temper. Outdoor ambient | Na dotaz | Zadat poptávku | |
| B017 WHR23450 |
C00386124
480150100843 |
Valve 4-WAY | Na dotaz | Zadat poptávku | |
| B018 WHR23450 |
C00386125
481236058434 |
Valve 4 Way | Na dotaz | Zadat poptávku | |
| B019 WHR23450 |
C00503837
482000094014 |
Valve 4-way assy | Na dotaz | Zadat poptávku | |
| B020 WHR23450 |
C00503826
482000094018 |
Compressor | Na dotaz | Zadat poptávku | |
| B021 WHR23450 |
C00419899
482000092207 |
Wire connect Compressor | Na dotaz | Zadat poptávku | |
| B022 WHR23450 |
C00503855
482000094016 |
Cover | Na dotaz | Zadat poptávku | |
| B023 WHR23450 |
C00409772
482000006164 |
Valve 2 way | Na dotaz | Zadat poptávku | |
| B024 WHR23450 |
C00386202
482000006161 |
Valve 3 Way | Na dotaz | Zadat poptávku | |
| B025 WHR23450 |
C00412026
482000010413 |
Side panel | Na dotaz | Zadat poptávku | |
| B026 WHR23450 |
C00385959
480150100575 |
Cover | Na dotaz | Zadat poptávku | |
| B027 WHR23450 |
C00386133
482000006169 |
Plate mounting | Na dotaz | Zadat poptávku | |
| B028 WHR23450 |
C00412031
482000010421 |
Plate | Na dotaz | Zadat poptávku | |
| B029 WHR23450 |
C00386135
482000010420 |
Cover | Na dotaz | Zadat poptávku | |
| B030 WHR23450 |
C00386136
482000010419 |
PFC reactor | Na dotaz | Zadat poptávku | |
