WHIRLPOOL SPIW WH409
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | SPIW WH409 |
| Kód 12NC/I.C. kód: | 859991573770 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

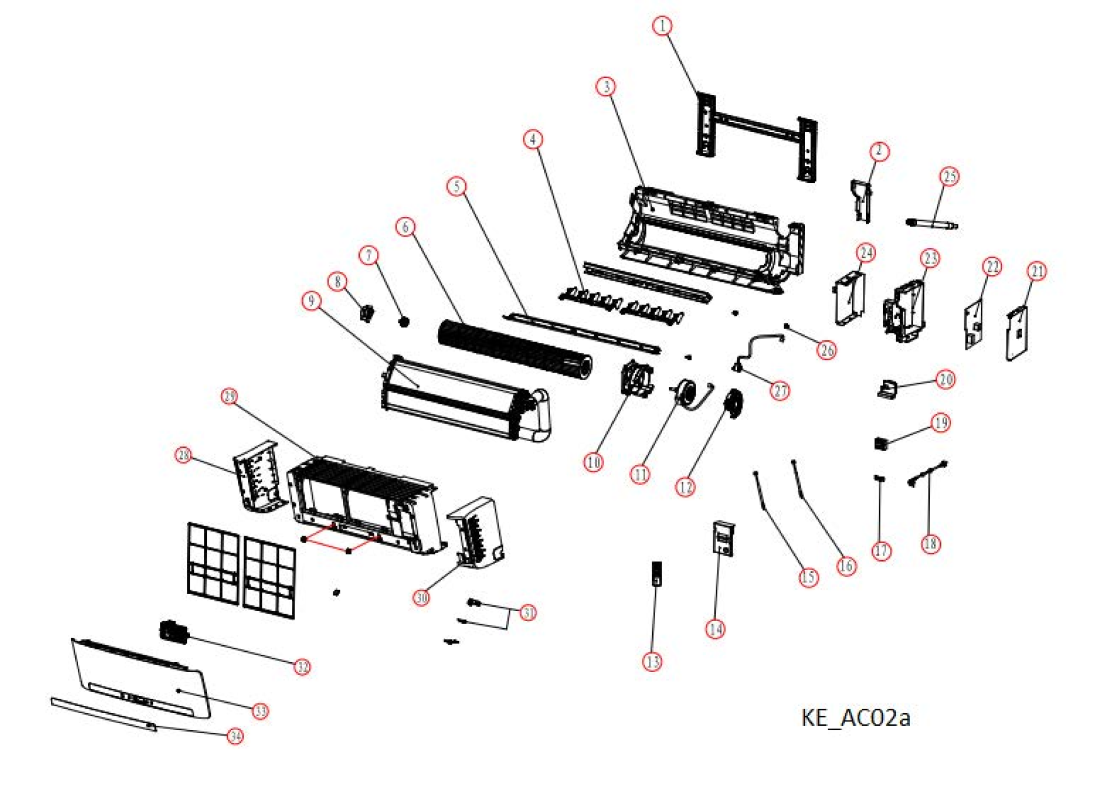

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 KE_AC02a |
C00386236
482000010322 |
Mounting plate | Na dotaz | Zadat poptávku | |
| 002 KE_AC02a |
C00533351
488000533351 |
baffle | Na dotaz | Zadat poptávku | |
| 003 KE_AC02a |
C00386303
482000021180 |
Rear panel | Na dotaz | Zadat poptávku | |
| 004 KE_AC02a |
C00385801
482000010300 |
Air guide | Na dotaz | Zadat poptávku | |
| 005 KE_AC02a |
C00386251
482000021181 |
Air guide | Na dotaz | Zadat poptávku | |
| 006 KE_AC02a |
C00378268
482000010298 |
Turbine blades | Na dotaz | Zadat poptávku | |
| 007 KE_AC02a |
C00377868
481252048017 |
Bearing | Na dotaz | Zadat poptávku | |
| 008 KE_AC02a |
C00385811
482000010297 |
Baffle | Na dotaz | Zadat poptávku | |
| 009 KE_AC02a |
C00386234
482000021182 |
Evaporator | Na dotaz | Zadat poptávku | |
| 010 KE_AC02a |
C00385815
482000010311 |
Protect motor | Na dotaz | Zadat poptávku | |
| 011 KE_AC02a |
C00378271
482000010312 |
Motor ventilátoru klimatizace Whirlpool | 3 909 Kč
€ 159.90 |
||
| 012 KE_AC02a |
C00385817
482000010313 |
Cover | Na dotaz | Zadat poptávku | |
| 013 KE_AC02a |
C00506408
482000095040 |
Remote control | Na dotaz | Zadat poptávku | |
| 014 KE_AC02a |
C00385823
482000010315 |
Electric box cover | Na dotaz | Zadat poptávku | |
| 015 KE_AC02a |
C00378138
482000000399 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| 016 KE_AC02a |
C00385824
482000010333 |
SONDA TEPELNÁ | Na dotaz | Zadat poptávku | |
| 017 KE_AC02a |
C00385825
482000092111 |
Clamp | Na dotaz | Zadat poptávku | |
| 018 KE_AC02a |
C00386257
482000021188 |
Mains cable | Na dotaz | Zadat poptávku | |
| 019 KE_AC02a |
C00386171
482000010332 |
Wire terminal board | Na dotaz | Zadat poptávku | |
| 020 KE_AC02a |
C00385837
482000010307 |
Electric box cover | Na dotaz | Zadat poptávku | |
| 021 KE_AC02a |
C00385838
482000010306 |
Electric joint box plate | Na dotaz | Zadat poptávku | |
| 022 KE_AC02a |
C00513495
482000096942 |
Control board main indoor | Na dotaz | Zadat poptávku | |
| 023 KE_AC02a |
C00385840
482000010304 |
KRABICE ELEKTRIKA | Na dotaz | Zadat poptávku | |
| 024 KE_AC02a |
C00385841
482000010303 |
Electric parts box cover | Na dotaz | Zadat poptávku | |
| 025 KE_AC02a |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
| 026 KE_AC02a |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| 027 KE_AC02a |
C00378270
482000010310 |
Step motor | Na dotaz | Zadat poptávku | |
| 028 KE_AC02a |
C00386264
482000021165 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| 029 KE_AC02a |
C00386263
482000021183 |
Cover front | Na dotaz | Zadat poptávku | |
| 030 KE_AC02a |
C00386267
482000021166 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| 031 KE_AC02a |
C00385852
482000091710 |
Keyboard | Na dotaz | Zadat poptávku | |
| 032 KE_AC02a |
C00506410
482000095042 |
Display | Na dotaz | Zadat poptávku | |
| 033 KE_AC02a |
C00417419
482000021186 |
Front panel | Na dotaz | Zadat poptávku | |
| 034 KE_AC02a |
C00386273
482000021171 |
Button | Na dotaz | Zadat poptávku | |
| 035 KE_AC02a |
C00521613
488000521613 |
display film | Na dotaz | Zadat poptávku | |
| 036 KE_AC02a |
C00386262
482000021361 |
Carbon filter (white grid) | Na dotaz | Zadat poptávku | |
| 037 KE_AC02a |
C00506412
482000095044 |
Electronic box | Na dotaz | Zadat poptávku | |
| 001 KE_AC02b |
C00520226
482000098610 |
Panel parts | Na dotaz | Zadat poptávku | |
| 002 KE_AC02b |
C00386274
482000021191 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 003 KE_AC02b |
C00419871
482000092179 |
Motor fan outdoor | Na dotaz | Zadat poptávku | |
| 004 KE_AC02b |
C00385868
480150100117 |
Bracket Motor | Na dotaz | Zadat poptávku | |
| 005 KE_AC02b |
C00385869
480150100107 |
Support | Na dotaz | Zadat poptávku | |
| 006 KE_AC02b |
C00386351
482000091714 |
UPPER BOARD | Na dotaz | Zadat poptávku | |
| 007 KE_AC02b |
C00386312
482000021211 |
Air grid rear | Na dotaz | Zadat poptávku | |
| 008 KE_AC02b |
C00419872
482000092180 |
Condenser cpl. | Na dotaz | Zadat poptávku | |
| 009 KE_AC02b |
C00386285
482000021195 |
BASE | Na dotaz | Zadat poptávku | |
| 010 KE_AC02b |
C00542849
488000542849 |
clapboard | Na dotaz | Zadat poptávku | |
| 011 KE_AC02b |
C00385880
482000000386 |
Transformer | Na dotaz | Zadat poptávku | |
| 012 KE_AC02b |
C00521368
488000521368 |
4-way valve assembly | Na dotaz | Zadat poptávku | |
| 013 KE_AC02b |
C00377009
480150100338 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| 014 KE_AC02b |
C00386291
482000021198 |
Coil | Na dotaz | Zadat poptávku | |
| 015 KE_AC02b |
C00521369
488000521369 |
Compressor GS089MBB - R410A | Na dotaz | Zadat poptávku | |
| 016 KE_AC02b |
C00386293
482000021200 |
Cable harness | Na dotaz | Zadat poptávku | |
| 017 KE_AC02b |
C00386295
482000021201 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 018 KE_AC02b |
C00419874
482000092182 |
Capillary tube | Na dotaz | Zadat poptávku | |
| 019 KE_AC02b |
C00377578
481236058637 |
Valve 2-way | Na dotaz | Zadat poptávku | |
| 020 KE_AC02b |
C00385957
482000010346 |
Valve 3 way | Na dotaz | Zadat poptávku | |
| 021 KE_AC02b |
C00386297
482000021203 |
Side panel | Na dotaz | Zadat poptávku | |
| 022 KE_AC02b |
C00385959
480150100575 |
Cover | Na dotaz | Zadat poptávku | |
| 023 KE_AC02b |
C00520233
482000098617 |
Box electric | Na dotaz | Zadat poptávku | |
| 024 KE_AC02b |
C00385981
482000000382 |
Support plate | Na dotaz | Zadat poptávku | |
| 025 KE_AC02b |
C00386298
480150100391 |
Terminal Board. | Na dotaz | Zadat poptávku | |
| 026 KE_AC02b |
C00521370
488000521370 |
Outdoor Main Control Board Component | Na dotaz | Zadat poptávku | |
| 027 KE_AC02b |
C00520235
482000098619 |
Cover electric box | Na dotaz | Zadat poptávku | |
| 028 KE_AC02b |
C00506473
482000095086 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 029 KE_AC02b |
C00506474
482000095087 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 030 KE_AC02b |
C00386310
482000021210 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| 031 KE_AC02b |
C00386250
480150100864 |
Holder Sensor temper. | Na dotaz | Zadat poptávku | |
| 032 KE_AC02b |
C00545239
488000545239 |
sensor mounting plate | Na dotaz | Zadat poptávku | |
| 033 KE_AC02b |
C00545240
488000545240 |
sensor mounting plate | Na dotaz | Zadat poptávku | |
