WHIRLPOOL SPOW 409/2



Zeptejte se. Rádi poradíme.

Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
Komerční kód: | SPOW 409/2 |
Kód 12NC/I.C. kód: | 853120201250 |
Značka: | WHIRLPOOL |
Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|

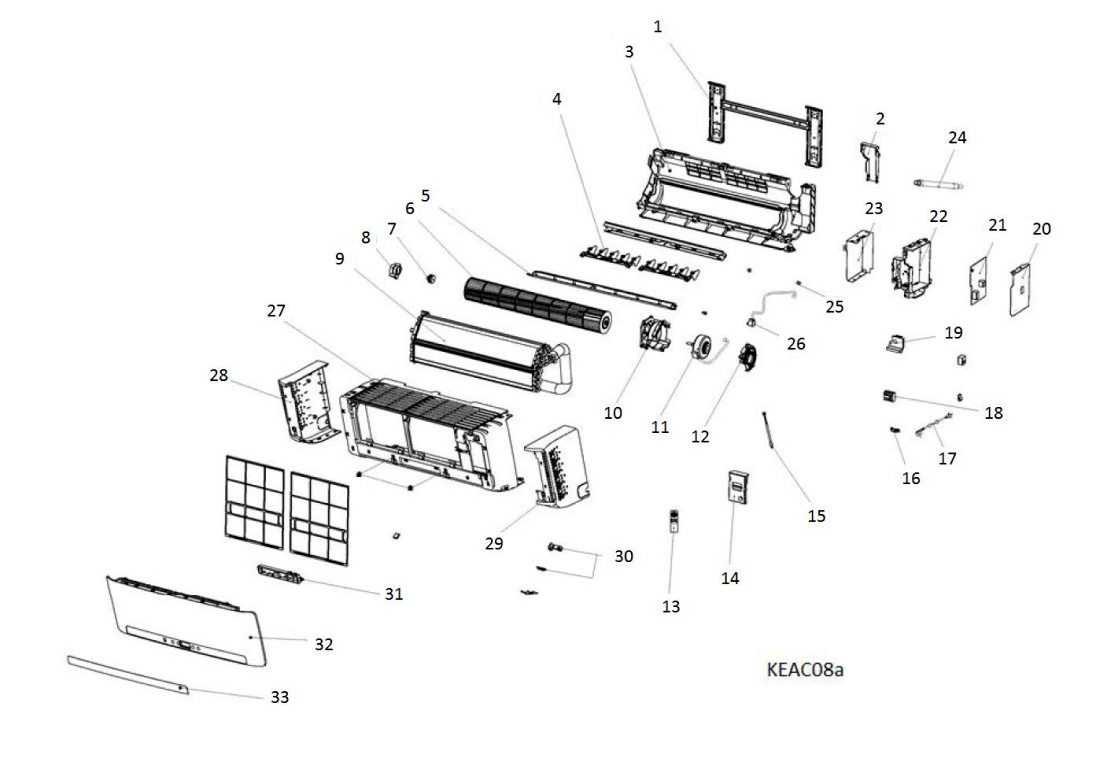

001 KEAC08a |
C00386236
482000010322 |
Mounting plate | Na dotaz | Zadat poptávku | |
002 KEAC08a |
C00533351
488000533351 |
baffle | Na dotaz | Zadat poptávku | |
003 KEAC08a |
C00386303
482000021180 |
Rear panel | Na dotaz | Zadat poptávku | |
004 KEAC08a |
C00385801
482000010300 |
Air guide | Na dotaz | Zadat poptávku | |
005 KEAC08a |
C00386251
482000021181 |
Air guide | Na dotaz | Zadat poptávku | |
006 KEAC08a |
C00378268
482000010298 |
Turbine blades | Na dotaz | Zadat poptávku | |
007 KEAC08a |
C00377868
481252048017 |
Bearing | Na dotaz | Zadat poptávku | |
008 KEAC08a |
C00385811
482000010297 |
Baffle | Na dotaz | Zadat poptávku | |
009 KEAC08a |
C00419621
482000091707 |
Evaporator | Na dotaz | Zadat poptávku | |
010 KEAC08a |
C00385815
482000010311 |
Protect motor | Na dotaz | Zadat poptávku | |
011 KEAC08a |
C00378271
482000010312 |
Motor ventilátoru klimatizace Whirlpool | 3 909 Kč
€ 159.90 |
||
012 KEAC08a |
C00385817
482000010313 |
Cover | Na dotaz | Zadat poptávku | |
013 KEAC08a |
C00513349
482000096832 |
Remote control | Na dotaz | Zadat poptávku | |
014 KEAC08a |
C00385823
482000010315 |
Electric box cover | Na dotaz | Zadat poptávku | |
015 KEAC08a |
C00378272
482000010314 |
Sensor temper. | Na dotaz | Zadat poptávku | |
016 KEAC08a |
C00419622
482000091708 |
Clamp | Na dotaz | Zadat poptávku | |
017 KEAC08a |
C00411959
482000010308 |
Cable mains | Na dotaz | Zadat poptávku | |
018 KEAC08a |
C00394929
480150100136 |
Terminal Board | Na dotaz | Zadat poptávku | |
019 KEAC08a |
C00385837
482000010307 |
Electric box cover | Na dotaz | Zadat poptávku | |
020 KEAC08a |
C00385838
482000010306 |
Electric joint box plate | Na dotaz | Zadat poptávku | |
021 KEAC08a |
C00569445
488000569445 |
Vnitřní součást hlavního ovládacího pane | Na dotaz | Zadat poptávku | |
022 KEAC08a |
C00385840
482000010304 |
KRABICE ELEKTRIKA | Na dotaz | Zadat poptávku | |
023 KEAC08a |
C00385841
482000010303 |
Electric parts box cover | Na dotaz | Zadat poptávku | |
024 KEAC08a |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
025 KEAC08a |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
026 KEAC08a |
C00378270
482000010310 |
Step motor | Na dotaz | Zadat poptávku | |
027 KEAC08a |
C00569446
488000569446 |
shell | Na dotaz | Zadat poptávku | |
028 KEAC08a |
C00386264
482000021165 |
Cap ornamental | Na dotaz | Zadat poptávku | |
029 KEAC08a |
C00386267
482000021166 |
Cap ornamental | Na dotaz | Zadat poptávku | |
030 KEAC08a |
C00385852
482000091710 |
Keyboard | Na dotaz | Zadat poptávku | |
031 KEAC08a |
C00523895
482000099405 |
Display unit | Na dotaz | Zadat poptávku | |
032 KEAC08a |
C00417419
482000021186 |
Front panel | Na dotaz | Zadat poptávku | |
033 KEAC08a |
C00419625
482000091712 |
Display | Na dotaz | Zadat poptávku | |
034 KEAC08a |
C00386262
482000021361 |
Carbon filter (white grid) | Na dotaz | Zadat poptávku | |
099 KEAC08a |
C00386273
482000021171 |
Button | Na dotaz | Zadat poptávku | |
001 KEAC08b |
C00520226
482000098610 |
Panel parts | Na dotaz | Zadat poptávku | |
002 KEAC08b |
C00386274
482000021191 |
Fan wheel | Na dotaz | Zadat poptávku | |
003 KEAC08b |
C00419626
482000091713 |
Motor fan outdoor | Na dotaz | Zadat poptávku | |
004 KEAC08b |
C00385868
480150100117 |
Bracket Motor | Na dotaz | Zadat poptávku | |
005 KEAC08b |
C00385869
480150100107 |
Support | Na dotaz | Zadat poptávku | |
006 KEAC08b |
C00386351
482000091714 |
UPPER BOARD | Na dotaz | Zadat poptávku | |
007 KEAC08b |
C00419627
482000091715 |
Air grid rear | Na dotaz | Zadat poptávku | |
008 KEAC08b |
C00521410
488000521410 |
Condenser assembly | Na dotaz | Zadat poptávku | |
009 KEAC08b |
C00386285
482000021195 |
BASE | Na dotaz | Zadat poptávku | |
010 KEAC08b |
C00419629
482000091717 |
Separator | Na dotaz | Zadat poptávku | |
011 KEAC08b |
C00523915
482000099425 |
Valve 4 way assembly | Na dotaz | Zadat poptávku | |
012 KEAC08b |
C00377009
480150100338 |
Valve 4-way | Na dotaz | Zadat poptávku | |
013 KEAC08b |
C00394954
480150100172 |
Coil Valve | Na dotaz | Zadat poptávku | |
014 KEAC08b |
C00523916
482000099426 |
Compressor | Na dotaz | Zadat poptávku | |
015 KEAC08b |
C00406985
482000000519 |
Cable harness | Na dotaz | Zadat poptávku | |
016 KEAC08b |
C00386295
482000021201 |
Plate mounting | Na dotaz | Zadat poptávku | |
017 KEAC08b |
C00523917
482000099427 |
Support throttle | Na dotaz | Zadat poptávku | |
018 KEAC08b |
C00377578
481236058637 |
Valve 2-way | Na dotaz | Zadat poptávku | |
019 KEAC08b |
C00419633
482000091721 |
Valve 3 way | Na dotaz | Zadat poptávku | |
020 KEAC08b |
C00386297
482000021203 |
Side panel | Na dotaz | Zadat poptávku | |
021 KEAC08b |
C00385959
480150100575 |
Cover | Na dotaz | Zadat poptávku | |
022 KEAC08b |
C00376992
480150100148 |
Electric plate | Na dotaz | Zadat poptávku | |
023 KEAC08b |
C00406986
482000000520 |
Terminal Board | Na dotaz | Zadat poptávku | |
024 KEAC08b |
C00409754
482000006138 |
Capacitor | Na dotaz | Zadat poptávku | |
025 KEAC08b |
C00376986
480150100129 |
Capacitor | Na dotaz | Zadat poptávku |
