WHIRLPOOL SPOW4309
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | SPOW4309 |
| Kód 12NC: | 859991598470 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

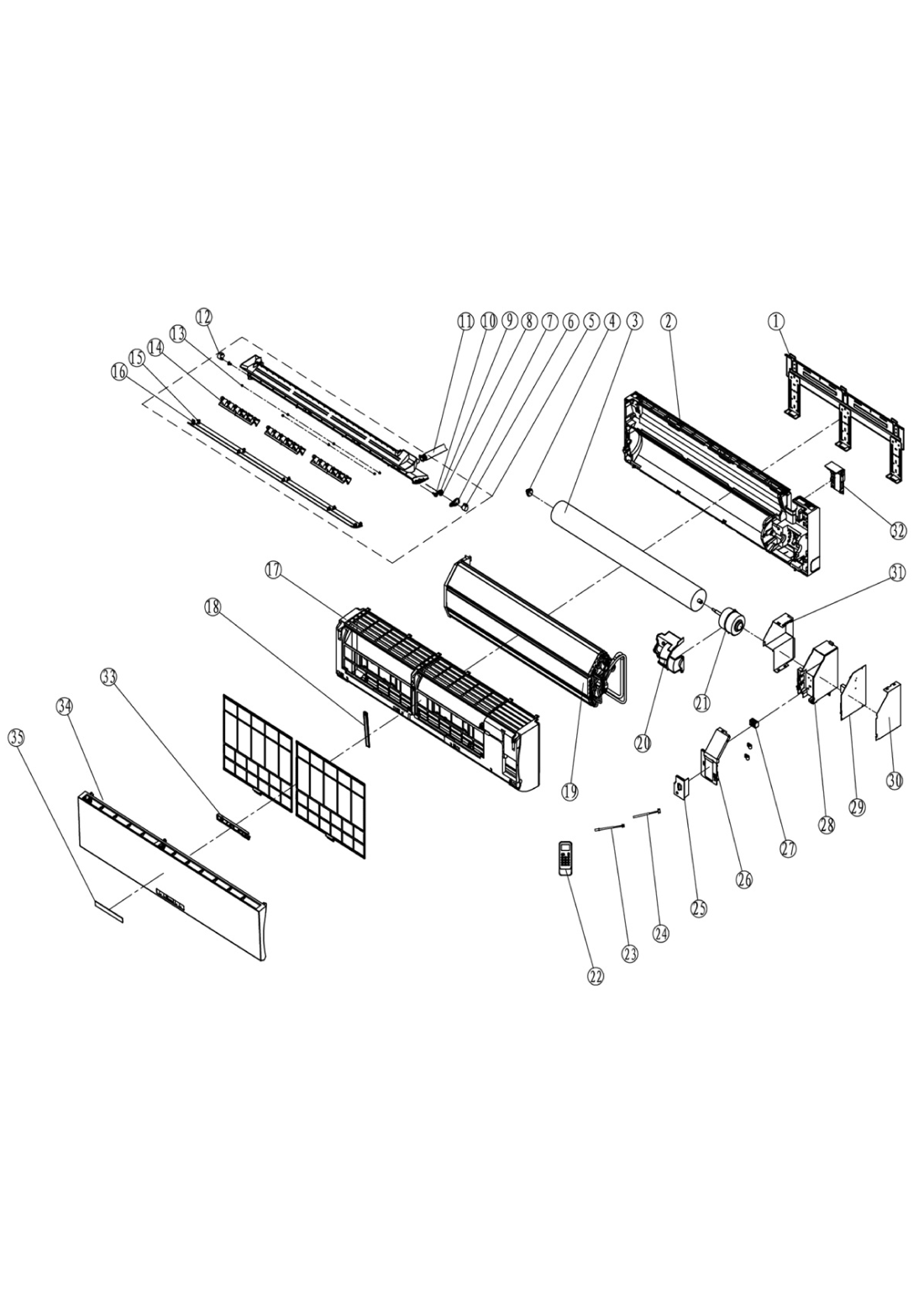

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 4309_IND |
C00627357
488000627357 |
installation plate | Na dotaz | Zadat poptávku | |
| 002 4309_IND |
C00413826
482000013770 |
Chassis | Na dotaz | Zadat poptávku | |
| 003 4309_IND |
C00413827
482000013771 |
Fan wheel Indoor | Na dotaz | Zadat poptávku | |
| 004 4309_IND |
C00401834
481240418496 |
Bearing | Na dotaz | Zadat poptávku | |
| 005 4309_IND |
C00503804
482000093986 |
Outlet Stud | Na dotaz | Zadat poptávku | |
| 006 4309_IND |
C00376989
480150100135 |
Motorek | 495 Kč
€ 21.80 |
||
| 007 4309_IND |
C00503805
482000093987 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 008 4309_IND |
C00419713
482000091875 |
osy | Na dotaz | Zadat poptávku | |
| 009 4309_IND |
C00503806
482000093988 |
Link | Na dotaz | Zadat poptávku | |
| 010 4309_IND |
C00419715
482000091877 |
Bearing | Na dotaz | Zadat poptávku | |
| 011 4309_IND |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
| 012 4309_IND |
C00413829
482000013773 |
Steppin motor | Na dotaz | Zadat poptávku | |
| 013 4309_IND |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| 014 4309_IND |
C00413830
482000013774 |
Conveyor air | Na dotaz | Zadat poptávku | |
| 015 4309_IND |
C00413831
482000013775 |
Conveyor air horizontal | Na dotaz | Zadat poptávku | |
| 016 4309_IND |
C00413832
482000013776 |
Conveyor air horizontal | Na dotaz | Zadat poptávku | |
| 017 4309_IND |
C00627551
488000627551 |
skořápka | Na dotaz | Zadat poptávku | |
| 018 4309_IND |
C00413835
482000013779 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 019 4309_IND |
C00627552
488000627552 |
Chladicí systém | Na dotaz | Zadat poptávku | |
| 020 4309_IND |
C00413842
482000013786 |
Protect motor | Na dotaz | Zadat poptávku | |
| 021 4309_IND |
C00627359
488000627359 |
fan motor | Na dotaz | Zadat poptávku | |
| 022 4309_IND |
C00513349
482000096832 |
Remote control | Na dotaz | Zadat poptávku | |
| 023 4309_IND |
C00378139
482000000400 |
Sensor temper. coil | Na dotaz | Zadat poptávku | |
| 024 4309_IND |
C00413845
482000013789 |
Sensor temper. Indoor | Na dotaz | Zadat poptávku | |
| 025 4309_IND |
C00413846
482000013790 |
Cover | Na dotaz | Zadat poptávku | |
| 026 4309_IND |
C00413847
482000013791 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| 027 4309_IND |
C00500748
481221778151 |
Electr.device | Na dotaz | Zadat poptávku | |
| 028 4309_IND |
C00413849
482000013793 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| 029 4309_IND |
C00627360
488000627360 |
Indoor Main Control Board Component | Na dotaz | Zadat poptávku | |
| 030 4309_IND |
C00413844
482000013788 |
Electric plate box | Na dotaz | Zadat poptávku | |
| 031 4309_IND |
C00413851
482000013795 |
Electric plate box | Na dotaz | Zadat poptávku | |
| 032 4309_IND |
C00413852
482000013796 |
Plate cover | Na dotaz | Zadat poptávku | |
| 033 4309_IND |
C00627556
488000627556 |
Display Component | Na dotaz | Zadat poptávku | |
| 034 4309_IND |
C00632877
488000632877 |
panel | Na dotaz | Zadat poptávku | |
| 035 4309_IND |
C00627557
488000627557 |
display film | Na dotaz | Zadat poptávku | |
| 099 4309_IND |
C00632871
488000632871 |
Filter net | Na dotaz | Zadat poptávku | |
| 001 4309_OUT |
C00627282
488000627282 |
base holder part | Na dotaz | Zadat poptávku | |
| 002 4309_OUT |
C00627350
488000627350 |
condenser | Na dotaz | Zadat poptávku | |
| 003 4309_OUT |
C00386202
482000006161 |
Valve 3 Way | Na dotaz | Zadat poptávku | |
| 004 4309_OUT |
C00632872
488000632872 |
compressor | Na dotaz | Zadat poptávku | |
| 005 4309_OUT |
C00413858
482000013802 |
Cable | Na dotaz | Zadat poptávku | |
| 006 4309_OUT |
C00386199
482000017888 |
Bracket | Na dotaz | Zadat poptávku | |
| 007 4309_OUT |
C00632873
488000632873 |
DC Motor | Na dotaz | Zadat poptávku | |
| 008 4309_OUT |
C00386196
482000017885 |
Fan outdoor | Na dotaz | Zadat poptávku | |
| 009 4309_OUT |
C00386205
482000017891 |
Valve | Na dotaz | Zadat poptávku | |
| 010 4309_OUT |
C00632874
488000632874 |
Throttle assembly | Na dotaz | Zadat poptávku | |
| 011 4309_OUT |
C00386216
482000017896 |
Panel side | Na dotaz | Zadat poptávku | |
| 012 4309_OUT |
C00632875
488000632875 |
compressor cooling tube assembly | Na dotaz | Zadat poptávku | |
| 013 4309_OUT |
C00627293
488000627293 |
elektrický kloub skříň assy | Na dotaz | Zadat poptávku | |
| 014 4309_OUT |
C00377001
480150100267 |
Terminal Board 2U | Na dotaz | Zadat poptávku | |
| 015 4309_OUT |
C00395282
480150100569 |
Capacitor | Na dotaz | Zadat poptávku | |
| 016 4309_OUT |
C00627294
488000627294 |
wiring distribution cover assy | Na dotaz | Zadat poptávku | |
| 017 4309_OUT |
C00627295
488000627295 |
Části panelu | Na dotaz | Zadat poptávku | |
| 018 4309_OUT |
C00386200
482000010447 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 019 4309_OUT |
C00413864
482000013809 |
Grid air | Na dotaz | Zadat poptávku | |
| 020 4309_OUT |
C00386249
482000017900 |
Cover top | Na dotaz | Zadat poptávku | |
| 021 4309_OUT |
C00386213
482000092473 |
valve seat | Na dotaz | Zadat poptávku | |
| 022 4309_OUT |
C00505492
481221458214 |
kondenzator | 4 254 Kč
€ 187.00 |
||
| 023 4309_OUT |
C00413862
482000013807 |
Terminal Board DG17S4-03 | Na dotaz | Zadat poptávku | |
| 024 4309_OUT |
C00500750
481221848067 |
Electr.device | Na dotaz | Zadat poptávku | |
| 099 4309_OUT |
C00513363
482000096847 |
Plate | Na dotaz | Zadat poptávku | |
| 099 4309_OUT |
C00627296
488000627296 |
fan | Na dotaz | Zadat poptávku | |
| 099 4309_OUT |
C00632838
488000632838 |
ornamental part | Na dotaz | Zadat poptávku | |
| 099 4309_OUT |
C00632876
488000632876 |
Outdoor Main Control Board Component | Na dotaz | Zadat poptávku | |
