HOT POINT ARISTON SXBHAE 925
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | SXBHAE 925 |
| Kód 12NC: | 869991055430 |
| I.C. kód: | 61055430000 |
| Značka: | HOT POINT ARISTON |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 869991603040 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

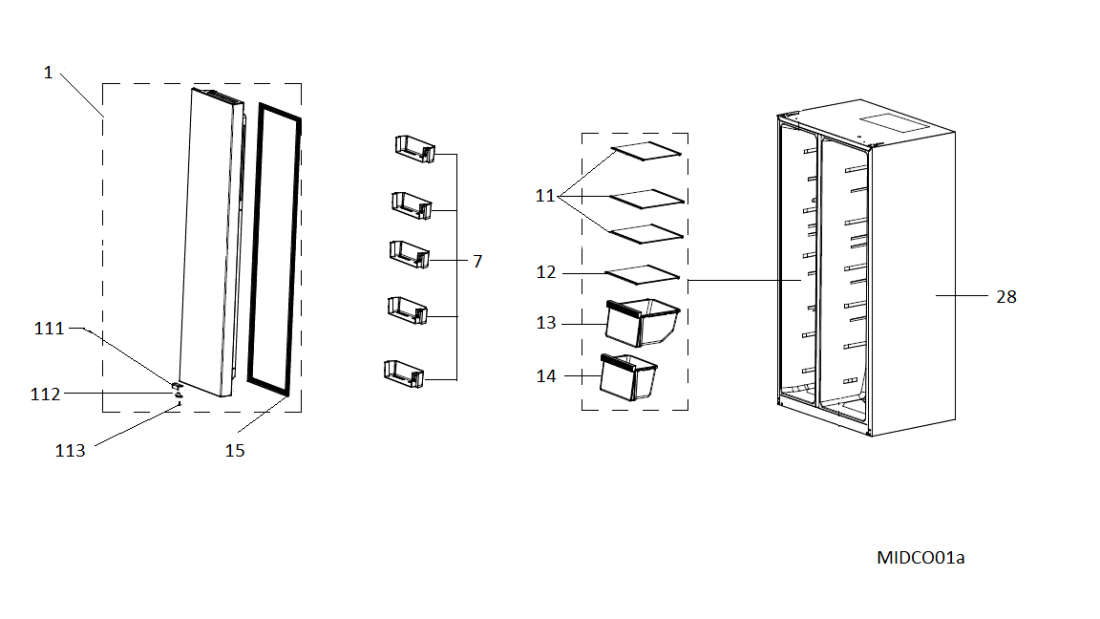

| 001 MIDCO01a |
C00512270
488000512270 |
F SESTAVU DVEŘÍ | Na dotaz | Zadat poptávku | |
| 007 MIDCO01a |
C00512282
488000512282 |
F LARGE TRAY | Na dotaz | Zadat poptávku | |
| 011 MIDCO01a |
C00512290
488000512290 |
GLASS SHELF | Na dotaz | Zadat poptávku | |
| 012 MIDCO01a |
C00512291
488000512291 |
GLASS SHELF | Na dotaz | Zadat poptávku | |
| 013 MIDCO01a |
C00512292
488000512292 |
F HORNÍ ZÁSUVKA | Na dotaz | Zadat poptávku | |
| 014 MIDCO01a |
C00512293
488000512293 |
SUPLIKU SESTAVA | Na dotaz | Zadat poptávku | |
| 015 MIDCO01a |
C00512277
488000512277 |
FREEZER GASKET | Na dotaz | Zadat poptávku | |
| 111 MIDCO01a |
C00512273
488000512273 |
REINFORCEMENT | Na dotaz | Zadat poptávku | |
| 112 MIDCO01a |
C00512274
488000512274 |
DOOR SELF-LOCKING BLOCK | Na dotaz | Zadat poptávku | |
| 113 MIDCO01a |
C00512275
488000512275 |
ŠROUB | Na dotaz | Zadat poptávku | |
| 002 MIDCO02a |
C00512279
488000512279 |
PLASTIC COVER | Na dotaz | Zadat poptávku | |
| 003 MIDCO02a |
C00512280
488000512280 |
MOUNTING BOX | Na dotaz | Zadat poptávku | |
| 004 MIDCO02a |
C00512281
488000512281 |
Display control panel | Na dotaz | Zadat poptávku | |
| 008 MIDCO02a |
C00512283
488000512283 |
REFRIGERATOR DOOR | Na dotaz | Zadat poptávku | |
| 009 MIDCO02a |
C00512288
488000512288 |
R LARGE TRAY | Na dotaz | Zadat poptávku | |
| 010 MIDCO02a |
C00512289
488000512289 |
R SMALL TRAY | Na dotaz | Zadat poptávku | |
| 017 MIDCO02a |
C00512297
488000512297 |
NER.POLICE MONTÁŽ | Na dotaz | Zadat poptávku | |
| 018 MIDCO02a |
C00512299
488000512299 |
NER.POLICE MONTÁŽ | Na dotaz | Zadat poptávku | |
| 019 MIDCO02a |
C00512302
488000512302 |
Fruits and vegetables box component | Na dotaz | Zadat poptávku | |
| 020 MIDCO02a |
C00512304
488000512304 |
Fruits and vegetables box | Na dotaz | Zadat poptávku | |
| 081 MIDCO02a |
C00512284
488000512284 |
DOOR GASKET OF REFRIGERATOR | Na dotaz | Zadat poptávku | |
| 999 MIDCO02a |
C00512285
488000512285 |
END CAP | Na dotaz | Zadat poptávku | |
| 021 MIDCO03 |
C00512306
488000512306 |
AIR DUCT ASSEMBLY OF FREEZER | Na dotaz | Zadat poptávku | |
| 022 MIDCO03 |
C00512338
488000512338 |
VENTILÁTOR MOTOROVé | Na dotaz | Zadat poptávku | |
| 023 MIDCO03 |
C00512353
488000512353 |
AIR DUCT ASSEMBLY OF FREEZER | Na dotaz | Zadat poptávku | |
| 024 MIDCO03 |
C00512365
488000512365 |
Component supplying fin evaporator | Na dotaz | Zadat poptávku | |
| 211 MIDCO03 |
C00512323
488000512323 |
SEAL COVER | Na dotaz | Zadat poptávku | |
| 2110 MIDCO03 |
C00512333
488000512333 |
Damping cushion | Na dotaz | Zadat poptávku | |
| 213 MIDCO03 |
C00512324
488000512324 |
AIR DUCT FRONT PLATE | Na dotaz | Zadat poptávku | |
| 214 MIDCO03 |
C00512325
488000512325 |
SHAPE SPONGE | Na dotaz | Zadat poptávku | |
| 215 MIDCO03 |
C00512334
488000512334 |
FAN | Na dotaz | Zadat poptávku | |
| 216 MIDCO03 |
C00512335
488000512335 |
BACK PLATE OF AIR DUCT | Na dotaz | Zadat poptávku | |
| 217 MIDCO03 |
C00512336
488000512336 |
FIXING CLIP | Na dotaz | Zadat poptávku | |
| 218 MIDCO03 |
C00512337
488000512337 |
Damping cushion | Na dotaz | Zadat poptávku | |
| 231 MIDCO03 |
C00512363
488000512363 |
AIR DUCT FRONT PLATE | Na dotaz | Zadat poptávku | |
| 232 MIDCO03 |
C00512364
488000512364 |
SPONGE | Na dotaz | Zadat poptávku | |
| 241 MIDCO03 |
C00512366
488000512366 |
VERTICAL FIN EVAPORATOR | Na dotaz | Zadat poptávku | |
| 242 MIDCO03 |
C00512367
488000512367 |
FROST HEATER | Na dotaz | Zadat poptávku | |
| 999 MIDCO03 |
C00510589
488000510589 |
temperature sensor | Na dotaz | Zadat poptávku | |
| 101 MIDCO04a |
C00512685
488000512685 |
LEFT GUIDE RAIL | Na dotaz | Zadat poptávku | |
| 102 MIDCO04a |
C00512686
488000512686 |
RIGHT RAIL GUIDE | Na dotaz | Zadat poptávku | |
| 103 MIDCO04a |
C00512687
488000512687 |
ICE BOX COMPONENTS | Na dotaz | Zadat poptávku | |
| 104 MIDCO04a |
C00512688
488000512688 |
Zásubník na led | 432 Kč
€ 17.60 |
||
| 105 MIDCO04a |
C00512689
488000512689 |
EGG TRAY | Na dotaz | Zadat poptávku | |
| 106 MIDCO04a |
C00512690
488000512690 |
R LARGE TRAY | Na dotaz | Zadat poptávku | |
| 107 MIDCO04a |
C00512697
488000512697 |
F SMALL TRAY | Na dotaz | Zadat poptávku | |
| 015 MIDCO05 |
C00512295
488000512295 |
LED PROJEKČNÍ LAMPY | Na dotaz | Zadat poptávku | |
| 016 MIDCO05 |
C00512296
488000512296 |
KRYT LAMPY | Na dotaz | Zadat poptávku | |
| 025 MIDCO05 |
C00512368
488000512368 |
BOX COVER | Na dotaz | Zadat poptávku | |
| 026 MIDCO05 |
C00512369
488000512369 |
LOWER HINGE ADJUST FEET ASSEMBLY | Na dotaz | Zadat poptávku | |
| 027 MIDCO05 |
C00512375
488000512375 |
LOWER HINGE ASSEMBLY | Na dotaz | Zadat poptávku | |
| 030 MIDCO05 |
C00512403
488000512403 |
SCREW | Na dotaz | Zadat poptávku | |
| 031 MIDCO05 |
C00512404
488000512404 |
SWITCH | Na dotaz | Zadat poptávku | |
| 032 MIDCO05 |
C00512405
488000512405 |
HINGE COVER ASSEMBLY | Na dotaz | Zadat poptávku | |
| 034 MIDCO05 |
C00512409
488000512409 |
HINGE COVER ASSEMBLY | Na dotaz | Zadat poptávku | |
| 035 MIDCO05 |
C00512410
488000512410 |
UPPER HINGE ASSEMBLY | Na dotaz | Zadat poptávku | |
| 036 MIDCO05 |
C00512411
488000512411 |
MAIN CONTROL BOARD | Na dotaz | Zadat poptávku | |
| 037 MIDCO05 |
C00512412
488000512412 |
AIR DUCT COMPONENTS OF REFRIGERATOR | Na dotaz | Zadat poptávku | |
| 039 MIDCO05 |
C00512427
488000512427 |
ELECTRIC DAMPER | Na dotaz | Zadat poptávku | |
| 051 MIDCO05 |
C00512680
488000512680 |
DRAWER STOPPER RH | Na dotaz | Zadat poptávku | |
| 052 MIDCO05 |
C00512681
488000512681 |
DRAWER STOPPER LH | Na dotaz | Zadat poptávku | |
| 261 MIDCO05 |
C00512370
488000512370 |
DOOR SELF-LOCKING | Na dotaz | Zadat poptávku | |
| 262,272 MIDCO05 |
C00512372
488000512372 |
DOOR SELF-LOCKING BLOCK | Na dotaz | Zadat poptávku | |
| 263 MIDCO05 |
C00512373
488000512373 |
LOWER HINGE | Na dotaz | Zadat poptávku | |
| 264,274 MIDCO05 |
C00512374
488000512374 |
LEVELLING FEET | Na dotaz | Zadat poptávku | |
| 271 MIDCO05 |
C00512377
488000512377 |
DOOR SELF-LOCKING | Na dotaz | Zadat poptávku | |
| 273 MIDCO05 |
C00512378
488000512378 |
LOWER HINGE | Na dotaz | Zadat poptávku | |
| 371 MIDCO05 |
C00512413
488000512413 |
AIR DUCT BLOCK | Na dotaz | Zadat poptávku | |
| 372 MIDCO05 |
C00512424
488000512424 |
AIR DUCT FRONT PLATE | Na dotaz | Zadat poptávku | |
| 373 MIDCO05 |
C00512425
488000512425 |
AIR DUCT FOAMING OF REFRIGERATOR | Na dotaz | Zadat poptávku | |
| 374 MIDCO05 |
C00512426
488000512426 |
SPONGE SEAL RING | Na dotaz | Zadat poptávku | |
| 999 MIDCO05 |
C00512380
488000512380 |
UPPER HINGE | Na dotaz | Zadat poptávku | |
| 033 MIDCO06 |
C00512406
488000512406 |
MAIN CONTROL BOARD MOUNTING BOX | Na dotaz | Zadat poptávku | |
| 040 MIDCO06 |
C00512428
488000512428 |
COMPRESSOR MOUNTING PANEL | Na dotaz | Zadat poptávku | |
| 041 MIDCO06 |
C00512431
488000512431 |
PIPE CONNECTOR | Na dotaz | Zadat poptávku | |
| 042 MIDCO06 |
C00512447
488000512447 |
DRY FILTER | Na dotaz | Zadat poptávku | |
| 043 MIDCO06 |
C00512449
488000512449 |
PIPE CONNECTOR | Na dotaz | Zadat poptávku | |
| 044 MIDCO06 |
C00512671
488000512671 |
DRAIN PIPE | Na dotaz | Zadat poptávku | |
| 045 MIDCO06 |
C00512672
488000512672 |
COMPRESSOR ASSEMBLY | Na dotaz | Zadat poptávku | |
| 046 MIDCO06 |
C00512676
488000512676 |
PROCESS TUBE | Na dotaz | Zadat poptávku | |
| 047 MIDCO06 |
C00512677
488000512677 |
CAPACITOR | Na dotaz | Zadat poptávku | |
| 048 MIDCO06 |
C00512678
488000512678 |
POWER CORD | Na dotaz | Zadat poptávku | |
| 050 MIDCO06 |
C00512679
488000512679 |
COMPRESSOR BACK COVER | Na dotaz | Zadat poptávku | |
| 053 MIDCO06 |
C00512682
488000512682 |
DRAIN TRAY | Na dotaz | Zadat poptávku | |
| 054 MIDCO06 |
C00512683
488000512683 |
MOUNTING BOX | Na dotaz | Zadat poptávku | |
| 055 MIDCO06 |
C00512684
488000512684 |
MOUNTING BOX | Na dotaz | Zadat poptávku | |
| 331 MIDCO06 |
C00512407
488000512407 |
BOX COVER | Na dotaz | Zadat poptávku | |
| 332 MIDCO06 |
C00512408
488000512408 |
REINFORCEMENT | Na dotaz | Zadat poptávku | |
| 401 MIDCO06 |
C00512429
488000512429 |
DRAIN TRAY | Na dotaz | Zadat poptávku | |
| 402 MIDCO06 |
C00512430
488000512430 |
COMPRESSOR MOUNTING PANEL | Na dotaz | Zadat poptávku | |
| 411 MIDCO06 |
C00512432
488000512432 |
INSULATING TUBE | Na dotaz | Zadat poptávku | |
| 412 MIDCO06 |
C00512438
488000512438 |
SUCTION CONNECTION TUBE | Na dotaz | Zadat poptávku | |
| 431 MIDCO06 |
C00512669
488000512669 |
VENTING CONNECTION TUBE | Na dotaz | Zadat poptávku | |
| 432 MIDCO06 |
C00512670
488000512670 |
RUBBER BLOCK | Na dotaz | Zadat poptávku | |
| 451 MIDCO06 |
C00512673
488000512673 |
STARTER | Na dotaz | Zadat poptávku | |
| 452 MIDCO06 |
C00512674
488000512674 |
PROTECTOR | Na dotaz | Zadat poptávku | |
| 453 MIDCO06 |
C00512675
488000512675 |
ELECTRICAL COVER | Na dotaz | Zadat poptávku | |
| 999 MIDCO06 |
C00627738
488000627738 |
compressor kit and inverter boards | Na dotaz | Zadat poptávku | |
