IGNIS TA 151 IG
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | TA 151 IG |
| Kód 12NC: | 850348001000 |
| Značka: | IGNIS |
| Typ produktu: | Volně stojící lednice |
Potřebujete servis? Jsme tady pro Vás

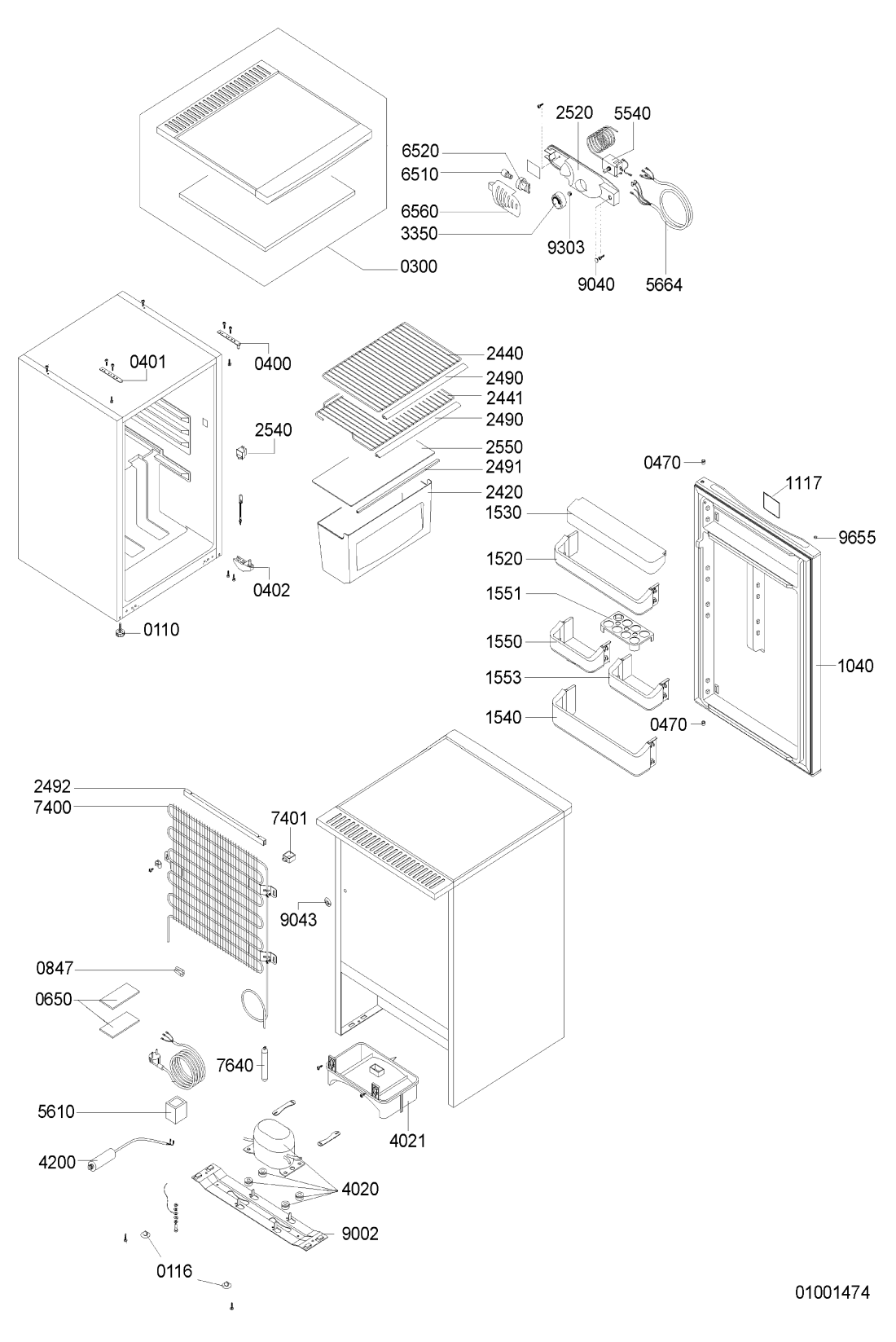

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR77610 |
C00330456
481246218273 |
noha nastavitelna | 211 Kč
€ 9.30 |
||
| 011 6 WHR77610 |
C00330457
481246218276 |
Foot | Na dotaz | Zadat poptávku | |
| 030 0 WHR77610 |
C00491739
481244011208 |
Table top | Na dotaz | Zadat poptávku | |
| 040 0 WHR77610 |
C00329732
481241719313 |
Hinge upper right | Na dotaz | Zadat poptávku | |
| 040 1 WHR77610 |
C00329733
481241719314 |
Hinge upper left | Na dotaz | Zadat poptávku | |
| 040 2 WHR77610 |
C00329734
481241719315 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 047 0 WHR77610 |
C00312732
481244688154 |
Bushing | Na dotaz | Zadat poptávku | |
| 065 0 WHR77610 |
C00330785
481246348012 |
Buffer piece | Na dotaz | Zadat poptávku | |
| 084 7 WHR77610 |
C00330791
481246368025 |
Resonator | Na dotaz | Zadat poptávku | |
| 104 0 WHR77610 |
C00496784
481241619679 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 111 7 WHR77610 |
C00319169
481245918241 |
Nameplate IGNIS | Na dotaz | Zadat poptávku | |
| 152 0 WHR77610 |
C00489083
481241848774 |
Door dairy | Na dotaz | Zadat poptávku | |
| 153 0 WHR77610 |
C00495078
481241828787 |
Cover crisper | Na dotaz | Zadat poptávku | |
| 154 0 WHR77610 |
C00513791
481241848775 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 155 0 WHR77610 |
C00491690
481241848776 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 155 1 WHR77610 |
C00636316
481241828788 |
Egg trim | Na dotaz | Zadat poptávku | |
| 155 3 WHR77610 |
C00491691
481241848777 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 242 0 WHR77610 |
C00489092
481241870004 |
Crisper | Na dotaz | Zadat poptávku | |
| 244 0 WHR77610 |
C00487640
481245819283 |
Grid | Na dotaz | Zadat poptávku | |
| 244 1 WHR77610 |
C00330073
481245819284 |
Grid | Na dotaz | Zadat poptávku | |
| 249 0 WHR77610 |
C00330295
481246049585 |
Trim grid | Na dotaz | Zadat poptávku | |
| 249 1 WHR77610 |
C00330296
481246049586 |
Trim glass shelf | Na dotaz | Zadat poptávku | |
| 249 2 WHR77610 |
C00330297
481246049587 |
Trim condenser | Na dotaz | Zadat poptávku | |
| 252 0 WHR77610 |
C00328332
481244079158 |
Casing thermostat | Na dotaz | Zadat poptávku | |
| 254 0 WHR77610 |
C00329453
481241279137 |
spinac | 810 Kč
€ 35.60 |
||
| 255 0 WHR77610 |
C00485370
481245088297 |
Cover plate crisper | Na dotaz | Zadat poptávku | |
| 335 0 WHR77610 |
C00317787
481241458279 |
Knoflík termostatu | 206 Kč
€ 9.10 |
||
| 402 0 WHR77610 |
C00328571
481236038955 |
Compressor THG 1330 MJS | Na dotaz | Zadat poptávku | |
| 402 1 WHR77610 |
C00327879
481241870005 |
Tray compressor | Na dotaz | Zadat poptávku | |
| 420 0 WHR77610 |
C00326765
481212108245 |
Capacitor 2#F 400V P2-M8 | Na dotaz | Zadat poptávku | |
| 554 0 WHR77610 |
C00313700
481228208655 |
termostat | 1 831 Kč
€ 80.50 |
||
| 561 0 WHR77610 |
C00327574
481228268042 |
Protect motor | Na dotaz | Zadat poptávku | |
| 566 4 WHR77610 |
C00328483
481232058166 |
Cable harness thermostat | Na dotaz | Zadat poptávku | |
| 651 0 WHR77610 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR77610 |
C00327125
481225518278 |
Holder lamp E14 | Na dotaz | Zadat poptávku | |
| 656 0 WHR77610 |
C00330535
481246228694 |
kryt | 559 Kč
€ 24.60 |
||
| 740 0 WHR77610 |
C00332245
481251148394 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 1 WHR77610 |
C00329055
481240448941 |
Spacer | Na dotaz | Zadat poptávku | |
| 764 0 WHR77610 |
C00345844
481248028099 |
Dryer XH9 7.5GR SERVICE | Na dotaz | Zadat poptávku | |
| 900 2 WHR77610 |
C00330298
481246049588 |
Base compressor | Na dotaz | Zadat poptávku | |
| 904 0 WHR77610 |
C00327204
481226278023 |
Cap | Na dotaz | Zadat poptávku | |
| 904 3 WHR77610 |
C00329057
481240448969 |
Clamp fixation | Na dotaz | Zadat poptávku | |
| 930 3 WHR77610 |
C00345850
481249258054 |
Knob thermostat spring | Na dotaz | Zadat poptávku | |
| 965 5 WHR77610 |
C00327082
481222608028 |
Krytka/záslepka | 122 Kč
€ 5.40 |
||
| 999 WHR77610 |
C00705037 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
