WHIRLPOOL TDLR 60230
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | TDLR 60230 |
| Kód 12NC: | 859334410050 |
| I.C. kód: | 61012950000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 759334410050, 859334410050, 759330729050, 859330729050, 759333310050, 859333310050, 759330003051, 859330003051, 759331461050, 859331461050 |
Potřebujete servis? Jsme tady pro Vás

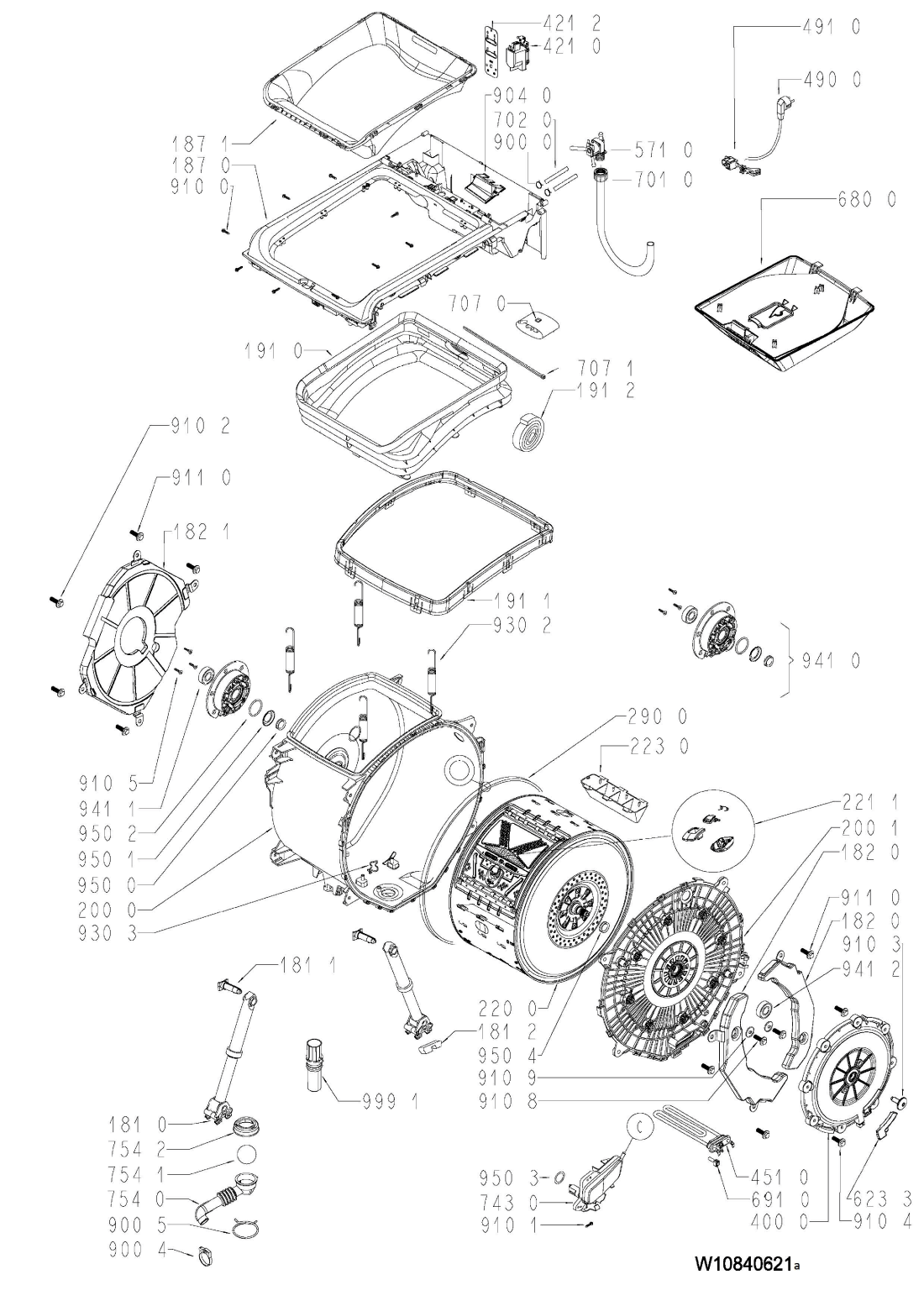

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 1300 W10840621a |
C00309487
482000089817 |
DOOR LOCK WITH CABLE | Na dotaz | Zadat poptávku | |
| 1311 W10840621a |
C00309401
481010444928 |
Pružina | 86 Kč
€ 3.80 |
||
| 1810 W10840621a |
C00309362
481252918043 |
Tlumič nárazů pračky Whirlpool | 139 Kč
€ 6.10 |
||
| 1811 W10840621a |
C00309396
480110100803 |
Čep tlumiče | 556 Kč
€ 24.40 |
||
| 1812 W10840621a |
C00314527
481240118412 |
pojistka tlumice | 544 Kč
€ 23.90 |
||
| 1820 W10840621a |
C00428174
480111104683 |
Counter weight | Na dotaz | Zadat poptávku | |
| 1821 W10840621a |
C00384715
481010772151 |
Counter weight opposite drive side | Na dotaz | Zadat poptávku | |
| 1870 W10840621a |
C00377138
481010403204 |
Rám pračky-náhrada C00731678 | 1 292 Kč
€ 56.80 |
||
| 1871 W10840621a |
C00309425
481010422667 |
Hrdlo nádrže | 553 Kč
€ 24.30 |
||
| 1910 W10840621a |
C00377143
481010410453 |
Těsnění dveří pračky (TVO) | 1 550 Kč
€ 68.10 |
||
| 1911 W10840621a |
C00309459
481010410280 |
spona náhrada C00520688 | Na dotaz | Zadat poptávku | |
| 1912 W10840621a |
C00316017
481246688703 |
tmel tesnici Allianc | Na dotaz | Zadat poptávku | |
| 2000 W10840621a |
C00377272
481010555527 |
nádrž | 3 325 Kč
€ 146.20 |
||
| 2001 W10840621a |
C00376791
480111104687 |
Bočnice nádrže ZEN | 3 397 Kč
€ 149.30 |
||
| 2030 W10840621a |
C00338707
481231018457 |
Insulation front | Na dotaz | Zadat poptávku | |
| 2200 W10840621a |
C00380540
481010538157 |
buben-náhrada 481010897309 | Na dotaz | Zadat poptávku | |
| 2211 W10840621a |
C00377380
481073593541 |
Uzávěr bubnu vrchem plněné pračky | 94 Kč
€ 4.10 |
||
| 2230 W10840621a |
C00309468
482000089812 |
DRUM LIFTER LOW | Na dotaz | Zadat poptávku | |
| 2900 W10840621a |
C00309469
488000309469 |
GASKET | Na dotaz | Zadat poptávku | |
| 4000 W10840621a |
C00377203
481010485263 |
motor | 4 482 Kč
€ 197.00 |
||
| 4210 W10840621a |
C00314577
481010503697 |
Odrušovací filtr pračky Whirlpool, Indesit, Ignis | 456 Kč
€ 20.00 |
||
| 4212 W10840621a |
C00309495 | HOLDER RFI | Na dotaz | Zadat poptávku | |
| 4510 W10840621a |
C00311129
481010645279 |
Topné těleso pračky s poniklovaným povrchem 2050 W 481010645279,Whirlpool,Indesit,Ignis | 299 Kč
€ 13.10 |
||
| 4900 W10840621a |
C00387534
481010728769 |
Mains cable | Na dotaz | Zadat poptávku | |
| 4910 W10840621a |
C00313305
488000313305 |
Strain relief | Na dotaz | Zadat poptávku | |
| 5000 W10840621a |
C00374759
480111104691 |
Regulátor motoru 691 | 5 249 Kč
€ 230.70 |
||
| 5710 W10840621a |
C00309452
482000032570 |
VALVE MAGNET 1 INLET, 2 OUTLETS | Na dotaz | Zadat poptávku | |
| 6233 W10840621a |
C00376795
480111104696 |
senzor | 1 592 Kč
€ 70.00 |
||
| 6800 W10840621a |
C00324273
481010424468 |
Násypka vrchem plněné pračky Whirlpool, Indesit 481010424468 | 1 899 Kč
€ 83.50 |
||
| 6910 W10840621a |
C00313117
481228219485 |
senzor NTC | 679 Kč
€ 29.80 |
||
| 7010 W10840621a |
C00386763
481010802245 |
Hose inlet MECH AQUA-COLD-1,2M | Na dotaz | Zadat poptávku | |
| 7020 W10840621a |
C00309480
481253029453 |
hadice | Na dotaz | Zadat poptávku | |
| 7070 W10840621a |
C00309397
482000089798 |
NOZZLE BOX CPL. | Na dotaz | Zadat poptávku | |
| 7071 W10840621a |
C00309493 | CLAMP F. NOZZLE BOX | Na dotaz | Zadat poptávku | |
| 7430 W10840621a |
C00309366 | CHAMBER AIR | Na dotaz | Zadat poptávku | |
| 7540 W10840621a |
C00332430
481253029267 |
Hadice nádrž - čerpadlo pračky Whirlpool, Indesit, Bauknecht | 727 Kč
€ 32.00 |
||
| 7541 W10840621a |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 103 Kč
€ 48.50 |
||
| 7542 W10840621a |
C00332452
481253029352 |
Příruba eco AWT,AWO/D | 539 Kč
€ 23.70 |
||
| 7552 W10840621a |
C00309498
481253029462 |
hadice odparovaci | 370 Kč
€ 16.30 |
||
| 7553 W10840621a |
C00332479 | Cover exhaust hose | Na dotaz | Zadat poptávku | |
| 9000 W10840621a |
C00328906
481240118628 |
Clamp hose 15,5 mm | Na dotaz | Zadat poptávku | |
| 9005 W10840621a |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 189 Kč
€ 8.30 |
||
| 9040 W10840621a |
C00309494
481228118069 |
kryt | 125 Kč
€ 5.50 |
||
| 9102 W10840621a |
C00309516
480110100801 |
Šroub M8x18 | 133 Kč
€ 5.80 |
||
| 9103 W10840621a |
C00309517
480111104699 |
Šroub řemenice | 261 Kč
€ 11.50 |
||
| 9104 W10840621a |
C00428178
480111104698 |
Screw 8x23 | 175 Kč
€ 7.70 |
||
| 9105 W10840621a |
C00318381
481250218423 |
Šroub PT 7x15 | 126 Kč
€ 5.50 |
||
| 9108 W10840621a |
C00428177
480111104697 |
Screw 8x28 | Na dotaz | Zadat poptávku | |
| 9109 W10840621a |
C00428179
480111104701 |
Washer 8.4x25x2 | Na dotaz | Zadat poptávku | |
| 9110 W10840621a |
C00309518
481250218828 |
Šroub | 248 Kč
€ 10.90 |
||
| 9302 W10840621a |
C00309403 | SPRING | Na dotaz | Zadat poptávku | |
| 9303 W10840621a |
C00316658
488000316658 |
Clamp heatingelement | Na dotaz | Zadat poptávku | |
| 9410 W10840621a |
C00312160
481231019144 |
Ložisko AWT - sestava, plast | 248 Kč
€ 10.90 |
||
| 9411 W10840621a |
C00315098
481252028002 |
Ložisko 6203 SKF 2Z C3 | 291 Kč
€ 12.80 |
||
| 9412 W10840621a |
C00376796
480111104702 |
Ložisko 6004-2Z SKF | 179 Kč
€ 7.90 |
||
| 9500 W10840621a |
C00385551
481010777092 |
tesneni bubnu VA 22 | 629 Kč
€ 27.60 |
||
| 9501 W10840621a |
C00315493 | Ring counterface | Na dotaz | Zadat poptávku | |
| 9502 W10840621a |
C00317487
488000317487 |
O-Ring 35x3 NBR | Na dotaz | Zadat poptávku | |
| 9503 W10840621a |
C00309464
481010395017 |
Těsnění | 422 Kč
€ 18.50 |
||
| 9504 W10840621a |
C00376797
480111104703 |
gufero | 414 Kč
€ 18.20 |
||
| 9991 W10840621a |
C00317886
481240018048 |
kolik plast | 290 Kč
€ 12.70 |
||
| 1001 W10883400 |
C00327971
481244010842 |
Kryt dveří pračky AWT | Na dotaz | Zadat poptávku | |
| 1003 W10883400 |
C00377171 | Lid inner Boston | Na dotaz | Zadat poptávku | |
| 1040 W10883400 |
C00446909
481010771228 |
Dveře pračky pro vrchem plněné pračky Whilrpool | 1 993 Kč
€ 87.60 |
||
| 1104 W10883400 |
C00446904
481010771219 |
Rukojeť dveří pračky | 2 037 Kč
€ 89.50 |
||
| 1310 W10883400 |
C00309361
481010444947 |
hak uzaveru dveri | 90 Kč
€ 4.00 |
||
| 1600 W10883400 |
C00309423
482000089803 |
FRONT PANEL WH GW | Na dotaz | Zadat poptávku | |
| 1601 W10883400 |
C00309490
482000089819 |
FLAP ROUND GW | Na dotaz | Zadat poptávku | |
| 1602 W10883400 |
C00309370 | HINGE FLAP GW | Na dotaz | Zadat poptávku | |
| 1610 W10883400 |
C00376787
480111104682 |
Rear panel | Na dotaz | Zadat poptávku | |
| 1620 W10883400 |
C00309472
482000089814 |
SIDE PANEL RIGHT GW | Na dotaz | Zadat poptávku | |
| 1621 W10883400 |
C00327970
481244010841 |
stena bocni leva GW | 3 441 Kč
€ 151.30 |
||
| 1840 W10883400 |
C00309420
488000309420 |
DRIP TRAY ASSY | Na dotaz | Zadat poptávku | |
| 1850 W10883400 |
C00313162
481246248054 |
Noha pračky přední | 597 Kč
€ 26.20 |
||
| 1851 W10883400 |
C00309407
481252878075 |
Noha pračky zadní | 394 Kč
€ 17.30 |
||
| 1852 W10883400 |
C00327327
481231018497 |
Podvozek výsuvný | 554 Kč
€ 24.40 |
||
| 1880 W10883400 |
C00309369 | HINGE BOLT LID GW | Na dotaz | Zadat poptávku | |
| 3010 W10883400 |
C00447836
481010822737 |
Control panel | Na dotaz | Zadat poptávku | |
| 3012 W10883400 |
C00446759
481010765238 |
Držák modulu | 533 Kč
€ 23.40 |
||
| 3310 W10883400 |
C00446998
481010774758 |
Knob timer BLK, WP, 15 | Na dotaz | Zadat poptávku | |
| 3312 W10883400 |
C00309404 | SPRING KNOB TIMER | Na dotaz | Zadat poptávku | |
| 3314 W10883400 |
C00448027
481010840151 |
Ring Button | Na dotaz | Zadat poptávku | |
| 3320 W10883400 |
C00446982
481010774455 |
Button assy left, TL-R, PREM, 15 | Na dotaz | Zadat poptávku | |
| 3321 W10883400 |
C00446984
481010774640 |
Button assy Opt., PREM,TL-R, 15 | Na dotaz | Zadat poptávku | |
| 3321 W10883400 |
C00448022
481010840102 |
Button Start | Na dotaz | Zadat poptávku | |
| 3322 W10883400 |
C00446987
481010774687 |
Button assy Opt., PREM,TL-R, 15 | Na dotaz | Zadat poptávku | |
| 3430 W10883400 |
C00313008
481071425741 |
kryt displeje | 1 581 Kč
€ 69.50 |
||
| 3500 W10883400 |
C00310126
482000089841 |
MODULE E8/5D/GRN | Na dotaz | Zadat poptávku | |
| 3510 W10883400 |
C00446721
481010764089 |
Light guide Prog. Flow, TL-R, 15 | Na dotaz | Zadat poptávku | |
| 3511 W10883400 |
C00446799
481010768256 |
Light guide left, TL-R, 15 | Na dotaz | Zadat poptávku | |
| 3512 W10883400 |
C00446798
481010768255 |
Light guide Start, TL-R, 15 | Na dotaz | Zadat poptávku | |
| 3513 W10883400 |
C00446722
481010764149 |
Light guide BD, TL-R, E8, 15 | Na dotaz | Zadat poptávku | |
| 3514 W10883400 |
C00317992
481071425711 |
svetlovod | 236 Kč
€ 10.40 |
||
| 4300 W10883400 |
C00319033
481073071153 |
Čerpadlo vypouštěcí pračky Whirlpool 481073071153 | 1 611 Kč
€ 70.80 |
||
| 5210 W10883400 |
C00447558
481010805206 |
Control unit WAVE ECO, progr. | Na dotaz | Zadat poptávku | |
| 5810 W10883400 |
C00311217
481227128554 |
Presostat pračky | 208 Kč
€ 9.10 |
||
| 7630 W10883400 |
C00314663
481248058403 |
Filtr čerpadla pračky Whirlpool, Indesit AWE , TDLR | 199 Kč
€ 8.70 |
||
| 7630 W10883400 |
C00470576
484000000966 |
Filtr čerpadla pračky Whirlpool AWT nový typ sada | 336 Kč
€ 14.80 |
||
| 7810 W10883400 |
C00309503
482000089821 |
HOSE DRAINING | Na dotaz | Zadat poptávku | |
| 7830 W10883400 |
C00332431
481253029268 |
Hadice k presostatu pračky Whirlpool, Bauknecht, Indesit | 182 Kč
€ 8.00 |
||
| 9001 W10883400 |
C00309466 | CLAMP HOSE | Na dotaz | Zadat poptávku | |
| 9004 W10883400 |
C00328873
481240118431 |
Spona hadice cerpadl | 329 Kč
€ 14.50 |
||
| 9009 W10883400 |
C00327131
488000327131 |
Holder hose | Na dotaz | Zadat poptávku | |
| 9041 W10883400 |
C00309419
481246279974 |
zaslepka | 164 Kč
€ 7.20 |
||
| 9100 W10883400 |
C00309514 | SCREW,SELFTAP 3,5X14 | Na dotaz | Zadat poptávku | |
| 9101 W10883400 |
C00309512 | SCREW 4X14 | Na dotaz | Zadat poptávku | |
| 9301 W10883400 |
C00318211
481249248171 |
Pružiny dveří - torzní (sada) | 181 Kč
€ 8.00 |
||
| 9930 W10883400 |
C00309434
482000089806 |
U CURVE FOR OUTLET HOSE | Na dotaz | Zadat poptávku | |
