BAUKNECHT TRA 4060 LI Multi DRYER BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | TRA 4060 LI Multi DRYER BK |
| Kód 12NC/I.C. kód: | 856820116070 |
| Značka: | BAUKNECHT |
| Typ produktu: | Sušičky |
Potřebujete servis? Jsme tady pro Vás

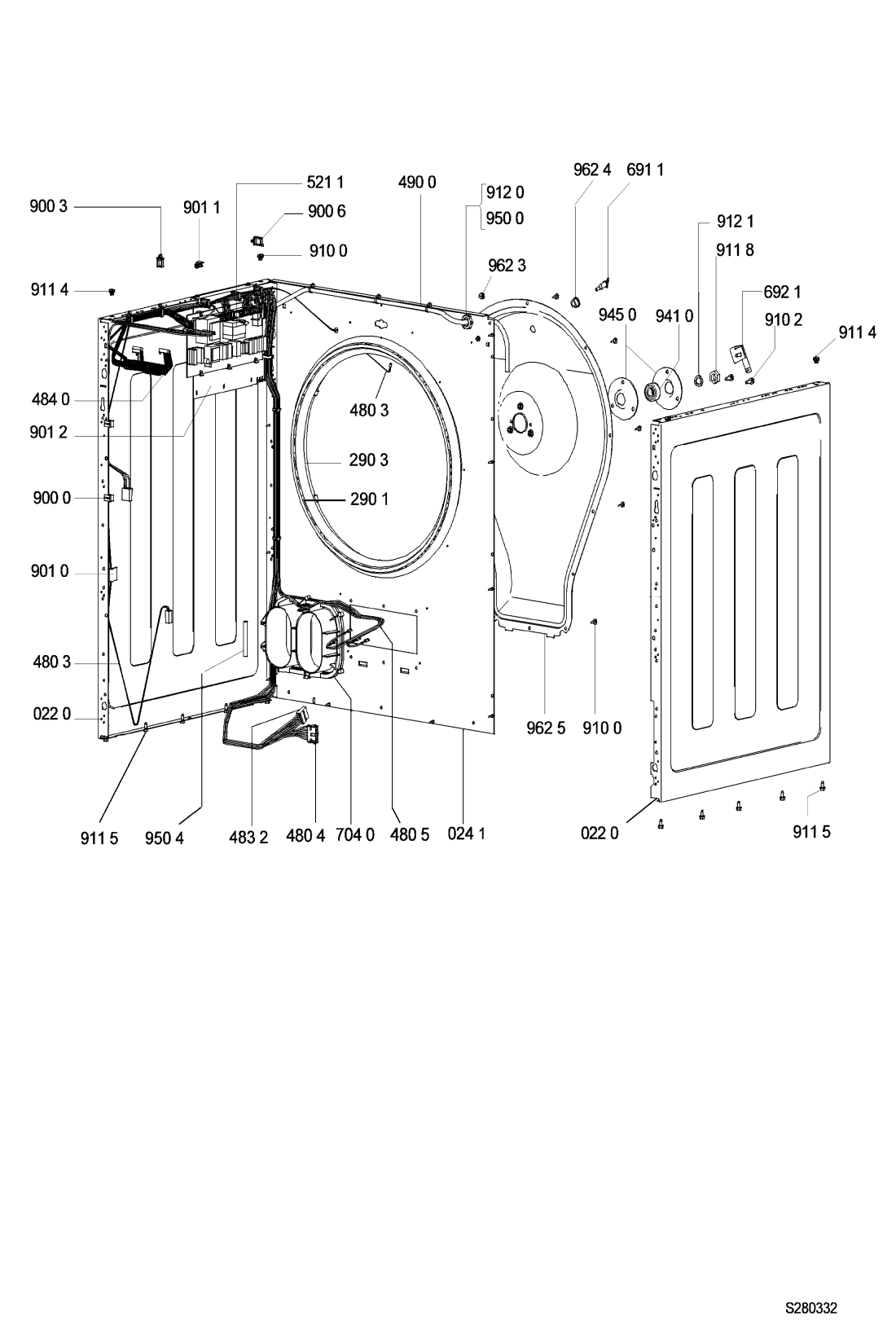

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0030 WHR50986 |
C00621441
481246428019 |
Crossbar | Na dotaz | Zadat poptávku | |
| 0040 WHR50986 |
C00500833
481244010528 |
Plate bottom cpl. | Na dotaz | Zadat poptávku | |
| 0110 WHR50986 |
C00594456
481246218212 |
Foot. | Na dotaz | Zadat poptávku | |
| 0122 WHR50986 |
C00500373
481252878058 |
Holder wheels | Na dotaz | Zadat poptávku | |
| 0210 WHR50986 |
C00594248
481244010529 |
Front cpl.. | Na dotaz | Zadat poptávku | |
| 0220 WHR50986 |
C00527937
481244010531 |
Side panel left/right | Na dotaz | Zadat poptávku | |
| 0240 WHR50986 |
C00500834
481244010532 |
Panel rear | Na dotaz | Zadat poptávku | |
| 0241 WHR50986 |
C00594250
481244010546 |
PANEL ZADNY | Na dotaz | Zadat poptávku | |
| 0250 WHR50986 |
C00594177
481240478473 |
Holder controlpanel. | Na dotaz | Zadat poptávku | |
| 0300 WHR50986 |
C00594246
481244010526 |
Table top white. | Na dotaz | Zadat poptávku | |
| 0401 WHR50986 |
C00621399
481241719034 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 0402 WHR50986 |
C00488950
481241719033 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 0403 WHR50986 |
C00499786
481240478472 |
Plate | Na dotaz | Zadat poptávku | |
| 0471 WHR50986 |
C00492838
481990800408 |
Bushing | Na dotaz | Zadat poptávku | |
| 1030 WHR50986 |
C00594286
481244218025 |
Door. | Na dotaz | Zadat poptávku | |
| 1200 WHR50986 |
C00594247
481244010527 |
Door inner. | Na dotaz | Zadat poptávku | |
| 1300 WHR50986 |
C00491035
481227138431 |
Door lock | Na dotaz | Zadat poptávku | |
| 1301 WHR50986 |
C00621438
481246228321 |
Cover | Na dotaz | Zadat poptávku | |
| 1330 WHR50986 |
C00488991
481241728077 |
Door latch | Na dotaz | Zadat poptávku | |
| 1331 WHR50986 |
C00484930
481241728076 |
Cover door hook | Na dotaz | Zadat poptávku | |
| 1910 WHR50986 |
C00486157
481246668839 |
Gasket door | Na dotaz | Zadat poptávku | |
| 1911 WHR50986 |
C00621619
481990800416 |
Gasket. | Na dotaz | Zadat poptávku | |
| 1912 WHR50986 |
C00529755
481246668704 |
Gasket, door botton,sieve | Na dotaz | Zadat poptávku | |
| 2200 WHR50986 |
C00527837
481241818367 |
Drum cpl | Na dotaz | Zadat poptávku | |
| 2230 WHR50986 |
C00494982
481990800423 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 2710 WHR50986 |
C00377570
481235818179 |
BELT PV 2210 J6 | Na dotaz | Zadat poptávku | |
| 2901 WHR50986 |
C00486972
481990800478 |
Gasket rear | Na dotaz | Zadat poptávku | |
| 2903 WHR50986 |
C00495325
481990800479 |
Gasket | Na dotaz | Zadat poptávku | |
| 2910 WHR50986 |
C00621621
481990800426 |
Gasket. | Na dotaz | Zadat poptávku | |
| 2911 WHR50986 |
C00621507
481253298014 |
Insulator Ring | Na dotaz | Zadat poptávku | |
| 3010 WHR50986 |
C00594312
481245211073 |
Control panel. | Na dotaz | Zadat poptávku | |
| 3210 WHR50986 |
C00594313
481245211074 |
Insert TRA4060 Multi. | Na dotaz | Zadat poptávku | |
| 4000 WHR50986 |
C00409119
482000005059 |
Motor temp. control | Na dotaz | Zadat poptávku | |
| 4000 WHR50986 |
C00488648
481236118336 |
Motor | Na dotaz | Zadat poptávku | |
| 4001 WHR50986 |
C00621377
481240418292 |
Hoop motor | Na dotaz | Zadat poptávku | |
| 4400 WHR50986 |
C00484747
481236118335 |
Blower Motor | Na dotaz | Zadat poptávku | |
| 4560 WHR50986 |
C00594137
481225948146 |
Heating element 4500W/400V. | Na dotaz | Zadat poptávku | |
| 4801 WHR50986 |
C00621355
481232178116 |
Cable blower motor | Na dotaz | Zadat poptávku | |
| 4802 WHR50986 |
C00621356
481232178117 |
Cable Motor | Na dotaz | Zadat poptávku | |
| 4803 WHR50986 |
C00493192
481232178122 |
Cable harness Sensor | Na dotaz | Zadat poptávku | |
| 4804 WHR50986 |
C00493191
481232178121 |
Cable harness Motor | Na dotaz | Zadat poptávku | |
| 4805 WHR50986 |
C00493194
481232178124 |
Cable harness Heating | Na dotaz | Zadat poptávku | |
| 4830 WHR50986 |
C00499778
481232178118 |
Cable harness | Na dotaz | Zadat poptávku | |
| 4832 WHR50986 |
C00493190
481232178119 |
Cable harness Blower-door switch | Na dotaz | Zadat poptávku | |
| 4840 WHR50986 |
C00493193
481232178123 |
Cable 16-Pol | Na dotaz | Zadat poptávku | |
| 4900 WHR50986 |
C00493139
481232118157 |
Cable mains 2.7 m | Na dotaz | Zadat poptávku | |
| 6200 WHR50986 |
C00621314
481221478699 |
CONTROL UNIT. | Na dotaz | Zadat poptávku | |
| 6910 WHR50986 |
C00491373
481228268025 |
Feeler NTC | Na dotaz | Zadat poptávku | |
| 6911 WHR50986 |
C00610496
481223708011 |
Feeler NTC-Temp.. | Na dotaz | Zadat poptávku | |
| 6920 WHR50986 |
C00490956
481223708009 |
Feeler | Na dotaz | Zadat poptávku | |
| 6921 WHR50986 |
C00490957
481223708012 |
Feeler humidity, rear | Na dotaz | Zadat poptávku | |
| 7040 WHR50986 |
C00594462
481246658015 |
Gasket. | Na dotaz | Zadat poptávku | |
| 7430 WHR50986 |
C00493764
481253048363 |
Heating chamber cpl. | Na dotaz | Zadat poptávku | |
| 7431 WHR50986 |
C00529933
481253048364 |
Air guide long | Na dotaz | Zadat poptávku | |
| 7610 WHR50986 |
C00496060
481248058128 |
Filter cpl | Na dotaz | Zadat poptávku | |
| 7611 WHR50986 |
C00548232
481990800456 |
Filter. | Na dotaz | Zadat poptávku | |
| 7612 WHR50986 |
C00493459
481241078122 |
Button Filter | Na dotaz | Zadat poptávku | |
| 7613 WHR50986 |
C00594463
481248088017 |
Sieve cover. | Na dotaz | Zadat poptávku | |
| 7920 WHR50986 |
C00486186
481246698993 |
Gasket | Na dotaz | Zadat poptávku | |
| 7921 WHR50986 |
C00486187
481246698994 |
Gasket heat.chamber-rear panel | Na dotaz | Zadat poptávku | |
| 7922 WHR50986 |
C00621452
481246698996 |
Gasket | Na dotaz | Zadat poptávku | |
| 7923 WHR50986 |
C00500472
481246698995 |
Gasket | Na dotaz | Zadat poptávku | |
| 9000 WHR50986 |
C00621373
481240118566 |
Clip cable | Na dotaz | Zadat poptávku | |
| 9001 WHR50986 |
C00492119
481253518041 |
Clip | Na dotaz | Zadat poptávku | |
| 9003 WHR50986 |
C00593498
481231618021 |
Cableclamp. | Na dotaz | Zadat poptávku | |
| 9004 WHR50986 |
C00491489
481240418294 |
Staple | Na dotaz | Zadat poptávku | |
| 9005 WHR50986 |
C00621372
481240118565 |
Clip cable | Na dotaz | Zadat poptávku | |
| 9006 WHR50986 |
C00621374
481240118567 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 9010 WHR50986 |
C00492836
481990800367 |
Clip | Na dotaz | Zadat poptávku | |
| 9011 WHR50986 |
C00492833
481990800317 |
Holder | Na dotaz | Zadat poptávku | |
| 9012 WHR50986 |
C00491499
481240438641 |
Holder PCB | Na dotaz | Zadat poptávku | |
| 9041 WHR50986 |
C00486971
481990800469 |
Stopper | Na dotaz | Zadat poptávku | |
| 9042 WHR50986 |
C00491563
481240478471 |
Pate | Na dotaz | Zadat poptávku | |
| 9043 WHR50986 |
C00500905
481246818104 |
Spacebar | Na dotaz | Zadat poptávku | |
| 9100 WHR50986 |
C00492030
481250218537 |
Screw M4x14 - st EZN | Na dotaz | Zadat poptávku | |
| 9102 WHR50986 |
C00492041
481250218558 |
Screw M 6x 14 | Na dotaz | Zadat poptávku | |
| 9103 WHR50986 |
C00492040
481250218554 |
Screw KS18/10 4,0x10 | Na dotaz | Zadat poptávku | |
| 9104 WHR50986 |
C00491388
481231018683 |
Screw KS St EZN KA 4.0x10 | Na dotaz | Zadat poptávku | |
| 9105 WHR50986 |
C00594505
481250218556 |
Screw M 5x12. | Na dotaz | Zadat poptávku | |
| 9106 WHR50986 |
C00492039
481250218549 |
Screw M6x10 - DIN7500 | Na dotaz | Zadat poptávku | |
| 9107 WHR50986 |
C00492042
481250218559 |
Screw SF-M 5x16 | Na dotaz | Zadat poptávku | |
| 9108 WHR50986 |
C00621471
481250218561 |
Screw KS 18/10- 4,2x19. | Na dotaz | Zadat poptávku | |
| 9109 WHR50986 |
C00594504
481250218555 |
Screw KS 18/10-4,2x13. | Na dotaz | Zadat poptávku | |
| 9110 WHR50986 |
C00594506
481250218557 |
Screw KS 18/10 - 4,0x16. | Na dotaz | Zadat poptávku | |
| 9111 WHR50986 |
C00490909
481210028058 |
Screw KS St EZN 3,0x9 | Na dotaz | Zadat poptávku | |
| 9112 WHR50986 |
C00492043
481250218563 |
Screw St8.8 EZN-M 5x10 | Na dotaz | Zadat poptávku | |
| 9113 WHR50986 |
C00594507
481250218562 |
Screw KS 18/10- 4,2x13. | Na dotaz | Zadat poptávku | |
| 9114 WHR50986 |
C00492018
481250118006 |
Fastener | Na dotaz | Zadat poptávku | |
| 9115 WHR50986 |
C00492036
481250218545 |
Screw M5x12 - DIN7500 | Na dotaz | Zadat poptávku | |
| 9118 WHR50986 |
C00500916
481250218564 |
Nut M14 - DIN934 | Na dotaz | Zadat poptávku | |
| 9120 WHR50986 |
C00499854
481250518392 |
Nut M20 | Na dotaz | Zadat poptávku | |
| 9121 WHR50986 |
C00495086
481250568019 |
Washer | Na dotaz | Zadat poptávku | |
| 9300 WHR50986 |
C00491991
481249238385 |
Retractable Sp. | Na dotaz | Zadat poptávku | |
| 9410 WHR50986 |
C00484073
481252008031 |
Bearing 14xD35/D15 | Na dotaz | Zadat poptávku | |
| 9450 WHR50986 |
C00493672
481252048005 |
Flange f.bearing | Na dotaz | Zadat poptávku | |
| 9500 WHR50986 |
C00621354
481232118156 |
Screwed joint cable | Na dotaz | Zadat poptávku | |
| 9503 WHR50986 |
C00493606
481246668707 |
Rubber | Na dotaz | Zadat poptávku | |
| 9504 WHR50986 |
C00493607
481246668708 |
Rubber | Na dotaz | Zadat poptávku | |
| 9530 WHR50986 |
C00486324
481253068022 |
Gasket V-Ring | Na dotaz | Zadat poptávku | |
| 9620 WHR50986 |
C00621378
481240418293 |
Holder Motor | Na dotaz | Zadat poptávku | |
| 9621 WHR50986 |
C00621376
481240418291 |
Holder Blower motor | Na dotaz | Zadat poptávku | |
| 9622 WHR50986 |
C00492842
481990800522 |
Cap,feedtrough | Na dotaz | Zadat poptávku | |
| 9623 WHR50986 |
C00499777
481232148024 |
Cap,feedtrough humidity,sensor | Na dotaz | Zadat poptávku | |
| 9624 WHR50986 |
C00491426
481232178125 |
Cap,feedtrough NTC | Na dotaz | Zadat poptávku | |
| 9625 WHR50986 |
C00485155
481244098103 |
Cover Heating | Na dotaz | Zadat poptávku | |
| 9627 WHR50986 |
C00621442
481246488021 |
Protector | Na dotaz | Zadat poptávku | |
| 9629 WHR50986 |
C00388626
480112100275 |
Protector | Na dotaz | Zadat poptávku | |
| 9629 WHR50986 |
C00388627
480112100276 |
Pin D2.8x12, T=0.8-3 | Na dotaz | Zadat poptávku | |
| 9930 WHR50986 |
C00594165
481231018776 |
Kit Installation. | Na dotaz | Zadat poptávku | |
| 9931 WHR50986 |
C00594170
481240118557 |
Tilt lock Installation. | Na dotaz | Zadat poptávku | |
| 9932 WHR50986 |
C00621329
481226378015 |
Adapter | Na dotaz | Zadat poptávku | |
| 9933 WHR50986 |
C00493732
481253029142 |
Tube | Na dotaz | Zadat poptávku | |
| 999 WHR50986 |
C00647592 | Installation Instruction WHP | Na dotaz | Zadat poptávku | |
