BAUKNECHT TRA 4120 WS TUMBLE DRYER BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | TRA 4120 WS TUMBLE DRYER BK |
| Kód 12NC/I.C. kód: | 856041203000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Sušičky |
| Další podobné modely: | 856041203001, 856041203002, 856041210002, 856041242002, 856041210000, 856041210001, 856041242000, 856041242001 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

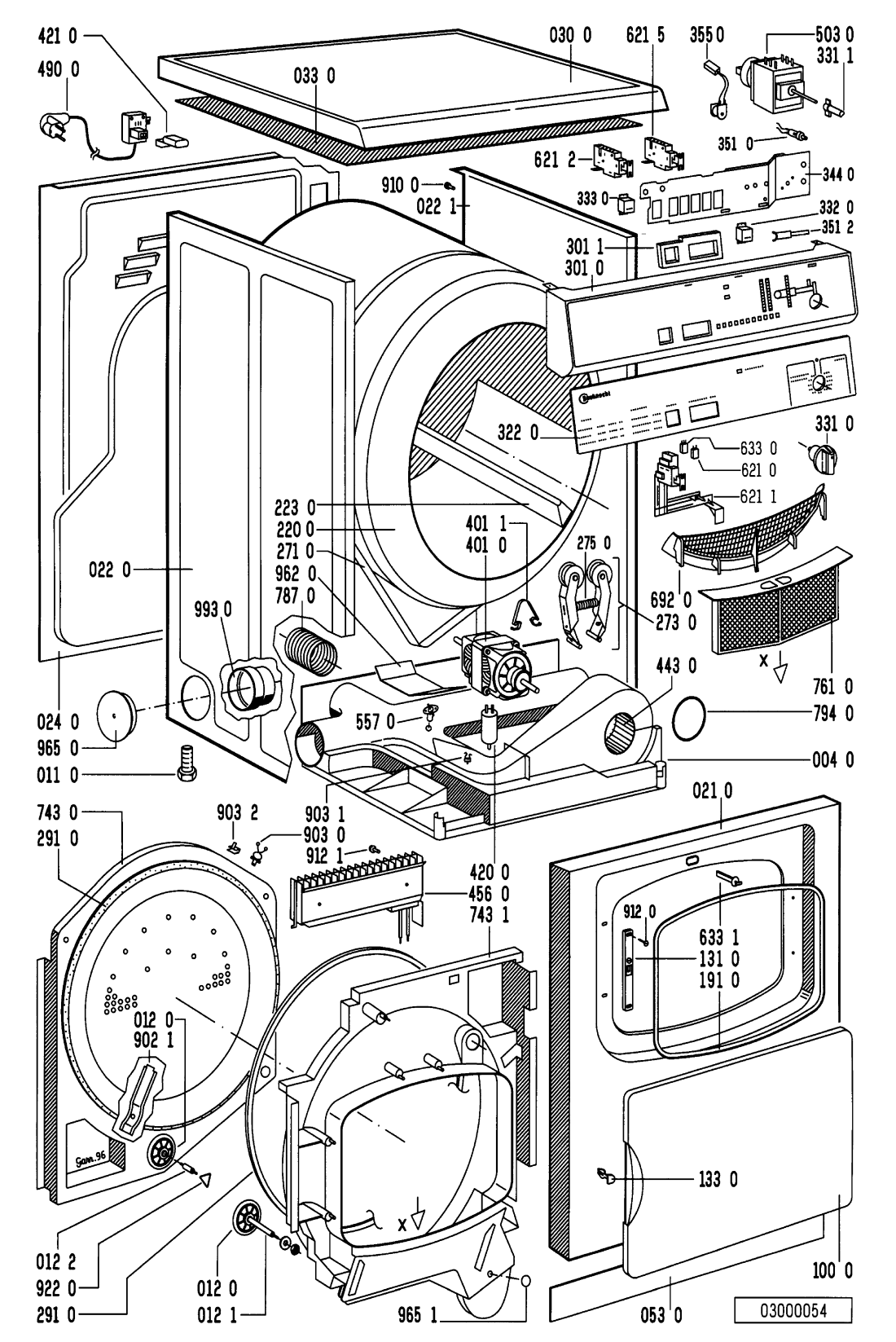

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 004 0 WHR69357 |
C00636100
481253048112 |
Bottom air vent.. | Na dotaz | Zadat poptávku | |
| 011 0 WHR69357 |
C00312250
481250018054 |
Nastavitelná noha sušičky Whirlpool AZA 799, DDLX 70112, FFT M11 8X3B BE. | 39 Kč
€ 1.60 |
||
| 012 0 WHR69357 |
C00311093
481252878033 |
kolecko bubnu | 822 Kč
€ 33.80 |
||
| 012 1 WHR69357 |
C00555624
481252028039 |
Shaft front.. | Na dotaz | Zadat poptávku | |
| 012 2 WHR69357 |
C00336444
481252028041 |
SHAFT REAR | Na dotaz | Zadat poptávku | |
| 021 0 WHR69357 |
C00592280
481245218948 |
FRONT. | Na dotaz | Zadat poptávku | |
| 022 0 WHR69357 |
C00555284
481244018931 |
Panel,side left.. | Na dotaz | Zadat poptávku | |
| 022 1 WHR69357 |
C00555285
481244018932 |
Panel,side right.. | Na dotaz | Zadat poptávku | |
| 024 0 WHR69357 |
C00497919
481244018603 |
PANEL, REAR | Na dotaz | Zadat poptávku | |
| 030 0 WHR69357 |
C00556800
481244019399 |
TABLE TOP.. | Na dotaz | Zadat poptávku | |
| 033 0 WHR69357 |
C00337800
481244018568 |
Plate | Na dotaz | Zadat poptávku | |
| 053 0 WHR69357 |
C00592397
481245938009 |
Plinth. | Na dotaz | Zadat poptávku | |
| 100 0 WHR69357 |
C00342131
481241738013 |
dvere susicky | Na dotaz | Zadat poptávku | |
| 131 0 WHR69357 |
C00313071
481227138354 |
Zámek sušičky | 904 Kč
€ 37.10 |
||
| 133 0 WHR69357 |
C00319932
481241728039 |
hak uzaveru | Na dotaz | Zadat poptávku | |
| 191 0 WHR69357 |
C00498454
481246668461 |
tesneni dveri | Na dotaz | Zadat poptávku | |
| 220 0 WHR69357 |
C00311837
481241818177 |
Buben sušičky | Na dotaz | Zadat poptávku | |
| 223 0 WHR69357 |
C00341180
481241888017 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 271 0 WHR69357 |
C00313707
481235818051 |
BELT | Na dotaz | Zadat poptávku | |
| 273 0 WHR69357 |
C00311000
481235818055 |
Napínací kladka sušičky prádla Whirlpool, Ignis | 863 Kč
€ 35.50 |
||
| 275 0 WHR69357 |
C00345784
481249268129 |
pruzina napin. kladk | Na dotaz | Zadat poptávku | |
| 291 0 WHR69357 |
C00555545
481246668544 |
TESNENIE BUBNA PREDNE N | Na dotaz | Zadat poptávku | |
| 301 0 WHR69357 |
C00555371
481245219315 |
CONTROL PANEL.. | Na dotaz | Zadat poptávku | |
| 301 1 WHR69357 |
C00592282
481245219316 |
INSERT. | Na dotaz | Zadat poptávku | |
| 322 0 WHR69357 |
C00592285
481245219325 |
Insert panel TRA 4120 WS. | Na dotaz | Zadat poptávku | |
| 331 0 WHR69357 |
C00338580
481241348222 |
Knob | Na dotaz | Zadat poptávku | |
| 331 1 WHR69357 |
C00344652
481241348239 |
Adapter | Na dotaz | Zadat poptávku | |
| 332 0 WHR69357 |
C00592037
481241028551 |
BUTTON. | Na dotaz | Zadat poptávku | |
| 333 0 WHR69357 |
C00592016
481227618254 |
BUTTON. | Na dotaz | Zadat poptávku | |
| 344 0 WHR69357 |
C00592403
481246448103 |
HOLDER. | Na dotaz | Zadat poptávku | |
| 351 0 WHR69357 |
C00341476
481213448202 |
PILOT LAMP | Na dotaz | Zadat poptávku | |
| 351 2 WHR69357 |
C00488441
481213448203 |
PILOT LAMP | Na dotaz | Zadat poptávku | |
| 355 0 WHR69357 |
C00498868
481928018015 |
BZUCIAK N | Na dotaz | Zadat poptávku | |
| 401 0 WHR69357 |
C00592033
481236158074 |
motor | Na dotaz | Zadat poptávku | |
| 401 1 WHR69357 |
C00343345
481240118226 |
CLAMP MOTOR | Na dotaz | Zadat poptávku | |
| 420 0 WHR69357 |
C00311778
481212118144 |
Rozběhový kondenzátor 10uF sušičky prádla Whirlpool | 204 Kč
€ 8.40 |
||
| 421 0 WHR69357 |
C00497241
481212118121 |
Interf.filter | Na dotaz | Zadat poptávku | |
| 443 0 WHR69357 |
C00490225
481251548005 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 456 0 WHR69357 |
C00554915
481225938167 |
NAHRADENE 481225928674 N | Na dotaz | Zadat poptávku | |
| 490 0 WHR69357 |
C00342888
481232118019 |
Cable,mains 5m (withou | Na dotaz | Zadat poptávku | |
| 490 0 WHR69357 |
C00342889
481232118026 |
Cable,mains 3m | Na dotaz | Zadat poptávku | |
| 503 0 WHR69357 |
C00315666
481228218457 |
Timer EC4605.01 TRA EC4605.01 | Na dotaz | Zadat poptávku | |
| 557 0 WHR69357 |
C00491366
481228248164 |
termostat | Na dotaz | Zadat poptávku | |
| 621 0 WHR69357 |
C00315649
481227618248 |
spinac tlacitkovy | 716 Kč
€ 29.40 |
||
| 621 1 WHR69357 |
C00335719
481227618247 |
SWITCH START RESET | Na dotaz | Zadat poptávku | |
| 621 2 WHR69357 |
C00336966
481227618226 |
Pushbuttonswit. "Gentle" | Na dotaz | Zadat poptávku | |
| 621 5 WHR69357 |
C00554935
481227618227 |
Pushbuttonswit. "Buzze.. | Na dotaz | Zadat poptávku | |
| 633 0 WHR69357 |
C00335709
481227138361 |
Switch, door | Na dotaz | Zadat poptávku | |
| 633 1 WHR69357 |
C00554934
481227618223 |
NAHRADENE 481227618271 N | Na dotaz | Zadat poptávku | |
| 692 0 WHR69357 |
C00481563
481248058067 |
senzor vlhkosti | 214 Kč
€ 8.80 |
||
| 743 0 WHR69357 |
C00343139
481253048151 |
Conveyor | Na dotaz | Zadat poptávku | |
| 743 1 WHR69357 |
C00592415
481253048132 |
Air guide without hole. | Na dotaz | Zadat poptávku | |
| 761 0 WHR69357 |
C00555572
481248058071 |
NAHRADENE 481231018427 N | Na dotaz | Zadat poptávku | |
| 787 0 WHR69357 |
C00339214
481253028836 |
HOSE,DEAERATION | Na dotaz | Zadat poptávku | |
| 794 0 WHR69357 |
C00337980
481246628105 |
O-RING | Na dotaz | Zadat poptávku | |
| 902 1 WHR69357 |
C00344157
481225638002 |
Bracket Roller | Na dotaz | Zadat poptávku | |
| 903 0 WHR69357 |
C00332660
481253228028 |
SPONA PLASTOVA | Na dotaz | Zadat poptávku | |
| 903 1 WHR69357 |
C00343322
481229088053 |
PLASTOVA PRICHYTKA | Na dotaz | Zadat poptávku | |
| 903 2 WHR69357 |
C00343321
481240118195 |
Clip | Na dotaz | Zadat poptávku | |
| 910 0 WHR69357 |
C00336554
481250238057 |
Screw Torx 4,2x13 | Na dotaz | Zadat poptávku | |
| 912 0 WHR69357 |
C00316665
481250248015 |
Šroub 4x16 | 68 Kč
€ 2.80 |
||
| 912 1 WHR69357 |
C00336571
481250238142 |
Screw M5 x 10 | Na dotaz | Zadat poptávku | |
| 922 0 WHR69357 |
C00311927
481253258005 |
pojistka kolecka sus | Na dotaz | Zadat poptávku | |
| 962 0 WHR69357 |
C00330880
481246638012 |
Protector Motor | Na dotaz | Zadat poptávku | |
| 965 0 WHR69357 |
C00636101
481253048113 |
Cover vent exhaust. | Na dotaz | Zadat poptávku | |
| 965 1 WHR69357 |
C00592406
481246668465 |
Stopper thermostat. | Na dotaz | Zadat poptávku | |
| 993 0 WHR69357 |
C00327219
481226378014 |
priruba hadice plast | Na dotaz | Zadat poptávku | |
