| Komerční kód: | UMWS 2819 SW |
| Kód 12NC: | 855809716410 |
| I.C. kód: | 855809716411 |
| Značka: | WHIRLPOOL |
| Typ produktu: |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

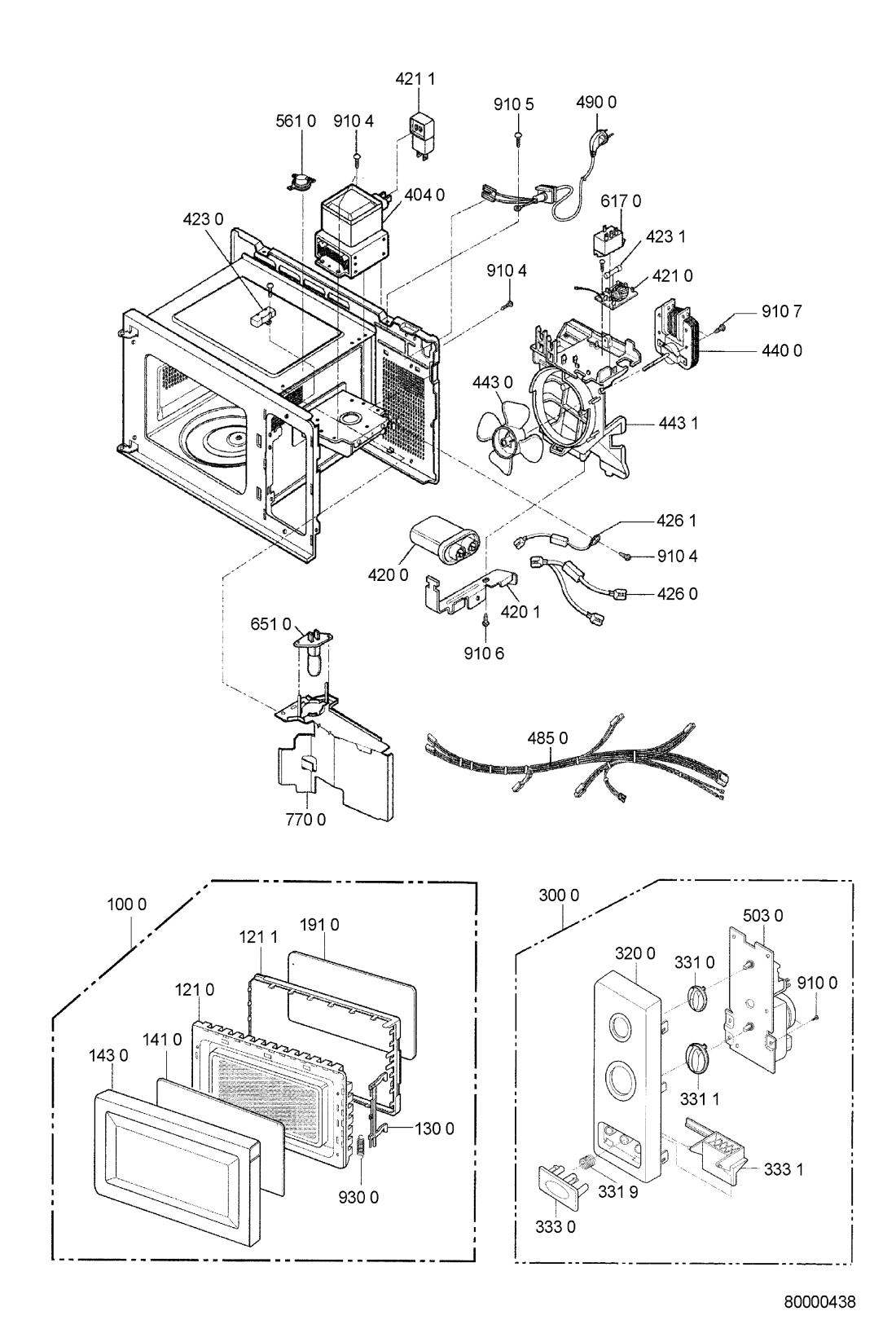

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR113583 |
C00482941
481244058277 |
Casing outer | Na dotaz | Zadat poptávku | |
| 001 5 WHR113583 |
C00529709
481246279838 |
Base plate | Na dotaz | Zadat poptávku | |
| 002 0 WHR113583 |
C00529710
481246279839 |
Base plate assembly | Na dotaz | Zadat poptávku | |
| 011 0 WHR113583 |
C00586789
481246279841 |
Foot. | Na dotaz | Zadat poptávku | |
| 100 0 WHR113583 |
C00750243
481244269278 |
Door assembly | Na dotaz | Zadat poptávku | |
| 121 0 WHR113583 |
C00529578
481245948156 |
Door frame assembly | Na dotaz | Zadat poptávku | |
| 121 1 WHR113583 |
C00586761
481245948157 |
Door frame cover. | Na dotaz | Zadat poptávku | |
| 130 0 WHR113583 |
C00586705
481245058711 |
Latch door. | Na dotaz | Zadat poptávku | |
| 141 0 WHR113583 |
C00528292
481245058712 |
Door glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR113583 |
C00528293
481245058713 |
Door panel panel | Na dotaz | Zadat poptávku | |
| 191 0 WHR113583 |
C00529784
481246818248 |
Gasket door | Na dotaz | Zadat poptávku | |
| 255 0 WHR113583 |
C00496201
481246678405 |
TANIER OTOCNY | Na dotaz | Zadat poptávku | |
| 264 0 WHR113583 |
C00586821
481253578066 |
Turntable ring. | Na dotaz | Zadat poptávku | |
| 300 0 WHR113583 |
C00529073
481245359714 |
Control unit assembly | Na dotaz | Zadat poptávku | |
| 320 0 WHR113583 |
C00755160
481245359713 |
Control panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR113583 |
C00750246
481241128867 |
Knob | Na dotaz | Zadat poptávku | |
| 331 1 WHR113583 |
C00750247
481241128868 |
Knob | Na dotaz | Zadat poptávku | |
| 331 9 WHR113583 |
C00586798
481249268183 |
Spring. | Na dotaz | Zadat poptávku | |
| 333 0 WHR113583 |
C00755159
481241128866 |
Button | Na dotaz | Zadat poptávku | |
| 333 1 WHR113583 |
C00586649
481241719133 |
Lever | Na dotaz | Zadat poptávku | |
| 404 0 WHR113583 |
C00586522
481213158799 |
Magnetron | Na dotaz | Zadat poptávku | |
| 406 0 WHR113583 |
C00586588
481236118379 |
Motor turntable | Na dotaz | Zadat poptávku | |
| 411 0 WHR113583 |
C00586530
481214538037 |
Transformer HV. | Na dotaz | Zadat poptávku | |
| 420 0 WHR113583 |
C00586517
481212138003 |
Capacitor HV. | Na dotaz | Zadat poptávku | |
| 420 1 WHR113583 |
C00586518
481212138004 |
Capacitor bracket. | Na dotaz | Zadat poptávku | |
| 421 0 WHR113583 |
C00484585
481212118249 |
Filter assembly | Na dotaz | Zadat poptávku | |
| 421 1 WHR113583 |
C00586514
481212118251 |
FILTER CERPADLA PLAST | Na dotaz | Zadat poptávku | |
| 423 0 WHR113583 |
C00586513
481212118248 |
Resistor. | Na dotaz | Zadat poptávku | |
| 423 1 WHR113583 |
C00586540
481225228041 |
pojistka 10A dl | Na dotaz | Zadat poptávku | |
| 426 0 WHR113583 |
C00586538
481221838178 |
Diode HV. | Na dotaz | Zadat poptávku | |
| 426 1 WHR113583 |
C00526907
481221838179 |
Diode cable assembly | Na dotaz | Zadat poptávku | |
| 440 0 WHR113583 |
C00491463
481236158368 |
motor ventilatoru | Na dotaz | Zadat poptávku | |
| 443 0 WHR113583 |
C00586567
481231038704 |
Fan | Na dotaz | Zadat poptávku | |
| 443 1 WHR113583 |
C00586566
481231038703 |
Fan support. | Na dotaz | Zadat poptávku | |
| 485 0 WHR113583 |
C00527294
481232028009 |
Cable HT | Na dotaz | Zadat poptávku | |
| 490 0 WHR113583 |
C00586584
481232118191 |
Cable mains. | Na dotaz | Zadat poptávku | |
| 500 0 WHR113583 |
C00586536
481221478934 |
Switch board. | Na dotaz | Zadat poptávku | |
| 503 0 WHR113583 |
C00492891
481221478933 |
Timer | Na dotaz | Zadat poptávku | |
| 561 0 WHR113583 |
C00620365
481228248272 |
Thermostat | Na dotaz | Zadat poptávku | |
| 617 0 WHR113583 |
C00586551
481228068363 |
RELE | Na dotaz | Zadat poptávku | |
| 632 0 WHR113583 |
C00586546
481227138449 |
Microswitch | Na dotaz | Zadat poptávku | |
| 633 0 WHR113583 |
C00586545
481227138448 |
Microswitch | Na dotaz | Zadat poptávku | |
| 651 0 WHR113583 |
C00586527
481213488047 |
ZIAROVKA | Na dotaz | Zadat poptávku | |
| 770 0 WHR113583 |
C00586700
481244528025 |
Air guide. | Na dotaz | Zadat poptávku | |
| 774 0 WHR113583 |
C00586699
481244528024 |
Mica plate. | Na dotaz | Zadat poptávku | |
| 910 0 WHR113583 |
C00529852
481250218611 |
Screw truss head | Na dotaz | Zadat poptávku | |
| 910 1 WHR113583 |
C00529851
481250218609 |
Screw truss head | Na dotaz | Zadat poptávku | |
| 910 2 WHR113583 |
C00529850
481250218608 |
Screw pan head | Na dotaz | Zadat poptávku | |
| 910 3 WHR113583 |
C00586810
481250218607 |
Screw. | Na dotaz | Zadat poptávku | |
| 910 4 WHR113583 |
C00529849
481250218605 |
Screw pan head | Na dotaz | Zadat poptávku | |
| 910 5 WHR113583 |
C00586808
481250218606 |
Screw. | Na dotaz | Zadat poptávku | |
| 910 6 WHR113583 |
C00586811
481250218612 |
Screw truss head. | Na dotaz | Zadat poptávku | |
| 910 7 WHR113583 |
C00529853
481250218613 |
Screw truss head | Na dotaz | Zadat poptávku | |
| 930 0 WHR113583 |
C00586797
481249268182 |
Spring | Na dotaz | Zadat poptávku | |
