BAUKNECHT WA EUROPA WASCHMASCHINE BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WA EUROPA WASCHMASCHINE BK |
| Kód 12NC/I.C. kód: | 855452912000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Pračky |
| Další podobné modely: | 855452912003 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

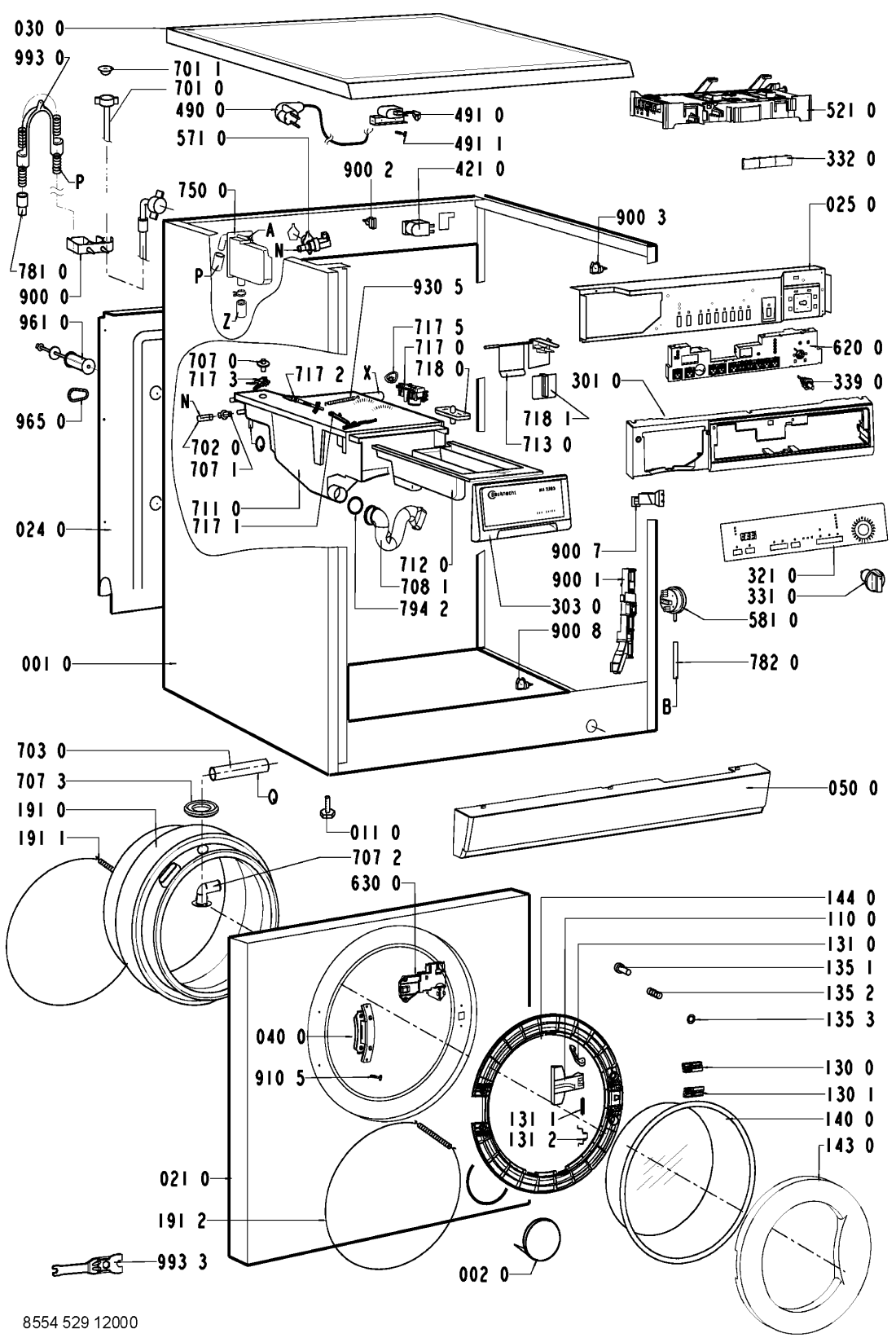

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR43548 |
C00343944
481944019716 |
skrin pracky | Na dotaz | Zadat poptávku | |
| 002 0 WHR43548 |
C00527942
481244010595 |
NAHRADENE 481244010876 | Na dotaz | Zadat poptávku | |
| 011 0 WHR43548 |
C00340814
481946248472 |
Foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR43548 |
C00340693
481244019818 |
stena predni | Na dotaz | Zadat poptávku | |
| 024 0 WHR43548 |
C00328103
481244018998 |
Stěna přední AWM250 | Na dotaz | Zadat poptávku | |
| 025 0 WHR43548 |
C00339540
481244018994 |
Holder WA-DE-IG-BK | Na dotaz | Zadat poptávku | |
| 030 0 WHR43548 |
C00335667
481231038181 |
Table top | Na dotaz | Zadat poptávku | |
| 040 0 WHR43548 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 050 0 WHR43548 |
C00553588
481244088983 |
Plinth VBL BK | Na dotaz | Zadat poptávku | |
| 061 0 WHR43548 |
C00343070
481246688458 |
zavazi horni | Na dotaz | Zadat poptávku | |
| 061 1 WHR43548 |
C00316001
481246688607 |
Counter weight front, bottom | Na dotaz | Zadat poptávku | |
| 061 2 WHR43548 |
C00332868
481931039227 |
sroub do zavazi sada | Na dotaz | Zadat poptávku | |
| 061 3 WHR43548 |
C00320457
481931039228 |
Mounting kit Weight bottom | Na dotaz | Zadat poptávku | |
| 081 0 WHR43548 |
C00313104
481246648088 |
Tlumič třecí pro předem plněné pračky Whirlpool | 766 Kč
€ 30.70 |
||
| 084 0 WHR43548 |
C00330907
481246658001 |
drzak pruziny agreg. | Na dotaz | Zadat poptávku | |
| 086 0 WHR43548 |
C00316610
481240118409 |
Holder Shock Absorber | Na dotaz | Zadat poptávku | |
| 086 1 WHR43548 |
C00312274
481240118413 |
Čep tlumiče | 1 772 Kč
€ 71.10 |
||
| 086 2 WHR43548 |
C00314527
481240118412 |
pojistka tlumice | 333 Kč
€ 13.40 |
||
| 110 0 WHR43548 |
C00339968
481249818139 |
Handle,door white | Na dotaz | Zadat poptávku | |
| 130 0 WHR43548 |
C00318057
481241728047 |
desticka uzaveru dv. | 27 Kč
€ 1.10 |
||
| 130 1 WHR43548 |
C00329782
481241728048 |
Plate Doorlock LowerDoorlock Lower | Na dotaz | Zadat poptávku | |
| 131 0 WHR43548 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 131 1 WHR43548 |
C00312243
481241728045 |
osa uzaveru dveri | 143 Kč
€ 5.70 |
||
| 131 2 WHR43548 |
C00312651
481249258022 |
Pružina uzávěru dveří | 237 Kč
€ 9.50 |
||
| 135 1 WHR43548 |
C00345878
481249818137 |
Knob Door safetyDoor safety | Na dotaz | Zadat poptávku | |
| 135 2 WHR43548 |
C00318221
481249258023 |
Spring Door Safety | Na dotaz | Zadat poptávku | |
| 135 3 WHR43548 |
C00313732
481229068153 |
drzak pojistky | Na dotaz | Zadat poptávku | |
| 140 0 WHR43548 |
C00339065
481245068218 |
Door glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR43548 |
C00340314
481244018988 |
Glassdoor frame white | Na dotaz | Zadat poptávku | |
| 144 0 WHR43548 |
C00314075
481244019589 |
priruba dveri | 1 184 Kč
€ 47.50 |
||
| 191 0 WHR43548 |
C00373762
481246668574 |
TVO | 1 122 Kč
€ 45.00 |
||
| 191 1 WHR43548 |
C00313764
481249218017 |
spona TVO - vnitřní | 149 Kč
€ 6.00 |
||
| 191 2 WHR43548 |
C00318256
481953058059 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 200 1 WHR43548 |
C00493536
481241818425 |
Tub, half 48 l front | Na dotaz | Zadat poptávku | |
| 200 2 WHR43548 |
C00312574
481241818368 |
Tub, half rear 48l, 1400 | Na dotaz | Zadat poptávku | |
| 200 4 WHR43548 |
C00314317
481229088054 |
Spona nádrže | 378 Kč
€ 15.20 |
||
| 220 0 WHR43548 |
C00313428
481241818353 |
buben MONACO 1400 | Na dotaz | Zadat poptávku | |
| 271 0 WHR43548 |
C00311078
481235818056 |
Řemen vícekl. 1250J4 | 306 Kč
€ 12.30 |
||
| 272 0 WHR43548 |
C00337067
481252858027 |
pulley DIAM.298DIAM.298 | Na dotaz | Zadat poptávku | |
| 272 2 WHR43548 |
C00337249
481253218024 |
PODLOZKA | Na dotaz | Zadat poptávku | |
| 272 3 WHR43548 |
C00313776
481250518371 |
matice remenice | Na dotaz | Zadat poptávku | |
| 292 0 WHR43548 |
C00311501
481253058101 |
těsnění bočnice | 694 Kč
€ 27.80 |
||
| 301 0 WHR43548 |
C00483410
481245219896 |
PANEL OVLADACI | Na dotaz | Zadat poptávku | |
| 303 0 WHR43548 |
C00498527
481249818138 |
Handle, drawer | Na dotaz | Zadat poptávku | |
| 321 0 WHR43548 |
C00591728
481245211787 |
Insert panel. | Na dotaz | Zadat poptávku | |
| 331 0 WHR43548 |
C00341850
481241318219 |
Knob,timer | Na dotaz | Zadat poptávku | |
| 332 0 WHR43548 |
C00497620
481241028584 |
Button options OMEGA | Na dotaz | Zadat poptávku | |
| 339 0 WHR43548 |
C00491644
481241318222 |
AAP OVLADANIA PROGRAMATORU N | Na dotaz | Zadat poptávku | |
| 400 0 WHR43548 |
C00314760
481236158337 |
Motor MCA61 | Na dotaz | Zadat poptávku | |
| 400 1 WHR43548 |
C00336568
481250218401 |
sroub do zavazi | Na dotaz | Zadat poptávku | |
| 409 0 WHR43548 |
C00311127
481236248004 |
Brush,carbon, Motor CESET | Na dotaz | Zadat poptávku | |
| 421 0 WHR43548 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 430 0 WHR43548 |
C00312598
481231018458 |
Pump SERVICE SET | Na dotaz | Zadat poptávku | |
| 451 0 WHR43548 |
C00557941
481225928758 |
NAHRADENE 481225928835 N | Na dotaz | Zadat poptávku | |
| 480 0 WHR43548 |
C00311380
481232178109 |
vodice svazek motor | Na dotaz | Zadat poptávku | |
| 490 0 WHR43548 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 491 0 WHR43548 |
C00309418
481232128367 |
Přechodka | 324 Kč
€ 13.00 |
||
| 491 1 WHR43548 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 521 0 WHR43548 |
C00496453
481221478737 |
CONTROL BOARD OMEGA 1400 | Na dotaz | Zadat poptávku | |
| 571 0 WHR43548 |
C00312238
481227128375 |
Napouštěcí ventil pračky - jednocestný, boční vývod | 546 Kč
€ 21.90 |
||
| 581 0 WHR43548 |
C00337540
481227128382 |
Presostat pračky | Na dotaz | Zadat poptávku | |
| 620 0 WHR43548 |
C00500189
481227628375 |
Module BK1 C, OMEGA | Na dotaz | Zadat poptávku | |
| 630 0 WHR43548 |
C00315131
481228058019 |
Door lock | Na dotaz | Zadat poptávku | |
| 691 0 WHR43548 |
C00317366
481228218702 |
senzor NTC | Na dotaz | Zadat poptávku | |
| 701 0 WHR43548 |
C00314963
481953028848 |
hadicenapousteci | Na dotaz | Zadat poptávku | |
| 701 1 WHR43548 |
C00316490
481946669704 |
tesneni + sitko | 173 Kč
€ 6.90 |
||
| 702 0 WHR43548 |
C00313911
481953029019 |
Hadice ventil - násypka pračky Whirlpool, Ignis, Bauknecht | 105 Kč
€ 4.20 |
||
| 703 0 WHR43548 |
C00339211
481253048466 |
Hosedoor rinsing 535 MM | Na dotaz | Zadat poptávku | |
| 707 0 WHR43548 |
C00317102
481252648031 |
Tryska násypky pračky | 104 Kč
€ 4.20 |
||
| 707 1 WHR43548 |
C00332324
481252648028 |
Tryska násypky pračky | Na dotaz | Zadat poptávku | |
| 707 2 WHR43548 |
C00498636
481253048161 |
Fitting | Na dotaz | Zadat poptávku | |
| 707 3 WHR43548 |
C00332649
481253078011 |
podlozka trysky spr. | Na dotaz | Zadat poptávku | |
| 708 1 WHR43548 |
C00538614
481253048356 |
KOLENO VBL BK | Na dotaz | Zadat poptávku | |
| 711 0 WHR43548 |
C00553546
481241888032 |
Dispenser.. | Na dotaz | Zadat poptávku | |
| 712 0 WHR43548 |
C00317123
481241888029 |
Drawer DetergentDetergent | Na dotaz | Zadat poptávku | |
| 713 0 WHR43548 |
C00317121
481241888019 |
vlozka nasypky klap. | Na dotaz | Zadat poptávku | |
| 717 0 WHR43548 |
C00314912
481232318006 |
motorek distribuce vody násypky pračky | 580 Kč
€ 23.20 |
||
| 717 1 WHR43548 |
C00338398
481232138015 |
Lever water distr. OME | Na dotaz | Zadat poptávku | |
| 717 2 WHR43548 |
C00338404
481232138014 |
Lever OMEGA/GAMMA | Na dotaz | Zadat poptávku | |
| 717 3 WHR43548 |
C00338410
481232138016 |
Lever connection OMEGAconnection OMEG | Na dotaz | Zadat poptávku | |
| 717 5 WHR43548 |
C00342853
481231018459 |
VACKA AKTUATORA OMEG | 265 Kč
€ 10.60 |
||
| 718 0 WHR43548 |
C00318585
481252648027 |
viko prepadu nasypky | 54 Kč
€ 2.20 |
||
| 718 1 WHR43548 |
C00314031
481241888018 |
ovladac | 396 Kč
€ 15.90 |
||
| 750 0 WHR43548 |
C00317158
481253048153 |
Chamber,expand. BUILT-IN | Na dotaz | Zadat poptávku | |
| 753 1 WHR43548 |
C00312723
481941868234 |
vzdusnik | Na dotaz | Zadat poptávku | |
| 754 0 WHR43548 |
C00312061
481253028826 |
Hadice nádrž-čerpadlo | Na dotaz | Zadat poptávku | |
| 754 1 WHR43548 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 894 Kč
€ 35.80 |
||
| 754 2 WHR43548 |
C00332413
481253028829 |
Flange eco | Na dotaz | Zadat poptávku | |
| 760 0 WHR43548 |
C00314625
481248058105 |
Filtr čerpadla DELTA | 697 Kč
€ 27.90 |
||
| 781 0 WHR43548 |
C00318230
481953028847 |
Hose,draining | Na dotaz | Zadat poptávku | |
| 782 0 WHR43548 |
C00317136
481253028827 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 783 3 WHR43548 |
C00310140
481253018001 |
Connection Part | Na dotaz | Zadat poptávku | |
| 783 4 WHR43548 |
C00498614
481253028818 |
HADICA CERPADLO-KOMORA/D | Na dotaz | Zadat poptávku | |
| 785 0 WHR43548 |
C00314984
481253028812 |
Hadice vypouštěcího čerpadla pračky Whirlpool, Bauknecht, Ignis | 584 Kč
€ 23.40 |
||
| 785 1 WHR43548 |
C00335472
481246279663 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 787 0 WHR43548 |
C00315511
481253028813 |
hadice odparovaci | 447 Kč
€ 17.90 |
||
| 787 2 WHR43548 |
C00332932
481940118868 |
SPONA HADICE AW | Na dotaz | Zadat poptávku | |
| 794 2 WHR43548 |
C00337979
481253058005 |
O-Ring | Na dotaz | Zadat poptávku | |
| 794 5 WHR43548 |
C00340485
481253058095 |
tesneni vzdusniku | 16 Kč
€ 0.60 |
||
| 900 0 WHR43548 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | Na dotaz | Zadat poptávku | |
| 900 1 WHR43548 |
C00327315
481229088086 |
Bracket | Na dotaz | Zadat poptávku | |
| 900 2 WHR43548 |
C00327313
481229088077 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 3 WHR43548 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR43548 |
C00316612
481240118414 |
SPONA39,7 | 37 Kč
€ 1.50 |
||
| 900 5 WHR43548 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 92 Kč
€ 3.70 |
||
| 900 6 WHR43548 |
C00317960
481240118444 |
Držák topení pračky Whirlpool, Ignis | Na dotaz | Zadat poptávku | |
| 900 7 WHR43548 |
C00327148
481225698031 |
Holder pressostat | Na dotaz | Zadat poptávku | |
| 900 8 WHR43548 |
C00332928
481940118823 |
SPONA | Na dotaz | Zadat poptávku | |
| 910 5 WHR43548 |
C00332081
481250218516 |
Screw 4,2 x 13 | Na dotaz | Zadat poptávku | |
| 930 0 WHR43548 |
C00320162
481949238139 |
pruzina | Na dotaz | Zadat poptávku | |
| 930 5 WHR43548 |
C00312356
481249238359 |
Pružina trysky násypky | 13 Kč
€ 0.50 |
||
| 941 0 WHR43548 |
C00314254
481252028003 |
BEARING 6306 2Z C3 GJN | Na dotaz | Zadat poptávku | |
| 941 1 WHR43548 |
C00315491
481252028005 |
BEARING 6304 2Z C3 | Na dotaz | Zadat poptávku | |
| 953 0 WHR43548 |
C00314432
481253058142 |
gufero 35x75x12 | Na dotaz | Zadat poptávku | |
| 961 0 WHR43548 |
C00333324
481953268829 |
Vložka vymezovací | 305 Kč
€ 12.20 |
||
| 965 0 WHR43548 |
C00330912
481246668545 |
kryt odjisteni prack | 206 Kč
€ 8.30 |
||
| 993 0 WHR43548 |
C00316831
481953029028 |
Ohyb plastový/držák vypouštěcí hadice pračky | Na dotaz | Zadat poptávku | |
| 993 3 WHR43548 |
C00328868
481239558004 |
klic montazni | 64 Kč
€ 2.60 |
||
