| Komerční kód: | WA24ODU |
| Kód 12NC: | 853002901100 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

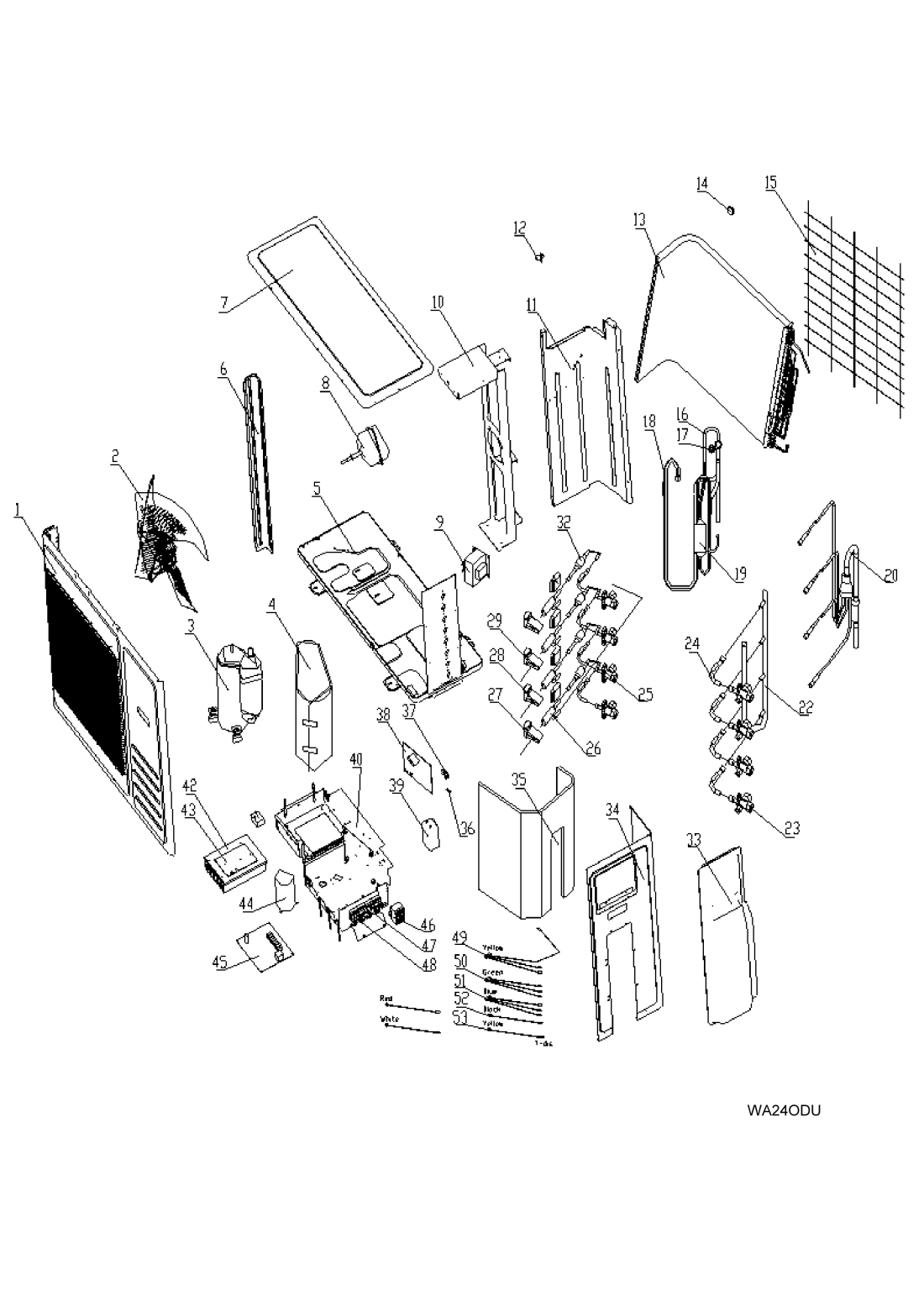

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 01 WHR11379 |
C00414507
482000015224 |
Front panel | Na dotaz | Zadat poptávku | |
| 02 WHR11379 |
C00414506
482000015223 |
Acial flow fan | Na dotaz | Zadat poptávku | |
| 03 WHR11379 |
C00415636
482000018069 |
Compressor DA200S2C -10MT - R410A | Na dotaz | Zadat poptávku | |
| 04 WHR11379 |
C00415637
482000018070 |
Insulation | Na dotaz | Zadat poptávku | |
| 040 WHR11379 |
C00641535
488000641535 |
Main board | Na dotaz | Zadat poptávku | |
| 05 WHR11379 |
C00415638
482000018071 |
Base | Na dotaz | Zadat poptávku | |
| 06 WHR11379 |
C00414505
482000015222 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 07 WHR11379 |
C00414503
482000015220 |
Cover top | Na dotaz | Zadat poptávku | |
| 08 WHR11379 |
C00414504
482000015221 |
Motor ventilátoru vnitřní jednotky klimatizace | 10 250 Kč
€ 450.50 |
||
| 09 WHR11379 |
C00414511
482000015228 |
Coil Electrom. | Na dotaz | Zadat poptávku | |
| 10 WHR11379 |
C00414502
482000015219 |
Support motor bracket | Na dotaz | Zadat poptávku | |
| 11 WHR11379 |
C00415639
482000018072 |
Separator | Na dotaz | Zadat poptávku | |
| 12 WHR11379 |
C00386250
480150100864 |
Holder Sensor temper. | Na dotaz | Zadat poptávku | |
| 13 WHR11379 |
C00415640
482000018073 |
Condenser assy | Na dotaz | Zadat poptávku | |
| 14 WHR11379 |
C00414499
482000015216 |
Rubber | Na dotaz | Zadat poptávku | |
| 15 WHR11379 |
C00414498
482000015215 |
Guard back | Na dotaz | Zadat poptávku | |
| 16 WHR11379 |
C00386125
481236058434 |
Valve 4 Way | Na dotaz | Zadat poptávku | |
| 17 WHR11379 |
C00415641
482000018074 |
Coil electromagnetic | Na dotaz | Zadat poptávku | |
| 18 WHR11379 |
C00415642
482000018075 |
Tube suction | Na dotaz | Zadat poptávku | |
| 19 WHR11379 |
C00415643
482000018076 |
Tube discharg. | Na dotaz | Zadat poptávku | |
| 20 WHR11379 |
C00415644
482000018077 |
Tube outlet assy | Na dotaz | Zadat poptávku | |
| 22 WHR11379 |
C00415645
482000018078 |
Pipe assy | Na dotaz | Zadat poptávku | |
| 23 WHR11379 |
C00415646
482000018079 |
Valve 3/8 | Na dotaz | Zadat poptávku | |
| 24 WHR11379 |
C00415647
482000018080 |
Valve 3/8 assy | Na dotaz | Zadat poptávku | |
| 25 WHR11379 |
C00415648
482000018081 |
Valve 1/4 | Na dotaz | Zadat poptávku | |
| 26 WHR11379 |
C00415614
482000018047 |
Valve electrical | Na dotaz | Zadat poptávku | |
| 27 WHR11379 |
C00395512
480150100842 |
Coil Valve | Na dotaz | Zadat poptávku | |
| 28 WHR11379 |
C00415649
482000018082 |
Coil B electromagnetic | Na dotaz | Zadat poptávku | |
| 29 WHR11379 |
C00415650
482000018083 |
Coil C electromagnetic | Na dotaz | Zadat poptávku | |
| 32 WHR11379 |
C00415651
482000018084 |
Valve electric expansion | Na dotaz | Zadat poptávku | |
| 33 WHR11379 |
C00415652
482000018085 |
Cover valve | Na dotaz | Zadat poptávku | |
| 34 WHR11379 |
C00415653
482000018086 |
Side panel | Na dotaz | Zadat poptávku | |
| 35 WHR11379 |
C00415654
482000018087 |
Insulation | Na dotaz | Zadat poptávku | |
| 36 WHR11379 |
C00412061
482000010455 |
Fuse | Na dotaz | Zadat poptávku | |
| 37 WHR11379 |
C00415655
482000018088 |
Bracket fuse | Na dotaz | Zadat poptávku | |
| 38 WHR11379 |
C00415656
482000018089 |
Control board | Na dotaz | Zadat poptávku | |
| 39 WHR11379 |
C00414523
482000015240 |
Filter mains (EMI) | Na dotaz | Zadat poptávku | |
| 40 WHR11379 |
C00415657
482000018090 |
Electronic box | Na dotaz | Zadat poptávku | |
| 42 WHR11379 |
C00414525
482000015242 |
Radiator | Na dotaz | Zadat poptávku | |
| 43 WHR11379 |
C00415658
482000018091 |
Transf driver (IPM assy) | Na dotaz | Zadat poptávku | |
| 44 WHR11379 |
C00415659
482000018092 |
Capacitor electroanalysis | Na dotaz | Zadat poptávku | |
| 45 WHR11379 |
C00415660
482000018093 |
Control board | Na dotaz | Zadat poptávku | |
| 46 WHR11379 |
C00414530
482000015247 |
Terminal block Power supply | Na dotaz | Zadat poptávku | |
| 47 WHR11379 |
C00414529
482000015246 |
Terminal block Connection | Na dotaz | Zadat poptávku | |
| 48 WHR11379 |
C00415661
482000018094 |
Clip | Na dotaz | Zadat poptávku | |
| 49 WHR11379 |
C00415619
482000018052 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 50 WHR11379 |
C00415620
482000018053 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 51 WHR11379 |
C00415662
482000018095 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 52 WHR11379 |
C00415663
482000018096 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 53 WHR11379 |
C00415617
482000018050 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 999 WHR11379 |
C00541580 | NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
| 999 WHR11379 |
C00541581 | Testprogram WHP | Na dotaz | Zadat poptávku | |
| 999 WHR11379 |
C00541583 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
