WHIRLPOOL ARG 754 WBM 48 REFRIGERATORS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ARG 754 WBM 48 REFRIGERATORS WP |
| Kód 12NC/I.C. kód: | 853475482000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 853475401000 |
Potřebujete servis? Jsme tady pro Vás

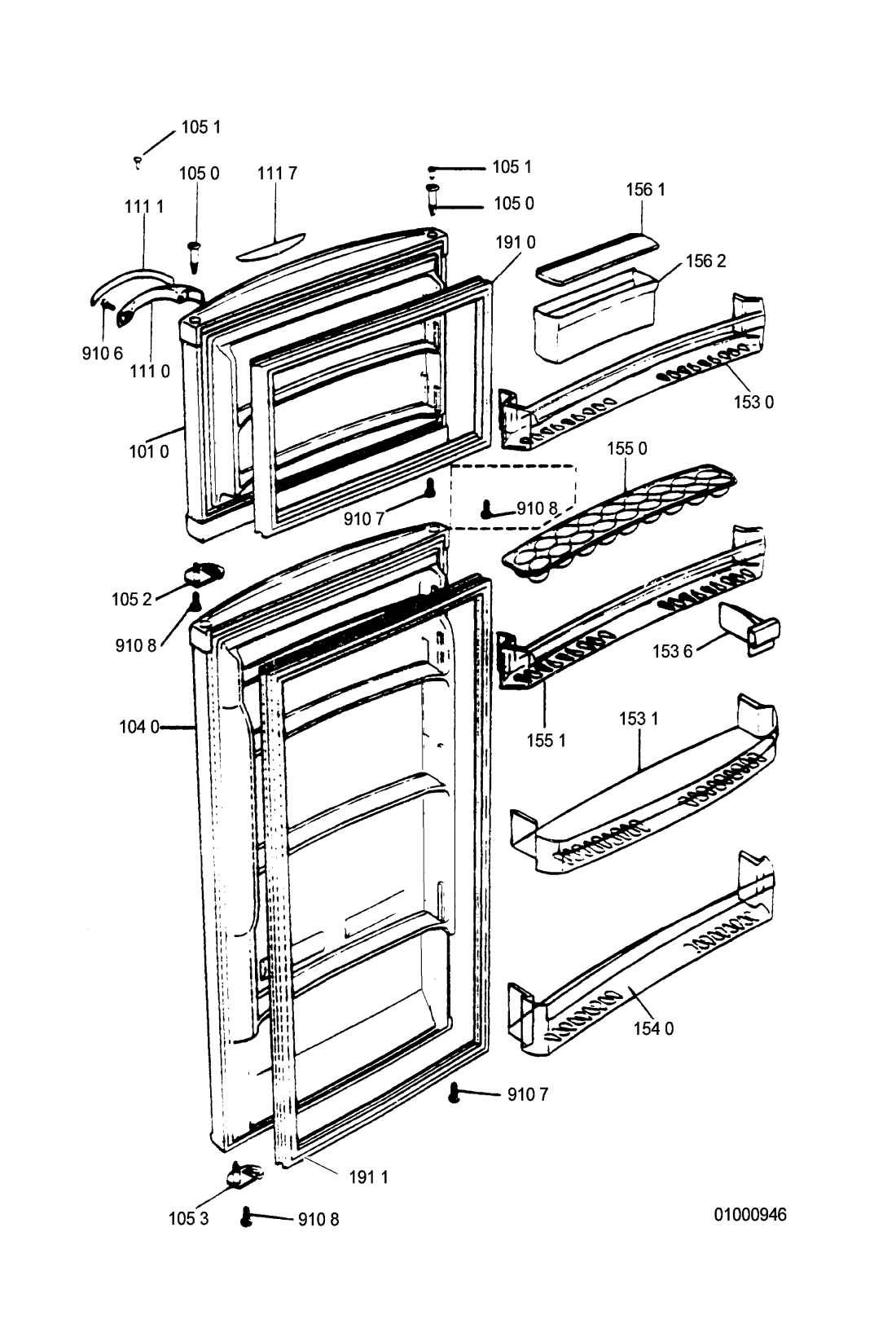

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR93319 |
C00340800
481246238082 |
Foot | Na dotaz | Zadat poptávku | |
| 011 1 WHR93319 |
C00636648
481246248061 |
DAMPING PART. | Na dotaz | Zadat poptávku | |
| 011 2 WHR93319 |
C00336238
481246218185 |
Small plate | Na dotaz | Zadat poptávku | |
| 012 0 WHR93319 |
C00336795
481252878048 |
Roller | Na dotaz | Zadat poptávku | |
| 040 0 WHR93319 |
C00583842
481241778019 |
Hinge upper. | Na dotaz | Zadat poptávku | |
| 040 1 WHR93319 |
C00336360
481241778021 |
Shim hinge | Na dotaz | Zadat poptávku | |
| 040 2 WHR93319 |
C00492120
481253538084 |
Shim | Na dotaz | Zadat poptávku | |
| 040 3 WHR93319 |
C00488942
481241718995 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 040 4 WHR93319 |
C00342472
481246228054 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 040 5 WHR93319 |
C00488925
481241718853 |
Hinge left | Na dotaz | Zadat poptávku | |
| 040 6 WHR93319 |
C00336366
481241778022 |
Shim | Na dotaz | Zadat poptávku | |
| 040 7 WHR93319 |
C00339800
481241718854 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 047 3 WHR93319 |
C00336455
481253548009 |
Shaft | Na dotaz | Zadat poptávku | |
| 070 0 WHR93319 |
C00583941
481246488012 |
PANEL. | Na dotaz | Zadat poptávku | |
| 101 0 WHR93319 |
C00485188
481244229105 |
Door freezer | Na dotaz | Zadat poptávku | |
| 102 0 WHR93319 |
C00583885
481244229106 |
Evapor.door. | Na dotaz | Zadat poptávku | |
| 102 1 WHR93319 |
C00584595
481244229107 |
Cover. | Na dotaz | Zadat poptávku | |
| 104 0 WHR93319 |
C00584594
481244229104 |
Door,refriger.. | Na dotaz | Zadat poptávku | |
| 105 0 WHR93319 |
C00344080
481253288011 |
Bushing | Na dotaz | Zadat poptávku | |
| 105 1 WHR93319 |
C00336004
481253288012 |
zaslepka | Na dotaz | Zadat poptávku | |
| 105 2 WHR93319 |
C00344061
481246228181 |
Bushing white | Na dotaz | Zadat poptávku | |
| 105 3 WHR93319 |
C00498375
481246228179 |
Bushing right,white. | Na dotaz | Zadat poptávku | |
| 111 0 WHR93319 |
C00583961
481249818165 |
HANDLE. | Na dotaz | Zadat poptávku | |
| 111 1 WHR93319 |
C00529825
481249878042 |
Insert ,handle handle | Na dotaz | Zadat poptávku | |
| 111 7 WHR93319 |
C00576352
481245918188 |
PLAQUE DE MARQUE.. | Na dotaz | Zadat poptávku | |
| 153 0 WHR93319 |
C00776614
481241879649 |
SCHROEF VOOR OVENZIJPANEEL | Na dotaz | Zadat poptávku | |
| 153 1 WHR93319 |
C00489004
481241828034 |
Door dairy | Na dotaz | Zadat poptávku | |
| 153 6 WHR93319 |
C00491895
481246078892 |
SPACER | Na dotaz | Zadat poptávku | |
| 154 0 WHR93319 |
C00491687
481241848491 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 155 0 WHR93319 |
C00583924
481246088236 |
Holder eggs. | Na dotaz | Zadat poptávku | |
| 155 1 WHR93319 |
C00583855
481241879651 |
Door dairy. | Na dotaz | Zadat poptávku | |
| 156 0 WHR93319 |
C00335336
481241828031 |
Tray icecube | Na dotaz | Zadat poptávku | |
| 156 1 WHR93319 |
C00495595
481244228966 |
COVER | Na dotaz | Zadat poptávku | |
| 156 2 WHR93319 |
C00500821
481241828033 |
zasobnik na led | Na dotaz | Zadat poptávku | |
| 191 0 WHR93319 |
C00583951
481246818015 |
NAHRADENE 481246818275 | Na dotaz | Zadat poptávku | |
| 191 1 WHR93319 |
C00529774
481246818016 |
Magnetic seal ref. | Na dotaz | Zadat poptávku | |
| 201 3 WHR93319 |
C00583802
481232518006 |
INSULATION. | Na dotaz | Zadat poptávku | |
| 203 0 WHR93319 |
C00338714
481232518003 |
Insulation ,rear | Na dotaz | Zadat poptávku | |
| 203 1 WHR93319 |
C00527316
481232518004 |
Insulation front | Na dotaz | Zadat poptávku | |
| 242 0 WHR93319 |
C00342288
481241879647 |
zasuvka na zeleninu | Na dotaz | Zadat poptávku | |
| 242 1 WHR93319 |
C00583826
481240488009 |
Front Crisper. | Na dotaz | Zadat poptávku | |
| 242 2 WHR93319 |
C00557167
481246238083 |
SLIDE.. | Na dotaz | Zadat poptávku | |
| 242 3 WHR93319 |
C00336788
481240448673 |
Roller vegetables drawer | Na dotaz | Zadat poptávku | |
| 242 4 WHR93319 |
C00491545
481240478299 |
SPACER | Na dotaz | Zadat poptávku | |
| 244 0 WHR93319 |
C00485820
481245838028 |
SHELF | Na dotaz | Zadat poptávku | |
| 244 1 WHR93319 |
C00583844
481241828032 |
DRAWER. | Na dotaz | Zadat poptávku | |
| 244 2 WHR93319 |
C00584658
481245838054 |
Grid. | Na dotaz | Zadat poptávku | |
| 244 3 WHR93319 |
C00485821
481245838032 |
Shelf | Na dotaz | Zadat poptávku | |
| 244 4 WHR93319 |
C00583911
481245838029 |
SHELF. | Na dotaz | Zadat poptávku | |
| 246 0 WHR93319 |
C00335356
481241828029 |
Tray ,freezer | Na dotaz | Zadat poptávku | |
| 246 1 WHR93319 |
C00584543
481241848543 |
Tray , freezer. | Na dotaz | Zadat poptávku | |
| 256 0 WHR93319 |
C00583948
481246698945 |
AIR REGULATOR. | Na dotaz | Zadat poptávku | |
| 261 0 WHR93319 |
C00336930
481246818014 |
Rail right | Na dotaz | Zadat poptávku | |
| 261 1 WHR93319 |
C00336932
481246218183 |
Rail left | Na dotaz | Zadat poptávku | |
| 263 0 WHR93319 |
C00336264
481246218184 |
Slide | Na dotaz | Zadat poptávku | |
| 263 1 WHR93319 |
C00335790
481240448671 |
drzak | Na dotaz | Zadat poptávku | |
| 301 0 WHR93319 |
C00583903
481245319587 |
Insert. | Na dotaz | Zadat poptávku | |
| 301 1 WHR93319 |
C00584634
481245268034 |
Control panel. | Na dotaz | Zadat poptávku | |
| 301 2 WHR93319 |
C00557164
481245228072 |
INTERFACE.. | Na dotaz | Zadat poptávku | |
| 301 3 WHR93319 |
C00483767
481245298181 |
CONTROL PANEL | Na dotaz | Zadat poptávku | |
| 335 0 WHR93319 |
C00583789
481227158162 |
KNOB THERMOSTAT. | Na dotaz | Zadat poptávku | |
| 402 0 WHR93319 |
C00584417
481236038724 |
Compressor FFI 8,5 HAK (1/4. | Na dotaz | Zadat poptávku | |
| 402 1 WHR93319 |
C00747672
481241879744 |
Tray compressor | Na dotaz | Zadat poptávku | |
| 402 3 WHR93319 |
C00496275
481246698944 |
Crossbar | Na dotaz | Zadat poptávku | |
| 402 4 WHR93319 |
C00574987
481253538085 |
Clip. | Na dotaz | Zadat poptávku | |
| 440 0 WHR93319 |
C00488666
481236138049 |
Motor ,fan/127V/60Hz | Na dotaz | Zadat poptávku | |
| 440 1 WHR93319 |
C00315086
481246638021 |
Damper fan | Na dotaz | Zadat poptávku | |
| 443 0 WHR93319 |
C00342327
481244069029 |
Cover,front | Na dotaz | Zadat poptávku | |
| 443 1 WHR93319 |
C00335783
481246048881 |
Support Ventilator | Na dotaz | Zadat poptávku | |
| 451 0 WHR93319 |
C00488519
481225948138 |
Element defrost | Na dotaz | Zadat poptávku | |
| 480 0 WHR93319 |
C00584410
481232058097 |
Cable harness. | Na dotaz | Zadat poptávku | |
| 491 0 WHR93319 |
C00498415
481246279703 |
Cover Relay. | Na dotaz | Zadat poptávku | |
| 500 0 WHR93319 |
C00583792
481227158172 |
Potentiometer | Na dotaz | Zadat poptávku | |
| 500 1 WHR93319 |
C00342539
481244028945 |
Cover Control board | Na dotaz | Zadat poptávku | |
| 566 0 WHR93319 |
C00319312
481228238041 |
Thermostat | Na dotaz | Zadat poptávku | |
| 566 1 WHR93319 |
C00339546
481246048885 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 566 2 WHR93319 |
C00314686
481228238042 |
termostat | Na dotaz | Zadat poptávku | |
| 566 3 WHR93319 |
C00498670
481253548011 |
Bracket. | Na dotaz | Zadat poptávku | |
| 614 0 WHR93319 |
C00584856
481269028021 |
Relay + overload. | Na dotaz | Zadat poptávku | |
| 651 0 WHR93319 |
C00583777
481213488027 |
Lamp 127V. | Na dotaz | Zadat poptávku | |
| 652 0 WHR93319 |
C00557158
481225528005 |
HOLDER,LAMP.. | Na dotaz | Zadat poptávku | |
| 652 1 WHR93319 |
C00342450
481225528004 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 652 2 WHR93319 |
C00342197
481246228056 |
Deflector | Na dotaz | Zadat poptávku | |
| 652 3 WHR93319 |
C00342514
481246098006 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 652 7 WHR93319 |
C00342198
481246228057 |
Deflector | Na dotaz | Zadat poptávku | |
| 691 0 WHR93319 |
C00336525
481228268021 |
Sensor kit | Na dotaz | Zadat poptávku | |
| 740 0 WHR93319 |
C00583969
481251148216 |
Condenser. | Na dotaz | Zadat poptávku | |
| 740 1 WHR93319 |
C00621451
481246698943 |
BRACKET. | Na dotaz | Zadat poptávku | |
| 740 2 WHR93319 |
C00343291
481240418112 |
Clip Condenserr | Na dotaz | Zadat poptávku | |
| 743 0 WHR93319 |
C00498501
481248028035 |
difuzor | Na dotaz | Zadat poptávku | |
| 743 1 WHR93319 |
C00335877
481246048884 |
Support | Na dotaz | Zadat poptávku | |
| 743 4 WHR93319 |
C00485134
481244078918 |
Cover | Na dotaz | Zadat poptávku | |
| 745 0 WHR93319 |
C00341099
481251138149 |
Evaporator | Na dotaz | Zadat poptávku | |
| 745 1 WHR93319 |
C00339197
481244228963 |
Housing Evaporator | Na dotaz | Zadat poptávku | |
| 745 2 WHR93319 |
C00583803
481232588007 |
Insulation. | Na dotaz | Zadat poptávku | |
| 745 3 WHR93319 |
C00583801
481232518005 |
Cover rubber. | Na dotaz | Zadat poptávku | |
| 745 4 WHR93319 |
C00335834
481253598061 |
Support Evaporator | Na dotaz | Zadat poptávku | |
| 760 0 WHR93319 |
C00344625
481249038001 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| 760 1 WHR93319 |
C00319191
481246048883 |
Support Air clean filt. | Na dotaz | Zadat poptávku | |
| 764 0 WHR93319 |
C00583958
481248028036 |
DRYER. | Na dotaz | Zadat poptávku | |
| 765 1 WHR93319 |
C00315305
481236118282 |
Fan | Na dotaz | Zadat poptávku | |
| 765 2 WHR93319 |
C00342370
481244069031 |
Cover rear | Na dotaz | Zadat poptávku | |
| 765 3 WHR93319 |
C00343377
481246048882 |
Clamp Cover | Na dotaz | Zadat poptávku | |
| 781 0 WHR93319 |
C00337398
481217088005 |
Tube | Na dotaz | Zadat poptávku | |
| 900 0 WHR93319 |
C00332711
481253538083 |
Pin | Na dotaz | Zadat poptávku | |
| 900 2 WHR93319 |
C00343300
481253578042 |
Clip | Na dotaz | Zadat poptávku | |
| 910 0 WHR93319 |
C00492137
481256018017 |
SCREW | Na dotaz | Zadat poptávku | |
| 910 0 WHR93319 |
C00492139
481256018021 |
SCREW | Na dotaz | Zadat poptávku | |
| 910 1 WHR93319 |
C00492138
481256018018 |
SCREW | Na dotaz | Zadat poptávku | |
| 910 3 WHR93319 |
C00583987
481256018019 |
SCREW. | Na dotaz | Zadat poptávku | |
| 910 7 WHR93319 |
C00336667
481256018022 |
Screw | Na dotaz | Zadat poptávku | |
| 910 8 WHR93319 |
C00336668
481256018023 |
Screw | Na dotaz | Zadat poptávku | |
| 965 0 WHR93319 |
C00342336
481244229065 |
Cover white | Na dotaz | Zadat poptávku | |
| 965 3 WHR93319 |
C00330243
481246048886 |
Cover | Na dotaz | Zadat poptávku | |
| 999 WHR93319 |
C00761316 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
