WHIRLPOOL WBS4345 NFX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WBS4345 NFX |
| Kód 12NC: | 850567811040 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás

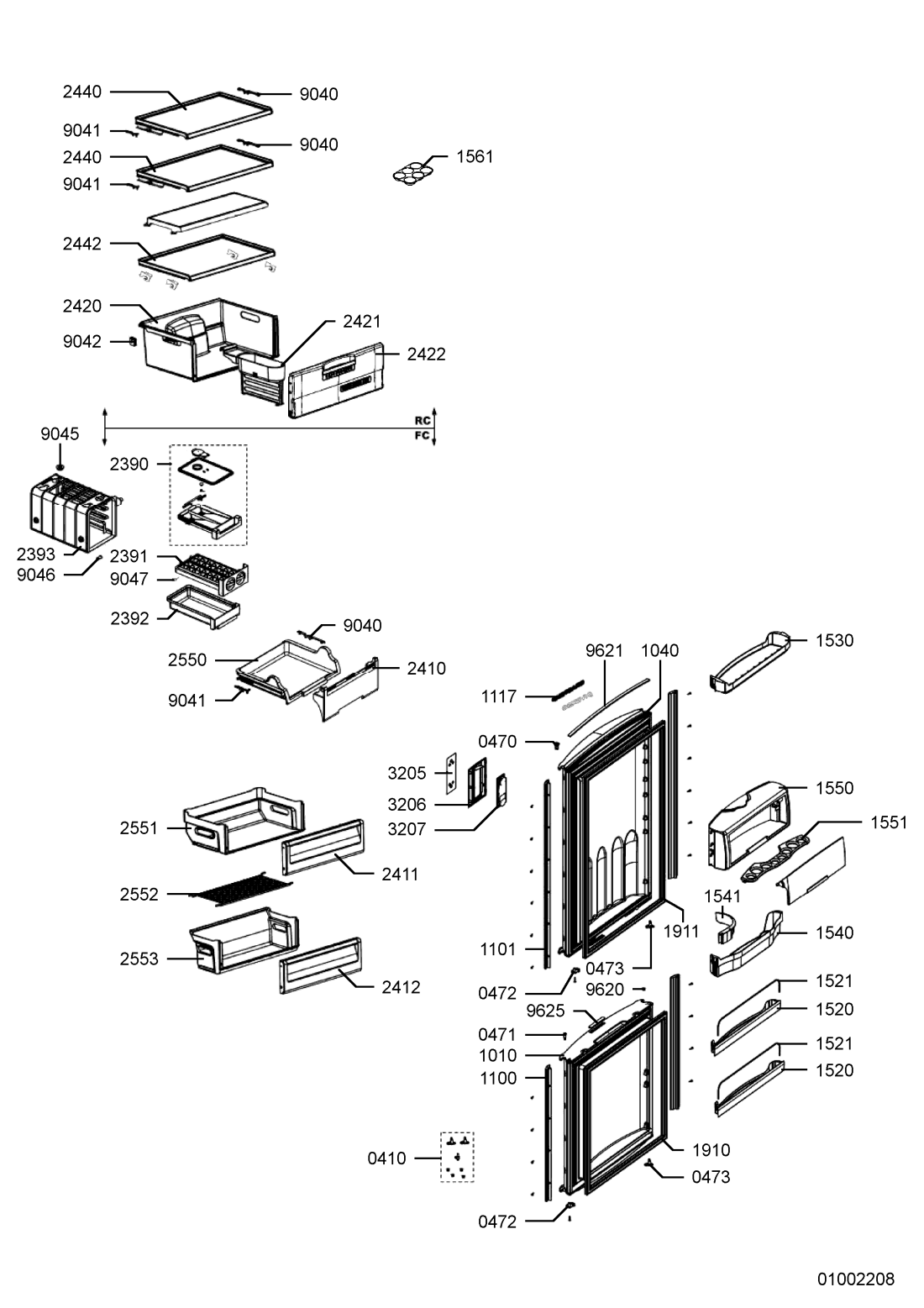

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0110 WHR18417 |
C00330459
481246218288 |
Adjust. foot IN | Na dotaz | Zadat poptávku | |
| 0120 WHR18417 |
C00332374
481252878071 |
Roller | Na dotaz | Zadat poptávku | |
| 0121 WHR18417 |
C00332375
481252878072 |
Roller | Na dotaz | Zadat poptávku | |
| 0122 WHR18417 |
C00332719
481253548034 |
Shaft roller | Na dotaz | Zadat poptávku | |
| 0400 WHR18417 |
C00330766
481246279929 |
kryt | 108 Kč
€ 4.70 |
||
| 0401 WHR18417 |
C00329725
481241719285 |
pant | 389 Kč
€ 17.10 |
||
| 0402 WHR18417 |
C00488941
481241718993 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 0403 WHR18417 |
C00329724
481241719284 |
pant | 525 Kč
€ 23.10 |
||
| 0404 WHR18417 |
C00329738
481241719354 |
Pin hinge right | Na dotaz | Zadat poptávku | |
| 0410 WHR18417 |
C00394194
480132102139 |
Kit Reversion | Na dotaz | Zadat poptávku | |
| 0470 WHR18417 |
C00394309
480132102399 |
Bushing | Na dotaz | Zadat poptávku | |
| 0471 WHR18417 |
C00332696
481253288051 |
Bushing IN | Na dotaz | Zadat poptávku | |
| 0472 WHR18417 |
C00317580
481244688153 |
Pouzdro | 407 Kč
€ 17.90 |
||
| 0473 WHR18417 |
C00320235
481253288096 |
PANT | 65 Kč
€ 2.90 |
||
| 0500 WHR18417 |
C00394176
480132102118 |
Cover left | Na dotaz | Zadat poptávku | |
| 0501 WHR18417 |
C00394177
480132102119 |
Cover right | Na dotaz | Zadat poptávku | |
| 0709 WHR18417 |
C00329069
481240449601 |
Support anti-bacterial filter | Na dotaz | Zadat poptávku | |
| 0860 WHR18417 |
C00327081
481222608024 |
Pin rail | Na dotaz | Zadat poptávku | |
| 0861 WHR18417 |
C00329054
481240448923 |
Support | Na dotaz | Zadat poptávku | |
| 0862 WHR18417 |
C00332711
481253538083 |
Pin | Na dotaz | Zadat poptávku | |
| 1010 WHR18417 |
C00394142
480132101891 |
Door freezer | Na dotaz | Zadat poptávku | |
| 1040 WHR18417 |
C00394361
480132102571 |
Door refrigerator | Na dotaz | Zadat poptávku | |
| 1053 WHR18417 |
C00329739
481241719355 |
Pin hinge left | Na dotaz | Zadat poptávku | |
| 1100 WHR18417 |
C00394234
480132102213 |
Door handle freezer | Na dotaz | Zadat poptávku | |
| 1101 WHR18417 |
C00394235
480132102214 |
Door handle refrigerator | Na dotaz | Zadat poptávku | |
| 1117 WHR18417 |
C00480209
481245918218 |
logo Whirlpool | 429 Kč
€ 18.90 |
||
| 1520 WHR18417 |
C00323629
480132102215 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1521 WHR18417 |
C00330811
481246418185 |
Hoop door dairy | Na dotaz | Zadat poptávku | |
| 1530 WHR18417 |
C00315160
480132102094 |
Police dveří horní | Na dotaz | Zadat poptávku | |
| 1540 WHR18417 |
C00319424
480132102216 |
Police lahví | 1 209 Kč
€ 53.10 |
||
| 1541 WHR18417 |
C00327684
481241828728 |
Separator bottles | Na dotaz | Zadat poptávku | |
| 1550 WHR18417 |
C00393974
480132100501 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1551 WHR18417 |
C00394240
480132102225 |
Tray Door dairy | Na dotaz | Zadat poptávku | |
| 1561 WHR18417 |
C00330418
481246088297 |
Rack egg | Na dotaz | Zadat poptávku | |
| 1910 WHR18417 |
C00323630
480132102217 |
Těsnění dveří magnetické | 1 764 Kč
€ 77.50 |
||
| 1911 WHR18417 |
C00344961
480132102218 |
Magnetic seal Door. | Na dotaz | Zadat poptávku | |
| 2390 WHR18417 |
C00327685
481241828731 |
Tank | Na dotaz | Zadat poptávku | |
| 2391 WHR18417 |
C00314429
481269028035 |
vyrobnik ledu | Na dotaz | Zadat poptávku | |
| 2392 WHR18417 |
C00394241
480132102226 |
Tray Ice maker | Na dotaz | Zadat poptávku | |
| 2393 WHR18417 |
C00329014
481240438733 |
Support ice maker | Na dotaz | Zadat poptávku | |
| 2410 WHR18417 |
C00323216
480132100174 |
Cover Drawer | Na dotaz | Zadat poptávku | |
| 2411 WHR18417 |
C00327702
481241828883 |
Front drawer | Na dotaz | Zadat poptávku | |
| 2412 WHR18417 |
C00394242
480132102227 |
Front panel Drawer | Na dotaz | Zadat poptávku | |
| 2420 WHR18417 |
C00327767
481241829967 |
Crisper | Na dotaz | Zadat poptávku | |
| 2421 WHR18417 |
C00345033
480132102221 |
Separator Crisper. | Na dotaz | Zadat poptávku | |
| 2422 WHR18417 |
C00394236
480132102219 |
Front panel Crisper | Na dotaz | Zadat poptávku | |
| 2440 WHR18417 |
C00331203
481245088266 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 2442 WHR18417 |
C00331208
481245088325 |
Shelf | Na dotaz | Zadat poptávku | |
| 2550 WHR18417 |
C00319354
481241848799 |
zasuvka na mrazaku | 1 779 Kč
€ 78.20 |
||
| 2551 WHR18417 |
C00327703
481241828884 |
Drawer | Na dotaz | Zadat poptávku | |
| 2552 WHR18417 |
C00331209
481245088326 |
Grid freezer | Na dotaz | Zadat poptávku | |
| 2553 WHR18417 |
C00327706
481241828888 |
Drawer | Na dotaz | Zadat poptávku | |
| 2560 WHR18417 |
C00394363
480132102573 |
Filter | Na dotaz | Zadat poptávku | |
| 2610 WHR18417 |
C00394203
480132102151 |
Rail | Na dotaz | Zadat poptávku | |
| 3205 WHR18417 |
C00394362
480132102572 |
Reflector | Na dotaz | Zadat poptávku | |
| 3206 WHR18417 |
C00394254
480132102243 |
Frame Control panel | Na dotaz | Zadat poptávku | |
| 3207 WHR18417 |
C00394245
480132102231 |
Control panel | Na dotaz | Zadat poptávku | |
| 4020 WHR18417 |
C00410735
482000007850 |
Compressor EGM90CLC 220-240V50H | Na dotaz | Zadat poptávku | |
| 4021 WHR18417 |
C00377666
481241818687 |
Tray Compressor | Na dotaz | Zadat poptávku | |
| 4022 WHR18417 |
C00394237
480132102222 |
Base Compressor | Na dotaz | Zadat poptávku | |
| 4200 WHR18417 |
C00326766
481212108251 |
Capacitor 5#f 380V | Na dotaz | Zadat poptávku | |
| 4400 WHR18417 |
C00311429
481236118635 |
motor ventilatoru | 3 403 Kč
€ 149.60 |
||
| 4401 WHR18417 |
C00394246
480132102232 |
Damper Motor fan | Na dotaz | Zadat poptávku | |
| 4402 WHR18417 |
C00394247
480132102233 |
Motor fan | Na dotaz | Zadat poptávku | |
| 4405 WHR18417 |
C00394248
480132102234 |
Support Damper | Na dotaz | Zadat poptávku | |
| 4407 WHR18417 |
C00394250
480132102236 |
Panel Air diffuser | Na dotaz | Zadat poptávku | |
| 4408 WHR18417 |
C00345146
480132102237 |
Cover air diffuser | Na dotaz | Zadat poptávku | |
| 4409 WHR18417 |
C00394251
480132102238 |
Cover | Na dotaz | Zadat poptávku | |
| 4410 WHR18417 |
C00314645
481240418458 |
Support motor freezer | Na dotaz | Zadat poptávku | |
| 4411 WHR18417 |
C00323330
480132100638 |
Support motor | Na dotaz | Zadat poptávku | |
| 4412 WHR18417 |
C00314795
480132102274 |
vrtule ventilatoru | 540 Kč
€ 23.70 |
||
| 4420 WHR18417 |
C00323329
480132100637 |
Support Motor fan | Na dotaz | Zadat poptávku | |
| 4430 WHR18417 |
C00345165
480132102114 |
Support Motor fan. | Na dotaz | Zadat poptávku | |
| 4510 WHR18417 |
C00341149
481251158022 |
Topení led. | 3 038 Kč
€ 133.50 |
||
| 4800 WHR18417 |
C00317517
481201978857 |
Cable harness | Na dotaz | Zadat poptávku | |
| 4801 WHR18417 |
C00394332
480132102428 |
Cable harness + Sensor | Na dotaz | Zadat poptávku | |
| 5260 WHR18417 |
C00394252
480132102239 |
control board | Na dotaz | Zadat poptávku | |
| 5575 WHR18417 |
C00329067
481240449597 |
Support sensor | Na dotaz | Zadat poptávku | |
| 5640 WHR18417 |
C00320199
480132100497 |
termostat | Na dotaz | Zadat poptávku | |
| 6140 WHR18417 |
C00394262
480132102256 |
Protect motor | Na dotaz | Zadat poptávku | |
| 6200 WHR18417 |
C00345708
481246818394 |
Switch lamp | Na dotaz | Zadat poptávku | |
| 6510 WHR18417 |
C00326816
481213418034 |
Lamp 240V-25W | Na dotaz | Zadat poptávku | |
| 6520 WHR18417 |
C00327124
481225518277 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 6560 WHR18417 |
C00326817
481213418037 |
Protector lamp | Na dotaz | Zadat poptávku | |
| 7430 WHR18417 |
C00394253
480132102241 |
Cover Air diffuser | Na dotaz | Zadat poptávku | |
| 7431 WHR18417 |
C00394209
480132102158 |
Air diffuser | Na dotaz | Zadat poptávku | |
| 7434 WHR18417 |
C00328138
481244029495 |
Air guide | Na dotaz | Zadat poptávku | |
| 7450 WHR18417 |
C00318465
481251138327 |
Evaporator kit | Na dotaz | Zadat poptávku | |
| 7453 WHR18417 |
C00329068
481240449598 |
Bracket | Na dotaz | Zadat poptávku | |
| 7460 WHR18417 |
C00394210
480132102159 |
Cover Evaporator front | Na dotaz | Zadat poptávku | |
| 7461 WHR18417 |
C00342909
481244008038 |
Cover air diffuser | Na dotaz | Zadat poptávku | |
| 7462 WHR18417 |
C00328141
481244029516 |
Cover evaporator rear | Na dotaz | Zadat poptávku | |
| 7620 WHR18417 |
C00327360
481231019208 |
Filter anti-bacterial kit | Na dotaz | Zadat poptávku | |
| 7640 WHR18417 |
C00313426
481248028088 |
Filtr - patronka | 211 Kč
€ 9.30 |
||
| 9040 WHR18417 |
C00319419
481240449842 |
Spona | 158 Kč
€ 6.90 |
||
| 9041 WHR18417 |
C00329132
481240449843 |
Kolejnice levá | 592 Kč
€ 26.00 |
||
| 9042 WHR18417 |
C00482836
481240418307 |
Slide | Na dotaz | Zadat poptávku | |
| 9045 WHR18417 |
C00332346
481252648192 |
příchytka | 224 Kč
€ 9.80 |
||
| 9046 WHR18417 |
C00327080
481222608023 |
Pin | Na dotaz | Zadat poptávku | |
| 9047 WHR18417 |
C00394211
480132102161 |
Spring | Na dotaz | Zadat poptávku | |
| 9620 WHR18417 |
C00332699
481253288065 |
Cover bushing IN | Na dotaz | Zadat poptávku | |
| 9621 WHR18417 |
C00330373
481246058444 |
Cover Door | Na dotaz | Zadat poptávku | |
| 9625 WHR18417 |
C00394239
480132102224 |
Cover Door | Na dotaz | Zadat poptávku | |
| 9650 WHR18417 |
C00330767
481246279931 |
Cover IN | Na dotaz | Zadat poptávku | |
| 9651 WHR18417 |
C00330765
481246279928 |
cover IN | Na dotaz | Zadat poptávku | |
