WHIRLPOOL WTH4910 NFW
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WTH4910 NFW |
| Kód 12NC/I.C. kód: | 850143311100 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 850143311101 |
Potřebujete servis? Jsme tady pro Vás

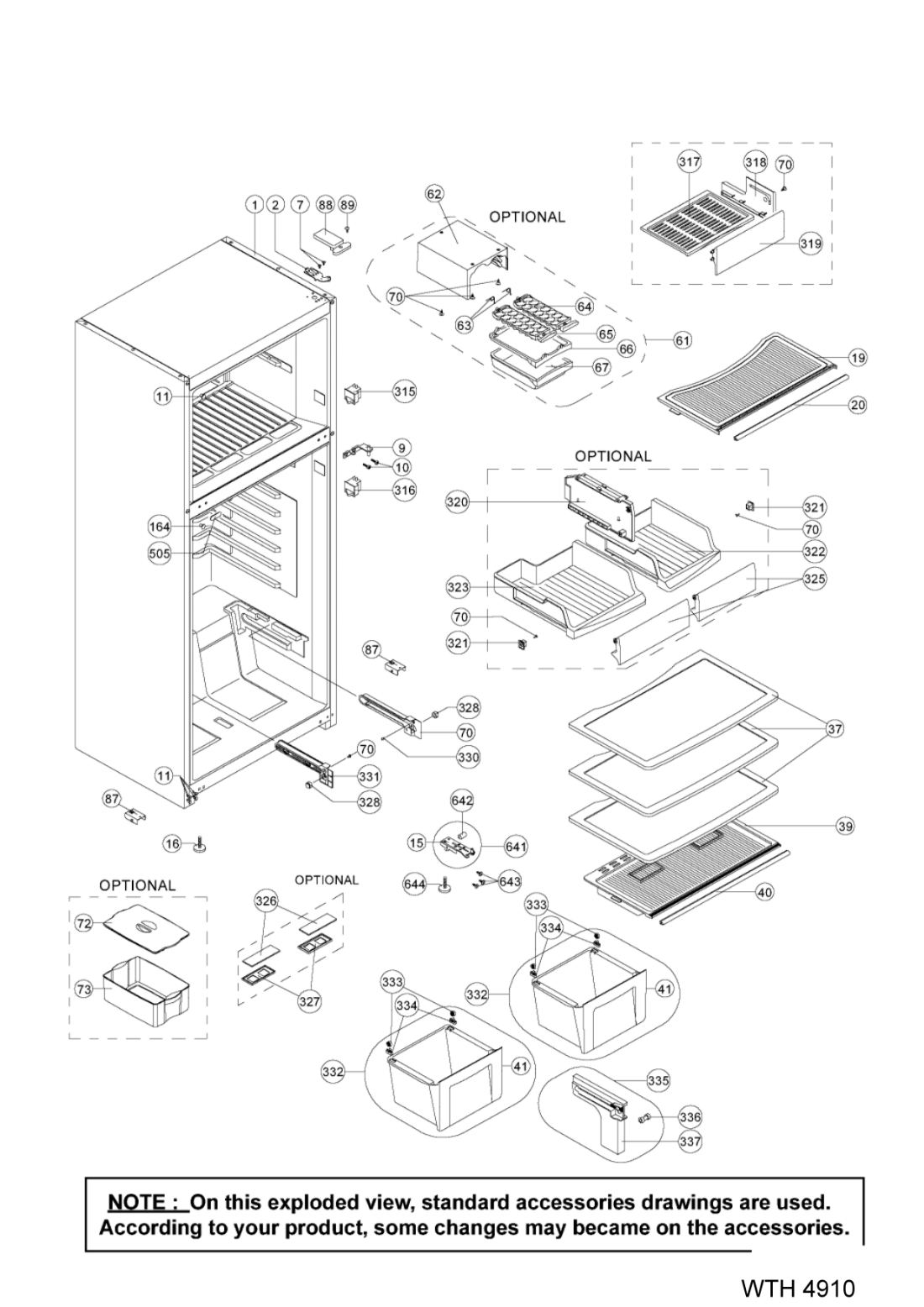

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 WHR17447 |
C00410595
482000007554 |
Hinge upper right | Na dotaz | Zadat poptávku | |
| 002B WHR17447 |
C00412861
482000012197 |
Hinge upper left | Na dotaz | Zadat poptávku | |
| 005 WHR17447 |
C00417043
482000020243 |
Screw KA 40x8 | Na dotaz | Zadat poptávku | |
| 007 WHR17447 |
C00416393
482000019077 |
Screw M5x14 | Na dotaz | Zadat poptávku | |
| 009 WHR17447 |
C00344983
482000007555 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 010 WHR17447 |
C00416396
482000019080 |
Screw TT M5x14 | Na dotaz | Zadat poptávku | |
| 011 WHR17447 |
C00394348
480132102462 |
Cap | Na dotaz | Zadat poptávku | |
| 012 WHR17447 |
C00393745
480131100429 |
Cap | Na dotaz | Zadat poptávku | |
| 016 WHR17447 |
C00410596
482000007556 |
Foot fix | Na dotaz | Zadat poptávku | |
| 019 WHR17447 |
C00377686
481241829855 |
Shelf | Na dotaz | Zadat poptávku | |
| 020 WHR17447 |
C00377817
481246488052 |
Trim Shelf | Na dotaz | Zadat poptávku | |
| 022 WHR17447 |
C00314888
484000000984 |
Lamp E14/220-24/15W T22 300°C | Na dotaz | Zadat poptávku | |
| 023 WHR17447 |
C00327125
481225518278 |
Holder lamp E14 | Na dotaz | Zadat poptávku | |
| 025 WHR17447 |
C00416110
482000018670 |
Screw 40x13 YSB-R-C-INOX | Na dotaz | Zadat poptávku | |
| 030 WHR17447 |
C00345723
481249468049 |
Spring knob thermostat | Na dotaz | Zadat poptávku | |
| 037 WHR17447 |
C00417171
482000020583 |
Glass shelf ref. frame wh | Na dotaz | Zadat poptávku | |
| 039 WHR17447 |
C00403012
481241829857 |
Cover plate crisper | Na dotaz | Zadat poptávku | |
| 040 WHR17447 |
C00405045
481246488054 |
Trim Shelf | Na dotaz | Zadat poptávku | |
| 041 WHR17447 |
C00403010
481241829854 |
Crisper | Na dotaz | Zadat poptávku | |
| 061 WHR17447 |
C00416977
482000020156 |
Tray icematic | Na dotaz | Zadat poptávku | |
| 062 WHR17447 |
C00344990
482000010024 |
Cover | Na dotaz | Zadat poptávku | |
| 063 WHR17447 |
C00345724
481249468051 |
Spring | Na dotaz | Zadat poptávku | |
| 064 WHR17447 |
C00327732
481241829845 |
Icecube tray right | Na dotaz | Zadat poptávku | |
| 065 WHR17447 |
C00327733
481241829846 |
Icecube tray left | Na dotaz | Zadat poptávku | |
| 066 WHR17447 |
C00345003
480132102186 |
Bracket ice maker | Na dotaz | Zadat poptávku | |
| 067 WHR17447 |
C00345069
480132102184 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 070 WHR17447 |
C00410597
482000007557 |
Screw Inox | Na dotaz | Zadat poptávku | |
| 087 WHR17447 |
C00331304
481245228758 |
Cover wheel | Na dotaz | Zadat poptávku | |
| 088 WHR17447 |
C00413956
482000014056 |
Cover hinge top | Na dotaz | Zadat poptávku | |
| 107 WHR17447 |
C00327556
481228238245 |
Thermostat | Na dotaz | Zadat poptávku | |
| 151 WHR17447 |
C00312732
481244688154 |
Bushing | Na dotaz | Zadat poptávku | |
| 152 WHR17447 |
C00393729
480131100406 |
Cap | Na dotaz | Zadat poptávku | |
| 153 WHR17447 |
C00417183
482000020611 |
Door freezer wh | Na dotaz | Zadat poptávku | |
| 154 WHR17447 |
C00411878
482000010081 |
Nameplate Whirlpool | Na dotaz | Zadat poptávku | |
| 155 WHR17447 |
C00417184
482000020612 |
Door refriger. wh | Na dotaz | Zadat poptávku | |
| 158 WHR17447 |
C00403007
481241829842 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 159 WHR17447 |
C00327731
481241829844 |
Egg trim | Na dotaz | Zadat poptávku | |
| 164 WHR17447 |
C00345186
482000007773 |
Cap for hole | Na dotaz | Zadat poptávku | |
| 164B WHR17447 |
C00416960
482000020138 |
Cap | Na dotaz | Zadat poptávku | |
| 171 WHR17447 |
C00393958
480132100252 |
Catcher right | Na dotaz | Zadat poptávku | |
| 172 WHR17447 |
C00416980
482000020159 |
Screw KA 35x12 | Na dotaz | Zadat poptávku | |
| 173 WHR17447 |
C00393959
480132100253 |
Catcher left | Na dotaz | Zadat poptávku | |
| 174 WHR17447 |
C00408106
482000002937 |
Stop door | Na dotaz | Zadat poptávku | |
| 175 WHR17447 |
C00403006
481241829839 |
Door dairy | Na dotaz | Zadat poptávku | |
| 175 WHR17447 |
C00377685
481241829841 |
Door dairy | Na dotaz | Zadat poptávku | |
| 175 WHR17447 |
C00377687
481241829858 |
Door dairy | Na dotaz | Zadat poptávku | |
| 176 WHR17447 |
C00327730
481241829843 |
Separator | Na dotaz | Zadat poptávku | |
| 177 WHR17447 |
C00403014
481241829861 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 189 WHR17447 |
C00411874
482000010077 |
Bushing | Na dotaz | Zadat poptávku | |
| 201 WHR17447 |
C00405514
481251148457 |
Condenser | Na dotaz | Zadat poptávku | |
| 202 WHR17447 |
C00405044
481246488053 |
Trim condenser | Na dotaz | Zadat poptávku | |
| 203 WHR17447 |
C00281791
480131100426 |
Spacer | Na dotaz | Zadat poptávku | |
| 204 WHR17447 |
C00329057
481240448969 |
Clamp fixation | Na dotaz | Zadat poptávku | |
| 205 WHR17447 |
C00402055
481240449788 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 207 WHR17447 |
C00330791
481246368025 |
Resonator | Na dotaz | Zadat poptávku | |
| 210 WHR17447 |
C00410602
482000007564 |
Cable mains 2.1 m | Na dotaz | Zadat poptávku | |
| 211 WHR17447 |
C00400379
481221470238 |
Relay, Overload prot. Comp.NBU1118Y | Na dotaz | Zadat poptávku | |
| 212 WHR17447 |
C00407422
482000001629 |
Capacitor | Na dotaz | Zadat poptávku | |
| 213 WHR17447 |
C00416424
482000019109 |
Screw ST 4.2x9.5 | Na dotaz | Zadat poptávku | |
| 213 WHR17447 |
C00513220
482000018662 |
Screw 4.2x9.5 YSB-C | Na dotaz | Zadat poptávku | |
| 214 WHR17447 |
C00344934
480132102178 |
Tray Compressor | Na dotaz | Zadat poptávku | |
| 214 WHR17447 |
C00410615
482000007585 |
Cup thaw water | Na dotaz | Zadat poptávku | |
| 215 WHR17447 |
C00269997
480132103356 |
Dryer | Na dotaz | Zadat poptávku | |
| 216 WHR17447 |
C00513218
482000007565 |
Holder | Na dotaz | Zadat poptávku | |
| 217 WHR17447 |
C00401410
481236039064 |
Compressor NBU 1118 Y 4MF | Na dotaz | Zadat poptávku | |
| 218 WHR17447 |
C00405005
481246448228 |
Base compressor | Na dotaz | Zadat poptávku | |
| 224 WHR17447 |
C00416109
482000018669 |
Screw KA50x14 YSB-F | Na dotaz | Zadat poptávku | |
| 225 WHR17447 |
C00287942
480132103191 |
Tube LOKRING (105*6*0,7)TYPE B | Na dotaz | Zadat poptávku | |
| 226 WHR17447 |
C00306237
480132103192 |
Tube | Na dotaz | Zadat poptávku | |
| 227 WHR17447 |
C00330654
481246238225 |
Roller | Na dotaz | Zadat poptávku | |
| 228 WHR17447 |
C00280300
480132101057 |
Axle Roller | Na dotaz | Zadat poptávku | |
| 237 WHR17447 |
C00318914
481228210311 |
Timer Defrost | Na dotaz | Zadat poptávku | |
| 238 WHR17447 |
C00345077
482000001728 |
Cover plate | Na dotaz | Zadat poptávku | |
| 314 WHR17447 |
C00285193
480132102179 |
ZÁTKA | Na dotaz | Zadat poptávku | |
| 315 WHR17447 |
C00345050
480132102174 |
Switch door freezer | Na dotaz | Zadat poptávku | |
| 316 WHR17447 |
C00345094
480132102175 |
Switch door refrigerator | Na dotaz | Zadat poptávku | |
| 317 WHR17447 |
C00403011
481241829856 |
Shelf | Na dotaz | Zadat poptávku | |
| 318 WHR17447 |
C00345088
482000007566 |
Partition | Na dotaz | Zadat poptávku | |
| 319 WHR17447 |
C00403008
481241829847 |
Flap f. freezing | Na dotaz | Zadat poptávku | |
| 320 WHR17447 |
C00345243
482000002946 |
Separator | Na dotaz | Zadat poptávku | |
| 321 WHR17447 |
C00393738
480131100419 |
Fixation Drawer | Na dotaz | Zadat poptávku | |
| 322 WHR17447 |
C00403009
481241829852 |
Drawer right | Na dotaz | Zadat poptávku | |
| 323 WHR17447 |
C00327736
481241829851 |
Drawer left | Na dotaz | Zadat poptávku | |
| 325 WHR17447 |
C00408112
482000002943 |
Flap front | Na dotaz | Zadat poptávku | |
| 326 WHR17447 |
C00405258
481248058396 |
Filter | Na dotaz | Zadat poptávku | |
| 327 WHR17447 |
C00281775
480132102183 |
FILTR HOLDER | Na dotaz | Zadat poptávku | |
| 328 WHR17447 |
C00408262
482000003267 |
Roller | Na dotaz | Zadat poptávku | |
| 329 WHR17447 |
C00408270
482000003275 |
Rail for basket right | Na dotaz | Zadat poptávku | |
| 331 WHR17447 |
C00408271
482000003276 |
Rail for basket left | Na dotaz | Zadat poptávku | |
| 332 WHR17447 |
C00417175
482000020598 |
Crisper | Na dotaz | Zadat poptávku | |
| 333 WHR17447 |
C00408263
482000003268 |
Kolečko pojezdu koše | 52 Kč
€ 2.10 |
||
| 334 WHR17447 |
C00281752
480132102193 |
PODPĚRA KOLEČKO DRAWER | Na dotaz | Zadat poptávku | |
| 335 WHR17447 |
C00417176
482000020599 |
Partition Crisper | Na dotaz | Zadat poptávku | |
| 336 WHR17447 |
C00408264
482000003269 |
Roller | Na dotaz | Zadat poptávku | |
| 337 WHR17447 |
C00408272
482000003277 |
Rail for basket | Na dotaz | Zadat poptávku | |
| 400 WHR17447 |
C00417177
482000020600 |
Evaporator kit | Na dotaz | Zadat poptávku | |
| 401 WHR17447 |
C00269885
481251138361 |
VÝPARNÍK MRAZNIČKY MTZ521NF/HA | Na dotaz | Zadat poptávku | |
| 402 WHR17447 |
C00269914
481211528011 |
TERMOSTAT BIMETALOVÝ | Na dotaz | Zadat poptávku | |
| 406 WHR17447 |
C00417178
482000020601 |
Holder Evaporator kit | Na dotaz | Zadat poptávku | |
| 407 WHR17447 |
C00417179
482000020602 |
Air guide freezer Multiflow | Na dotaz | Zadat poptávku | |
| 408 WHR17447 |
C00408268
482000003273 |
Air guide | Na dotaz | Zadat poptávku | |
| 409 WHR17447 |
C00327581
481228678013 |
Impeller | Na dotaz | Zadat poptávku | |
| 410 WHR17447 |
C00345722
481249298049 |
Spring ventilator | Na dotaz | Zadat poptávku | |
| 411 WHR17447 |
C00402053
481240449773 |
Absorber | Na dotaz | Zadat poptávku | |
| 412 WHR17447 |
C00329027
481240438802 |
Support motor | Na dotaz | Zadat poptávku | |
| 413 WHR17447 |
C00328834
481236158483 |
Motor fan | Na dotaz | Zadat poptávku | |
| 414 WHR17447 |
C00330795
481246368033 |
Damper | Na dotaz | Zadat poptávku | |
| 415 WHR17447 |
C00408269
482000003274 |
Cover plate | Na dotaz | Zadat poptávku | |
| 420 WHR17447 |
C00417050
482000020252 |
Box therm. cpl. | Na dotaz | Zadat poptávku | |
| 421 WHR17447 |
C00281747
480132102203 |
KRABICE TERMOSTAT | Na dotaz | Zadat poptávku | |
| 422 WHR17447 |
C00411999
482000010375 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 423 WHR17447 |
C00417029
482000020225 |
Screw KA 40x8 | Na dotaz | Zadat poptávku | |
| 424 WHR17447 |
C00408261
482000003266 |
Air grid | Na dotaz | Zadat poptávku | |
| 425 WHR17447 |
C00345085
480132102451 |
Housing Damper | Na dotaz | Zadat poptávku | |
| 426 WHR17447 |
C00330970
481246668935 |
Damper Thermostat | Na dotaz | Zadat poptávku | |
| 427 WHR17447 |
C00331532
481246688956 |
Insulator | Na dotaz | Zadat poptávku | |
| 428 WHR17447 |
C00408274
482000003279 |
Air diffuser | Na dotaz | Zadat poptávku | |
| 429 WHR17447 |
C00328842
481238028035 |
Reflector | Na dotaz | Zadat poptávku | |
| 430 WHR17447 |
C00328517
481232128492 |
Cable harness | Na dotaz | Zadat poptávku | |
| 431 WHR17447 |
C00344910
482000014123 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 432 WHR17447 |
C00330574
481246228886 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 449 WHR17447 |
C00345179
480131100432 |
Cap | Na dotaz | Zadat poptávku | |
| 459 WHR17447 |
C00413983
482000014122 |
Gasket.fre.door | Na dotaz | Zadat poptávku | |
| 460 WHR17447 |
C00413982
482000014121 |
Gasket ref.door | Na dotaz | Zadat poptávku | |
| 463 WHR17447 |
C00416966
482000020144 |
Screw TT M5x20 | Na dotaz | Zadat poptávku | |
| 499 WHR17447 |
C00345029
482000001630 |
Thermal fuse | Na dotaz | Zadat poptávku | |
| 505 WHR17447 |
C00345169
480132102463 |
Cap for hole hinge middle | Na dotaz | Zadat poptávku | |
| 533 WHR17447 |
C00400803
481225928965 |
Heating element | Na dotaz | Zadat poptávku | |
| 547 WHR17447 |
C00281793
480132102441 |
Foot rear | Na dotaz | Zadat poptávku | |
| 639 WHR17447 |
C00416967
482000020145 |
Screw ST 4.2x12 | Na dotaz | Zadat poptávku | |
| 640 WHR17447 |
C00416968
482000020146 |
Screw TT M5x16 | Na dotaz | Zadat poptávku | |
| 641 WHR17447 |
C00408110
482000002941 |
Hinge lower (with wheel) | Na dotaz | Zadat poptávku | |
| 642 WHR17447 |
C00411852
482000010035 |
Wheel | Na dotaz | Zadat poptávku | |
| 643 WHR17447 |
C00416997
482000020178 |
Screw TT M5x25 | Na dotaz | Zadat poptávku | |
| 644 WHR17447 |
C00411875
482000010078 |
Foot fix | Na dotaz | Zadat poptávku | |
| 695 WHR17447 |
C00413961
482000014066 |
Cover left | Na dotaz | Zadat poptávku | |
| 696 WHR17447 |
C00413962
482000014067 |
Cover right | Na dotaz | Zadat poptávku | |
| 999 WHR17447 |
C00550950 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
