WHIRLPOOL WTH5244 NFPW
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WTH5244 NFPW |
| Kód 12NC: | 850144611120 |
| I.C. kód: | 850144611121 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 850144611120, 850144611122 |
Potřebujete servis? Jsme tady pro Vás

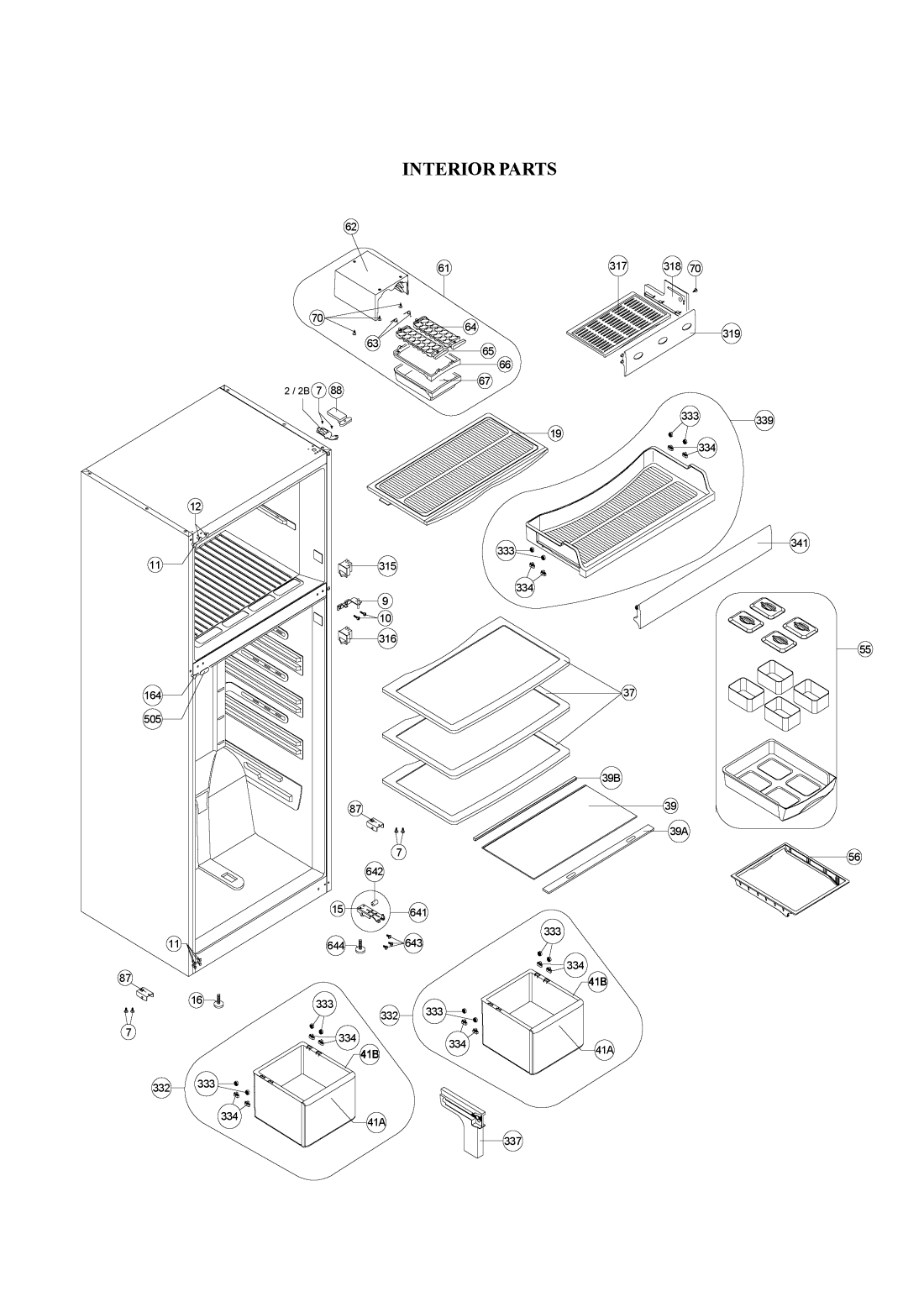

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 WHR17467 |
C00410595
482000007554 |
Hinge upper right | Na dotaz | Zadat poptávku | |
| 002 WHR17467 |
C00412861
482000012197 |
Hinge upper left | Na dotaz | Zadat poptávku | |
| 009 WHR17467 |
C00344983
482000007555 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 011 WHR17467 |
C00394348
480132102462 |
Cap | Na dotaz | Zadat poptávku | |
| 011 WHR17467 |
C00394456
480132103405 |
Cap | Na dotaz | Zadat poptávku | |
| 012 WHR17467 |
C00393745
480131100429 |
Cap | Na dotaz | Zadat poptávku | |
| 015,641 WHR17467 |
C00416969
482000020147 |
Hinge lower with wheel | Na dotaz | Zadat poptávku | |
| 016 WHR17467 |
C00345128
482000013074 |
Adjust. foot M8x35 Grey | Na dotaz | Zadat poptávku | |
| 019 WHR17467 |
C00417387
482000021097 |
Shelf Freezing | Na dotaz | Zadat poptávku | |
| 022 WHR17467 |
C00314888
484000000984 |
Lamp E14/220-24/15W T22 300°C | Na dotaz | Zadat poptávku | |
| 037 WHR17467 |
C00394222
480132102176 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 039 WHR17467 |
C00394464
480132103414 |
Crisper cover | Na dotaz | Zadat poptávku | |
| 039A WHR17467 |
C00394460
480132103409 |
Trim Crisper cover | Na dotaz | Zadat poptávku | |
| 039B WHR17467 |
C00394461
480132103411 |
Trim Crisper cover | Na dotaz | Zadat poptávku | |
| 041A WHR17467 |
C00416975
482000020153 |
Crisper front | Na dotaz | Zadat poptávku | |
| 041B WHR17467 |
C00416976
482000020154 |
Crisper back | Na dotaz | Zadat poptávku | |
| 055 WHR17467 |
C00381040
482000020155 |
Tray aroma | Na dotaz | Zadat poptávku | |
| 056 WHR17467 |
C00394421
480132103335 |
Tray | Na dotaz | Zadat poptávku | |
| 062 WHR17467 |
C00344990
482000010024 |
Cover | Na dotaz | Zadat poptávku | |
| 063 WHR17467 |
C00345724
481249468051 |
Spring | Na dotaz | Zadat poptávku | |
| 064 WHR17467 |
C00327732
481241829845 |
Icecube tray right | Na dotaz | Zadat poptávku | |
| 065 WHR17467 |
C00327733
481241829846 |
Icecube tray left | Na dotaz | Zadat poptávku | |
| 066 WHR17467 |
C00345003
480132102186 |
Bracket ice maker | Na dotaz | Zadat poptávku | |
| 067 WHR17467 |
C00345069
480132102184 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 074 WHR17467 |
C00394453
480132103402 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 087 WHR17467 |
C00331304
481245228758 |
Cover wheel | Na dotaz | Zadat poptávku | |
| 088 WHR17467 |
C00411871
482000010074 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 103 WHR17467 |
C00281792
480132102201 |
Gasket tapes | Na dotaz | Zadat poptávku | |
| 151 WHR17467 |
C00382481
482000019488 |
Bushing | Na dotaz | Zadat poptávku | |
| 152 WHR17467 |
C00394457
480132103406 |
Cap Bushing | Na dotaz | Zadat poptávku | |
| 153 WHR17467 |
C00411872
482000010075 |
Door freezer assy | Na dotaz | Zadat poptávku | |
| 154 WHR17467 |
C00411878
482000010081 |
Nameplate Whirlpool | Na dotaz | Zadat poptávku | |
| 155 WHR17467 |
C00411873
482000010076 |
Door refriger. assy | Na dotaz | Zadat poptávku | |
| 158 WHR17467 |
C00416979
482000020158 |
Door dairy | Na dotaz | Zadat poptávku | |
| 159 WHR17467 |
C00322919
480131100146 |
Egg rack | Na dotaz | Zadat poptávku | |
| 164 WHR17467 |
C00345186
482000007773 |
Cap for hole | Na dotaz | Zadat poptávku | |
| 164B WHR17467 |
C00411855
482000010038 |
Cap door handle edge silver grey | Na dotaz | Zadat poptávku | |
| 171 WHR17467 |
C00413984
482000014124 |
Catcher right | Na dotaz | Zadat poptávku | |
| 173 WHR17467 |
C00306423
482000020160 |
POUZDÉRKO UZÁVĚR DVEŘÍ LEVÝ/CE-W | Na dotaz | Zadat poptávku | |
| 174 WHR17467 |
C00408106
482000002937 |
Stop door | Na dotaz | Zadat poptávku | |
| 175 WHR17467 |
C00416981
482000020161 |
Door dairy, printed | Na dotaz | Zadat poptávku | |
| 175 WHR17467 |
C00495996
482000093416 |
Shelf cheese | Na dotaz | Zadat poptávku | |
| 176 WHR17467 |
C00407419
482000001626 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 177 WHR17467 |
C00416982
482000020162 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 188 WHR17467 |
C00407189
482000000850 |
Door dairy | Na dotaz | Zadat poptávku | |
| 189 WHR17467 |
C00411874
482000010077 |
Bushing | Na dotaz | Zadat poptávku | |
| 193 WHR17467 |
C00416983
482000020163 |
Door dairy freezer, printed | Na dotaz | Zadat poptávku | |
| 201 WHR17467 |
C00306411
482000014065 |
HLAVNÍ CONDANSER | Na dotaz | Zadat poptávku | |
| 203 WHR17467 |
C00345215
482000018659 |
Spacer | Na dotaz | Zadat poptávku | |
| 207 WHR17467 |
C00330791
481246368025 |
Resonator | Na dotaz | Zadat poptávku | |
| 209 WHR17467 |
C00416986
482000020166 |
Mains cable cpl. | Na dotaz | Zadat poptávku | |
| 210 WHR17467 |
C00413990
482000014131 |
Cable mains | Na dotaz | Zadat poptávku | |
| 211 WHR17467 |
C00202847
480132103355 |
Protect motor | Na dotaz | Zadat poptávku | |
| 212 WHR17467 |
C00407422
482000001629 |
Capacitor | Na dotaz | Zadat poptávku | |
| 214 WHR17467 |
C00344934
480132102178 |
Tray Compressor | Na dotaz | Zadat poptávku | |
| 215 WHR17467 |
C00513807
482000019380 |
Dryer | Na dotaz | Zadat poptávku | |
| 216 WHR17467 |
C00513218
482000007565 |
Holder | Na dotaz | Zadat poptávku | |
| 217 WHR17467 |
C00416987
482000020167 |
Compressor NLX13KK3 | Na dotaz | Zadat poptávku | |
| 218 WHR17467 |
C00280285
481246448229 |
TRAVERZA KOMPRESORU CELEK | Na dotaz | Zadat poptávku | |
| 225 WHR17467 |
C00287942
480132103191 |
Tube LOKRING (105*6*0,7)TYPE B | Na dotaz | Zadat poptávku | |
| 226 WHR17467 |
C00306237
480132103192 |
Tube | Na dotaz | Zadat poptávku | |
| 227 WHR17467 |
C00330654
481246238225 |
Roller | Na dotaz | Zadat poptávku | |
| 228 WHR17467 |
C00280300
480132101057 |
Axle Roller | Na dotaz | Zadat poptávku | |
| 242 WHR17467 |
C00416630
482000019381 |
Timer | Na dotaz | Zadat poptávku | |
| 244 WHR17467 |
C00416988
482000020168 |
Cover | Na dotaz | Zadat poptávku | |
| 314 WHR17467 |
C00285193
480132102179 |
ZÁTKA | Na dotaz | Zadat poptávku | |
| 315 WHR17467 |
C00345050
480132102174 |
Switch door freezer | Na dotaz | Zadat poptávku | |
| 316 WHR17467 |
C00345094
480132102175 |
Switch door refrigerator | Na dotaz | Zadat poptávku | |
| 317 WHR17467 |
C00416989
482000020169 |
Shelf fast freez. | Na dotaz | Zadat poptávku | |
| 318 WHR17467 |
C00345088
482000007566 |
Partition | Na dotaz | Zadat poptávku | |
| 319 WHR17467 |
C00495998
482000093418 |
Lid | Na dotaz | Zadat poptávku | |
| 333 WHR17467 |
C00281750
480132102192 |
KOLEČKO DRAWER CHILLER | Na dotaz | Zadat poptávku | |
| 334 WHR17467 |
C00281752
480132102193 |
PODPĚRA KOLEČKO DRAWER | Na dotaz | Zadat poptávku | |
| 337 WHR17467 |
C00281780
480132102189 |
ODDĚLOVAČ PROSTOR BÍLÝ | Na dotaz | Zadat poptávku | |
| 341 WHR17467 |
C00416993
482000020173 |
Cover shelf chil. | Na dotaz | Zadat poptávku | |
| 401 WHR17467 |
C00306238
481251138362 |
FIN EVAPORATOR | Na dotaz | Zadat poptávku | |
| 407 WHR17467 |
C00306398
482000019129 |
VENTILÁTOR S MOTOREM | Na dotaz | Zadat poptávku | |
| 408 WHR17467 |
C00306399
482000020206 |
ODVADĚČ VZDUCHU ÚPLNÝ | Na dotaz | Zadat poptávku | |
| 408 WHR17467 |
C00306439
482000019382 |
ODVADĚČ VZDUCHU ÚPLNÝ | Na dotaz | Zadat poptávku | |
| 409 WHR17467 |
C00306457
482000002948 |
VRTULE | Na dotaz | Zadat poptávku | |
| 411 WHR17467 |
C00306444
482000002956 |
PODPĚRA MOTORU VENTILÁTORU | Na dotaz | Zadat poptávku | |
| 413 WHR17467 |
C00306402
482000002949 |
Motor fan | Na dotaz | Zadat poptávku | |
| 415 WHR17467 |
C00281772
480132102206 |
SPODEK MRAZÁKU | Na dotaz | Zadat poptávku | |
| 415 WHR17467 |
C00417141
482000020380 |
Cover Air guide | Na dotaz | Zadat poptávku | |
| 419 WHR17467 |
C00417013
482000020207 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 420 WHR17467 |
C00416995
482000020175 |
Box therm. cpl. | Na dotaz | Zadat poptávku | |
| 421 WHR17467 |
C00281747
480132102203 |
KRABICE TERMOSTAT | Na dotaz | Zadat poptávku | |
| 424 WHR17467 |
C00281773
480132102204 |
Air guide | Na dotaz | Zadat poptávku | |
| 432 WHR17467 |
C00416996
482000020177 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 434 WHR17467 |
C00377477
481221848159 |
freezer SENSOR | Na dotaz | Zadat poptávku | |
| 435 WHR17467 |
C00394423
480132103341 |
Cover Casing | Na dotaz | Zadat poptávku | |
| 439 WHR17467 |
C00377809
481246378024 |
DAMPER THERMOSTAT | Na dotaz | Zadat poptávku | |
| 443 WHR17467 |
C00405137
481246688968 |
Insulation | Na dotaz | Zadat poptávku | |
| 444 WHR17467 |
C00402160
481240478877 |
Cover | Na dotaz | Zadat poptávku | |
| 445 WHR17467 |
C00306365
481244079281 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 446 WHR17467 |
C00306366
481244079282 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 447 WHR17467 |
C00306361
481244079283 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 448 WHR17467 |
C00394424
480132103342 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 449 WHR17467 |
C00345179
480131100432 |
Cap | Na dotaz | Zadat poptávku | |
| 454 WHR17467 |
C00416985
482000020165 |
Display | Na dotaz | Zadat poptávku | |
| 456 WHR17467 |
C00416631
482000019385 |
Control board | Na dotaz | Zadat poptávku | |
| 459 WHR17467 |
C00413991
482000014132 |
Gasket.fre.door | Na dotaz | Zadat poptávku | |
| 460 WHR17467 |
C00413992
482000014133 |
Gasket ref.door | Na dotaz | Zadat poptávku | |
| 461 WHR17467 |
C00411850
482000010033 |
Door handle | Na dotaz | Zadat poptávku | |
| 464 WHR17467 |
C00411851
482000010034 |
Door handle | Na dotaz | Zadat poptávku | |
| 466 WHR17467 |
C00281783
480132102195 |
MULTIFLOW PRAVY | Na dotaz | Zadat poptávku | |
| 467 WHR17467 |
C00281784
480132102194 |
MULTIFLOW LEVY | Na dotaz | Zadat poptávku | |
| 468 WHR17467 |
C00281785
480132102196 |
MULTIFLOW PŘÍČNÝCH | Na dotaz | Zadat poptávku | |
| 499 WHR17467 |
C00417189
482000020623 |
Thermal fuse 260mm | Na dotaz | Zadat poptávku | |
| 500 WHR17467 |
C00408122
482000002958 |
Support motor | Na dotaz | Zadat poptávku | |
| 505 WHR17467 |
C00345169
480132102463 |
Cap for hole hinge middle | Na dotaz | Zadat poptávku | |
| 533 WHR17467 |
C00318912
481225928966 |
Heating element | Na dotaz | Zadat poptávku | |
| 642 WHR17467 |
C00411852
482000010035 |
Wheel | Na dotaz | Zadat poptávku | |
| 643 WHR17467 |
C00480687
482000093073 |
Screw TT M5x25 | Na dotaz | Zadat poptávku | |
| 695 WHR17467 |
C00394436
480132103361 |
Batten | Na dotaz | Zadat poptávku | |
| 695 WHR17467 |
C00495861
482000093419 |
Cover left | Na dotaz | Zadat poptávku | |
| 696 WHR17467 |
C00495862
482000093420 |
Cover right | Na dotaz | Zadat poptávku | |
