WHIRLPOOL WVG26 UPRIGHT FREEZERS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WVG26 UPRIGHT FREEZERS WP |
| Kód 12NC: | 850461671000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící mrazáky |
| Další podobné modely: | 850461682000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

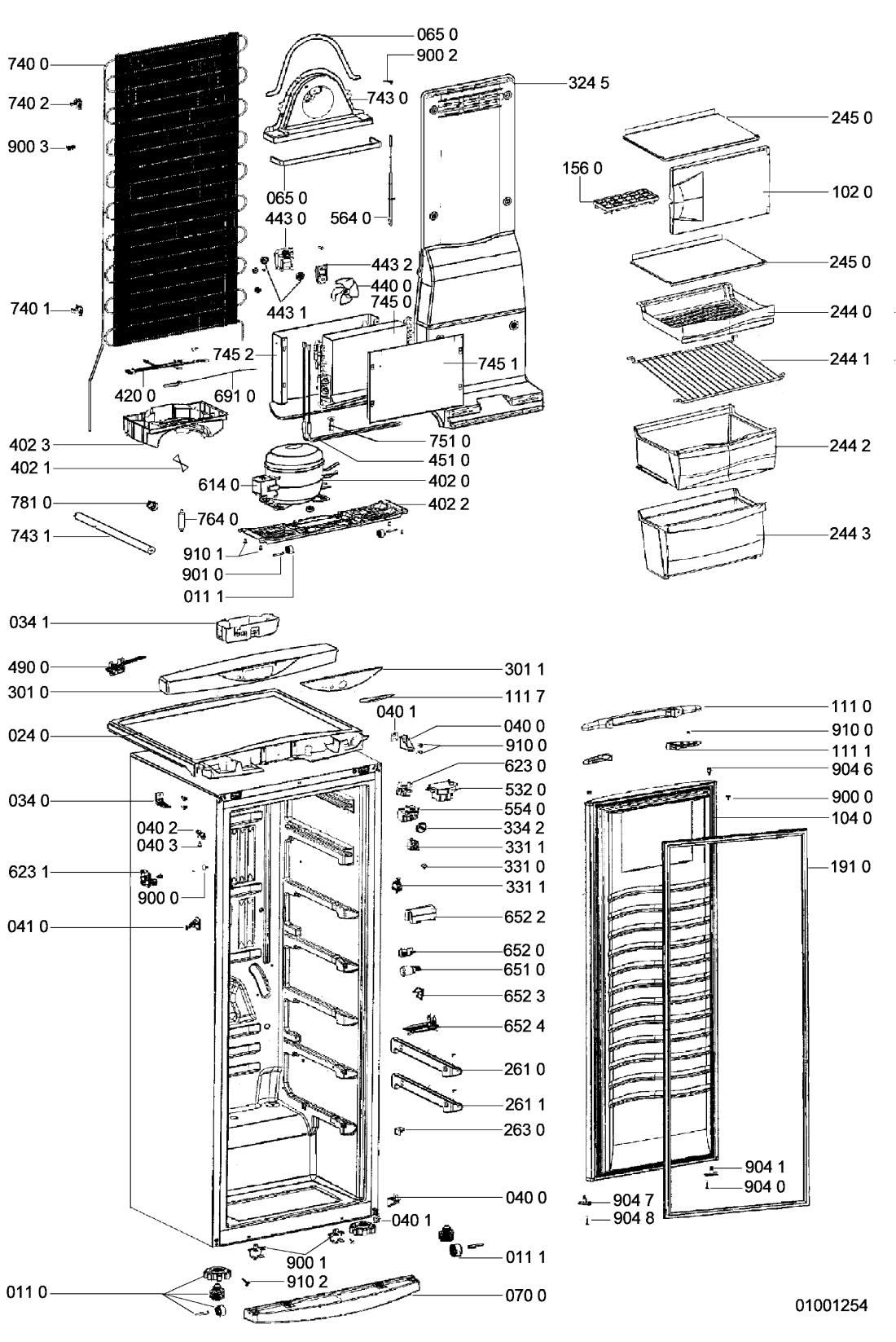

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR93079 |
C00576391
481246248394 |
Adjusting screw.. | Na dotaz | Zadat poptávku | |
| 011 1 WHR93079 |
C00491928
481246238133 |
Roller | Na dotaz | Zadat poptávku | |
| 024 0 WHR93079 |
C00490034
481246038123 |
Upper front white | Na dotaz | Zadat poptávku | |
| 034 0 WHR93079 |
C00482883
481240478518 |
Support | Na dotaz | Zadat poptávku | |
| 034 1 WHR93079 |
C00482517
481221848019 |
Cabinet | Na dotaz | Zadat poptávku | |
| 040 0 WHR93079 |
C00501909
481241719076 |
Hinge,upper + lower | Na dotaz | Zadat poptávku | |
| 040 1 WHR93079 |
C00491670
481241778082 |
Shim | Na dotaz | Zadat poptávku | |
| 040 2 WHR93079 |
C00627159
481241719077 |
Hinge upp DOOR FAST FREEZING. | Na dotaz | Zadat poptávku | |
| 040 3 WHR93079 |
C00492045
481250218584 |
Screw | Na dotaz | Zadat poptávku | |
| 041 0 WHR93079 |
C00493519
481241368015 |
Switch | Na dotaz | Zadat poptávku | |
| 065 0 WHR93079 |
C00576402
481246638065 |
Insulation.. | Na dotaz | Zadat poptávku | |
| 070 0 WHR93079 |
C00576381
481246098038 |
Panel.. | Na dotaz | Zadat poptávku | |
| 102 0 WHR93079 |
C00576178
481241618505 |
Evapor.door.. | Na dotaz | Zadat poptávku | |
| 104 0 WHR93079 |
C00576181
481241618508 |
Door refriger... | Na dotaz | Zadat poptávku | |
| 111 0 WHR93079 |
C00487793
481249848011 |
Handle | Na dotaz | Zadat poptávku | |
| 111 1 WHR93079 |
C00488579
481231018797 |
Insert | Na dotaz | Zadat poptávku | |
| 111 7 WHR93079 |
C00576352
481245918188 |
PLAQUE DE MARQUE.. | Na dotaz | Zadat poptávku | |
| 156 0 WHR93079 |
C00576209
481241848562 |
Icecube tray.. | Na dotaz | Zadat poptávku | |
| 191 0 WHR93079 |
C00576408
481246818127 |
Magnetic seal.. | Na dotaz | Zadat poptávku | |
| 244 0 WHR93079 |
C00576341
481245818723 |
Drawer.. | Na dotaz | Zadat poptávku | |
| 244 1 WHR93079 |
C00487580
481241878081 |
Grid | Na dotaz | Zadat poptávku | |
| 244 2 WHR93079 |
C00485023
481241879757 |
Drawer | Na dotaz | Zadat poptávku | |
| 244 3 WHR93079 |
C00576219
481241879755 |
Drawer.. | Na dotaz | Zadat poptávku | |
| 245 0 WHR93079 |
C00576223
481241879756 |
Glass shelf.. | Na dotaz | Zadat poptávku | |
| 261 0 WHR93079 |
C00576149
481240418304 |
Rail ,right.. | Na dotaz | Zadat poptávku | |
| 261 1 WHR93079 |
C00576150
481240418305 |
Rail ,left.. | Na dotaz | Zadat poptávku | |
| 263 0 WHR93079 |
C00482836
481240418307 |
Slide | Na dotaz | Zadat poptávku | |
| 301 0 WHR93079 |
C00576380
481246098037 |
Panel.. | Na dotaz | Zadat poptávku | |
| 301 1 WHR93079 |
C00576054
481221818014 |
Display. | Na dotaz | Zadat poptávku | |
| 324 5 WHR93079 |
C00484029
481246228346 |
Air diffuser | Na dotaz | Zadat poptávku | |
| 331 0 WHR93079 |
C00740065
481241368014 |
Push button FAST FREEZING | Na dotaz | Zadat poptávku | |
| 331 1 WHR93079 |
C00740066
481241368016 |
Switch FAST FREEZING | Na dotaz | Zadat poptávku | |
| 334 2 WHR93079 |
C00576166
481241278821 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR93079 |
C00527352
481236038784 |
COMPRESSOR FFI 7,5 HAK- 220V | Na dotaz | Zadat poptávku | |
| 402 1 WHR93079 |
C00500771
481236038783 |
Strap ,compressor | Na dotaz | Zadat poptávku | |
| 402 2 WHR93079 |
C00576151
481240418308 |
Base compressor.. | Na dotaz | Zadat poptávku | |
| 402 3 WHR93079 |
C00740067
481241818386 |
Tray drip | Na dotaz | Zadat poptávku | |
| 420 0 WHR93079 |
C00484071
481251148284 |
Capacitor Kit | Na dotaz | Zadat poptávku | |
| 440 0 WHR93079 |
C00488649
481236118341 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 443 0 WHR93079 |
C00574714
481236138051 |
MOTOR VENTILATORA 220V/60HZ | Na dotaz | Zadat poptávku | |
| 443 1 WHR93079 |
C00485983
481246228345 |
Damper | Na dotaz | Zadat poptávku | |
| 443 2 WHR93079 |
C00740068
481240438659 |
Fastener | Na dotaz | Zadat poptávku | |
| 451 0 WHR93079 |
C00488521
481225948149 |
Heating element | Na dotaz | Zadat poptávku | |
| 490 0 WHR93079 |
C00576116
481221848023 |
Cable harness.. | Na dotaz | Zadat poptávku | |
| 532 0 WHR93079 |
C00740069
481212388002 |
Timer | Na dotaz | Zadat poptávku | |
| 554 0 WHR93079 |
C00491042
481227148002 |
Thermostat | Na dotaz | Zadat poptávku | |
| 564 0 WHR93079 |
C00486081
481246418077 |
Fuse | Na dotaz | Zadat poptávku | |
| 614 0 WHR93079 |
C00740070
481227118021 |
Relay PROT. T╔RM. FFI 10 H | Na dotaz | Zadat poptávku | |
| 623 0 WHR93079 |
C00484625
481221838145 |
Plug female | Na dotaz | Zadat poptávku | |
| 623 1 WHR93079 |
C00488711
481240418306 |
Lock | Na dotaz | Zadat poptávku | |
| 651 0 WHR93079 |
C00740071
481213488034 |
Lamp 220V-15W | Na dotaz | Zadat poptávku | |
| 652 0 WHR93079 |
C00576052
481213488035 |
Holder,lamp. | Na dotaz | Zadat poptávku | |
| 652 2 WHR93079 |
C00576053
481213488036 |
Lamp shield. | Na dotaz | Zadat poptávku | |
| 652 3 WHR93079 |
C00484600
481213488037 |
Protector ,Lamp | Na dotaz | Zadat poptávku | |
| 652 4 WHR93079 |
C00557225
481213488038 |
DOUILLE LAMPE.. | Na dotaz | Zadat poptávku | |
| 691 0 WHR93079 |
C00312619
481213428075 |
senzor teploty | 1 456 Kč
€ 64.00 |
||
| 740 0 WHR93079 |
C00576438
481251148286 |
Condenser.. | Na dotaz | Zadat poptávku | |
| 740 1 WHR93079 |
C00576152
481240418309 |
Fastener.. | Na dotaz | Zadat poptávku | |
| 740 2 WHR93079 |
C00621380
481240418311 |
Fastener. | Na dotaz | Zadat poptávku | |
| 743 0 WHR93079 |
C00482950
481244078993 |
Cabinet | Na dotaz | Zadat poptávku | |
| 743 1 WHR93079 |
C00576446
481253528008 |
Gasket.. | Na dotaz | Zadat poptávku | |
| 745 0 WHR93079 |
C00576437
481251148285 |
Evaporator.. | Na dotaz | Zadat poptávku | |
| 745 1 WHR93079 |
C00740072
481240418314 |
Protector | Na dotaz | Zadat poptávku | |
| 745 2 WHR93079 |
C00576384
481246218214 |
Gasket.. | Na dotaz | Zadat poptávku | |
| 751 0 WHR93079 |
C00576400
481246628133 |
Drainhose.. | Na dotaz | Zadat poptávku | |
| 764 0 WHR93079 |
C00345711
481248028051 |
Dryer | Na dotaz | Zadat poptávku | |
| 781 0 WHR93079 |
C00493822
481253538102 |
Valve | Na dotaz | Zadat poptávku | |
| 900 0 WHR93079 |
C00342336
481244229065 |
Cover white | Na dotaz | Zadat poptávku | |
| 900 1 WHR93079 |
C00740073
481240448815 |
Clamp panel | Na dotaz | Zadat poptávku | |
| 900 2 WHR93079 |
C00491981
481249148013 |
Clip fix | Na dotaz | Zadat poptávku | |
| 900 3 WHR93079 |
C00576153
481240418312 |
Clamp.. | Na dotaz | Zadat poptávku | |
| 901 0 WHR93079 |
C00491491
481240418313 |
Shaft | Na dotaz | Zadat poptávku | |
| 904 0 WHR93079 |
C00740074
481246228343 |
Bushing ,upper | Na dotaz | Zadat poptávku | |
| 904 1 WHR93079 |
C00529680
481246228344 |
Bushing right | Na dotaz | Zadat poptávku | |
| 904 6 WHR93079 |
C00342340
481246228342 |
Cover WH | Na dotaz | Zadat poptávku | |
| 904 7 WHR93079 |
C00529681
481246228347 |
Bushing left | Na dotaz | Zadat poptávku | |
| 904 8 WHR93079 |
C00576419
481250238349 |
Screw.. | Na dotaz | Zadat poptávku | |
| 910 0 WHR93079 |
C00574583
481250238166 |
Screw. | Na dotaz | Zadat poptávku | |
| 910 1 WHR93079 |
C00548216
481250518395 |
Screw. | Na dotaz | Zadat poptávku | |
| 910 2 WHR93079 |
C00529860
481250518394 |
Screw 8mm X 12.7mm | Na dotaz | Zadat poptávku | |
| 999 WHR93079 |
C00740543 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
