WHIRLPOOL WVG 303
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WVG 303 |
| Kód 12NC: | 850462965000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící mrazáky |
| Další podobné modely: | 850462942000, 850462969000 |
Potřebujete servis? Jsme tady pro Vás

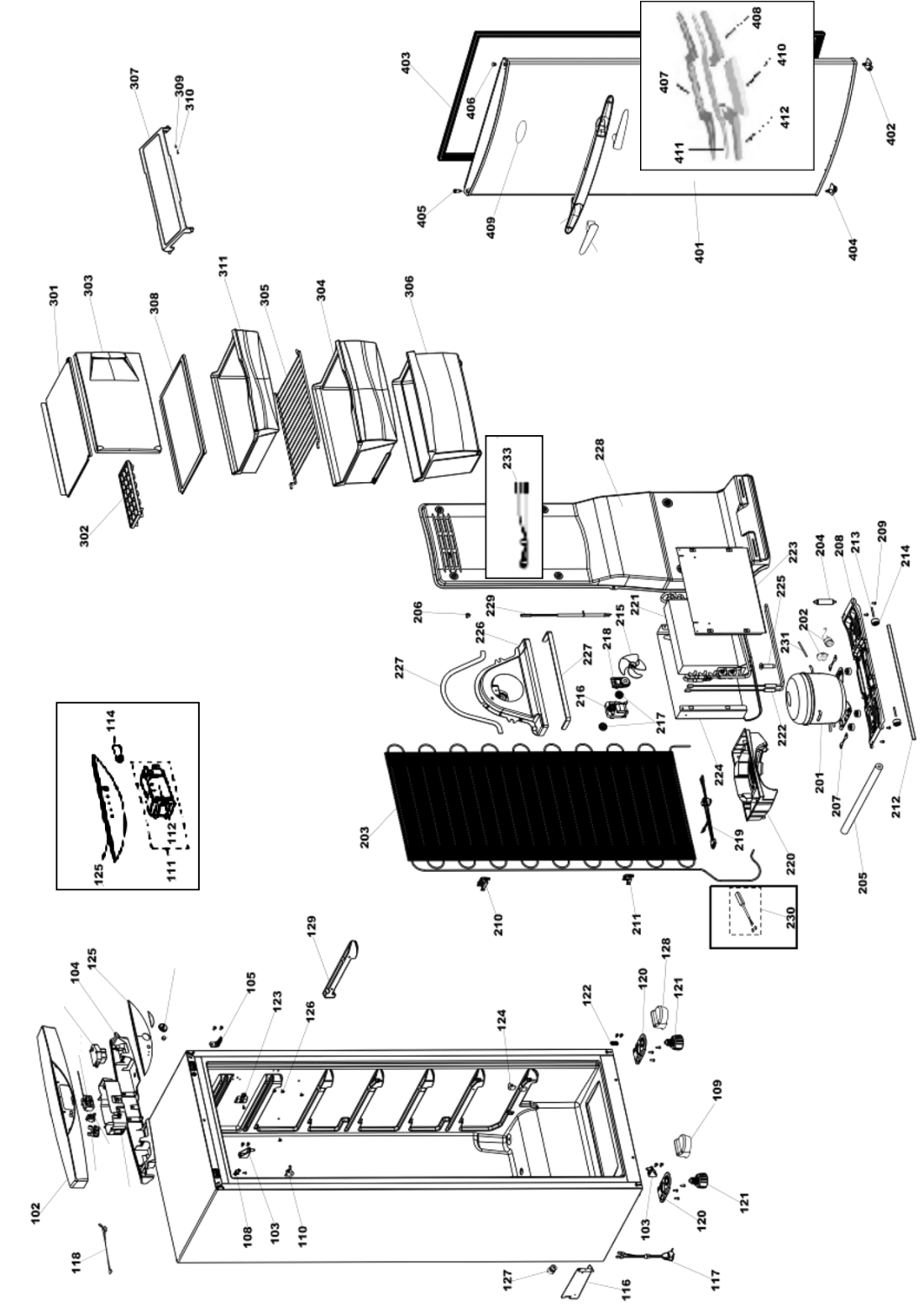

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 102 WHR38896 |
C00404593
481246049874 |
Control panel WH | Na dotaz | Zadat poptávku | |
| 103 WHR38896 |
C00488983
481241719287 |
Závěs dveří šuplíkového mrazáku (horní/dolní) Whirlpool | 110 Kč
€ 4.80 |
||
| 104 WHR38896 |
C00383489
480132101262 |
Console | Na dotaz | Zadat poptávku | |
| 105 WHR38896 |
C00482883
481240478518 |
Support | Na dotaz | Zadat poptávku | |
| 108 WHR38896 |
C00488952
481241719038 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 109 WHR38896 |
C00393828
480131100711 |
Cover | Na dotaz | Zadat poptávku | |
| 110 WHR38896 |
C00402729
481241719367 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 111 WHR38896 |
C00394095
480132101273 |
Control board | Na dotaz | Zadat poptávku | |
| 112 WHR38896 |
C00393807
480131100663 |
Protector Control box | Na dotaz | Zadat poptávku | |
| 114 WHR38896 |
C00394092
480132101269 |
Knob | Na dotaz | Zadat poptávku | |
| 116 WHR38896 |
C00485113
481244029451 |
Protector module | Na dotaz | Zadat poptávku | |
| 117 WHR38896 |
C00415071
482000016431 |
Mains cable | Na dotaz | Zadat poptávku | |
| 118 WHR38896 |
C00394096
480132101274 |
Cable harness | Na dotaz | Zadat poptávku | |
| 120 WHR38896 |
C00401971
481240449613 |
Support adjusting screw | Na dotaz | Zadat poptávku | |
| 121 WHR38896 |
C00393814
480131100695 |
Foot | Na dotaz | Zadat poptávku | |
| 122 WHR38896 |
C00319327
481246098059 |
Cover | Na dotaz | Zadat poptávku | |
| 123 WHR38896 |
C00488711
481240418306 |
Lock | Na dotaz | Zadat poptávku | |
| 124 WHR38896 |
C00482836
481240418307 |
Slide | Na dotaz | Zadat poptávku | |
| 125 WHR38896 |
C00394091
480132101268 |
Display | Na dotaz | Zadat poptávku | |
| 126 WHR38896 |
C00490978
481226278022 |
Cap | Na dotaz | Zadat poptávku | |
| 127 WHR38896 |
C00493822
481253538102 |
Valve | Na dotaz | Zadat poptávku | |
| 128 WHR38896 |
C00393827
480131100709 |
Cover | Na dotaz | Zadat poptávku | |
| 129 WHR38896 |
C00402814
481241818714 |
Rail right | Na dotaz | Zadat poptávku | |
| 129 WHR38896 |
C00402815
481241818715 |
Rail left | Na dotaz | Zadat poptávku | |
| 201 WHR38896 |
C00394098
480132101276 |
Compressor EGAS100HLR | Na dotaz | Zadat poptávku | |
| 202 WHR38896 |
C00394099
480132101277 |
Relay | Na dotaz | Zadat poptávku | |
| 203 WHR38896 |
C00344929
480132102102 |
Condenser. | Na dotaz | Zadat poptávku | |
| 204 WHR38896 |
C00345711
481248028051 |
Dryer | Na dotaz | Zadat poptávku | |
| 205 WHR38896 |
C00415308
482000017585 |
Gasket | Na dotaz | Zadat poptávku | |
| 206 WHR38896 |
C00576410
481249148033 |
Clip fix.. | Na dotaz | Zadat poptávku | |
| 207 WHR38896 |
C00500771
481236038783 |
Strap ,compressor | Na dotaz | Zadat poptávku | |
| 208 WHR38896 |
C00393837
480131100721 |
Base Compressor | Na dotaz | Zadat poptávku | |
| 209 WHR38896 |
C00415072
482000016432 |
Screw M10x9,5mm | Na dotaz | Zadat poptávku | |
| 210 WHR38896 |
C00482840
481240418443 |
Support condenser upper | Na dotaz | Zadat poptávku | |
| 211 WHR38896 |
C00330489
481246228394 |
Holder Condenser | Na dotaz | Zadat poptávku | |
| 212 WHR38896 |
C00404034
481245298313 |
Protector | Na dotaz | Zadat poptávku | |
| 213 WHR38896 |
C00491491
481240418313 |
Shaft | Na dotaz | Zadat poptávku | |
| 214 WHR38896 |
C00491928
481246238133 |
Roller | Na dotaz | Zadat poptávku | |
| 215 WHR38896 |
C00488649
481236118341 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 216 WHR38896 |
C00311429
481236118635 |
motor ventilatoru | 3 403 Kč
€ 149.60 |
||
| 217 WHR38896 |
C00485983
481246228345 |
Damper | Na dotaz | Zadat poptávku | |
| 218 WHR38896 |
C00345190
480132102368 |
Support Motor fan. | Na dotaz | Zadat poptávku | |
| 219 WHR38896 |
C00405520
481251148485 |
Fuse bi-metal | Na dotaz | Zadat poptávku | |
| 220 WHR38896 |
C00377666
481241818687 |
Tray Compressor | Na dotaz | Zadat poptávku | |
| 221 WHR38896 |
C00486260
481251138179 |
Evaporator | Na dotaz | Zadat poptávku | |
| 222 WHR38896 |
C00400718
481221848187 |
Heating element 500W 200V | Na dotaz | Zadat poptávku | |
| 223 WHR38896 |
C00485136
481244078992 |
Cover evaporator | Na dotaz | Zadat poptávku | |
| 224 WHR38896 |
C00482931
481244029361 |
Cabinet | Na dotaz | Zadat poptávku | |
| 225 WHR38896 |
C00405597
481253029378 |
Drainpipe lower | Na dotaz | Zadat poptávku | |
| 226 WHR38896 |
C00482950
481244078993 |
Cabinet | Na dotaz | Zadat poptávku | |
| 227 WHR38896 |
C00326623
481202078223 |
Insulation | Na dotaz | Zadat poptávku | |
| 228 WHR38896 |
C00484030
481246228348 |
Air diffuser | Na dotaz | Zadat poptávku | |
| 229 WHR38896 |
C00394094
480132101272 |
Thermofuse | Na dotaz | Zadat poptávku | |
| 230 WHR38896 |
C00312619
481213428075 |
senzor teploty | 1 456 Kč
€ 64.00 |
||
| 231 WHR38896 |
C00405578
481252648274 |
Tube | Na dotaz | Zadat poptávku | |
| 233 WHR38896 |
C00401353
481232178264 |
Cable harness | Na dotaz | Zadat poptávku | |
| 301 WHR38896 |
C00484963
481241828271 |
Shelf | Na dotaz | Zadat poptávku | |
| 302 WHR38896 |
C00345152
482000003370 |
Icecube tray. | Na dotaz | Zadat poptávku | |
| 303 WHR38896 |
C00408301
482000003321 |
Door inner | Na dotaz | Zadat poptávku | |
| 304 WHR38896 |
C00402876
481241820092 |
Drawer large | Na dotaz | Zadat poptávku | |
| 305 WHR38896 |
C00487580
481241878081 |
Grid | Na dotaz | Zadat poptávku | |
| 306 WHR38896 |
C00408306
482000003326 |
Drawer | Na dotaz | Zadat poptávku | |
| 307 WHR38896 |
C00402874
481241820089 |
Glass shelf accessory | Na dotaz | Zadat poptávku | |
| 308 WHR38896 |
C00402875
481241820091 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 309 WHR38896 |
C00329054
481240448923 |
Support | Na dotaz | Zadat poptávku | |
| 310 WHR38896 |
C00332711
481253538083 |
Pin | Na dotaz | Zadat poptávku | |
| 311 WHR38896 |
C00394090
480132101267 |
Drawer small | Na dotaz | Zadat poptávku | |
| 401 WHR38896 |
C00394087
480132101264 |
Door | Na dotaz | Zadat poptávku | |
| 402 WHR38896 |
C00491933
481246258091 |
Stop door right | Na dotaz | Zadat poptávku | |
| 403 WHR38896 |
C00486204
481246818306 |
Gasket | Na dotaz | Zadat poptávku | |
| 405 WHR38896 |
C00344062
481253288067 |
Bushing WH | Na dotaz | Zadat poptávku | |
| 406 WHR38896 |
C00408303
482000003323 |
Bushing | Na dotaz | Zadat poptávku | |
| 407 WHR38896 |
C00405357
481249818786 |
Support Handle | Na dotaz | Zadat poptávku | |
| 408 WHR38896 |
C00405358
481249818788 |
Handle right | Na dotaz | Zadat poptávku | |
| 409 WHR38896 |
C00415309
482000017586 |
Nameplate | Na dotaz | Zadat poptávku | |
| 410 WHR38896 |
C00380520
481249818787 |
Cover Handle | Na dotaz | Zadat poptávku | |
| 411 WHR38896 |
C00394089
480132101266 |
Insert Handle | Na dotaz | Zadat poptávku | |
| 412 WHR38896 |
C00405359
481249818789 |
Handle left | Na dotaz | Zadat poptávku | |
