WHIRLPOOL WWQ24 WASHING MACHINE WH
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WWQ24 WASHING MACHINE WH |
| Kód 12NC: | 857545265000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás

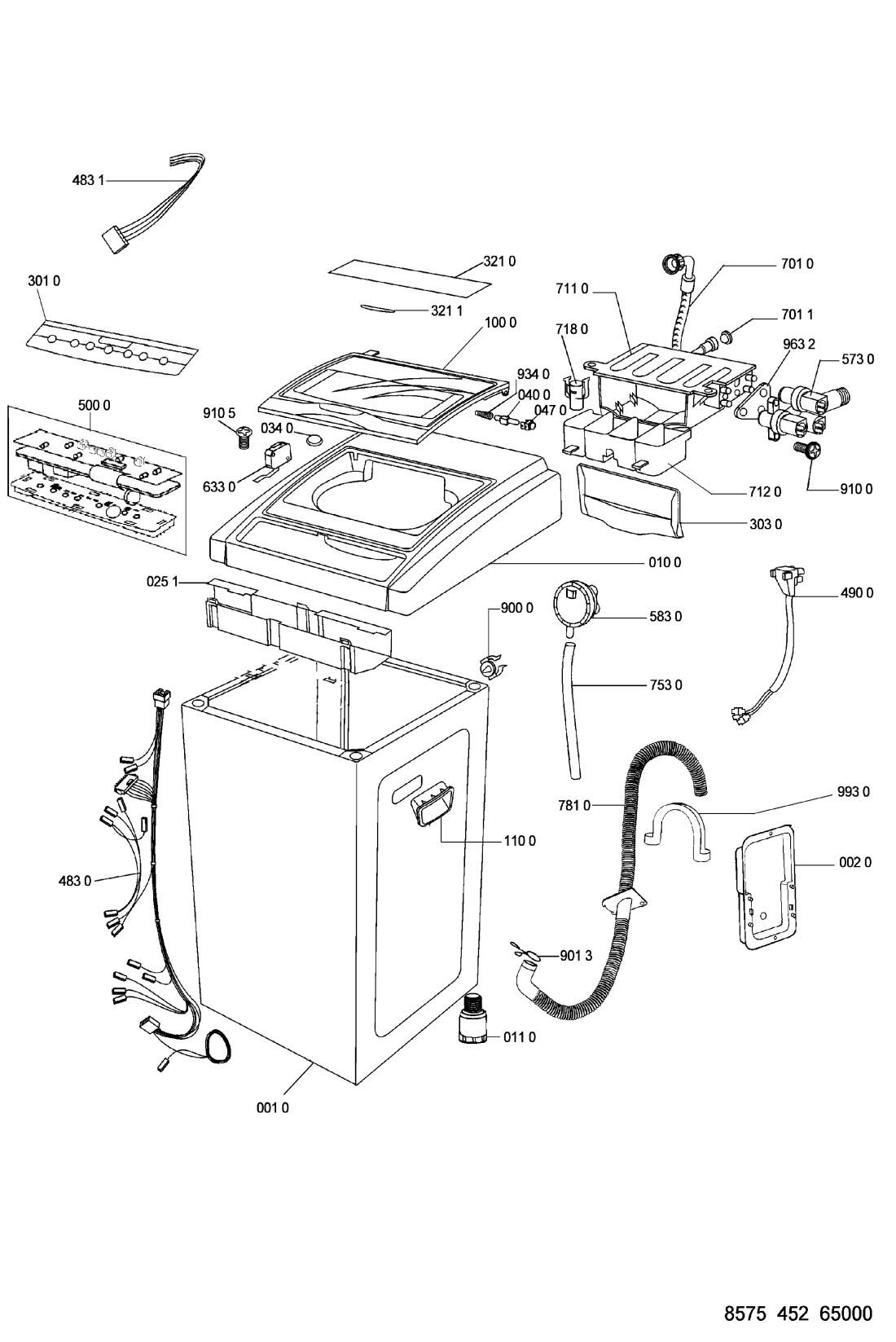

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR57843 |
C00598502
481244010562 |
Cabinet and handle. | Na dotaz | Zadat poptávku | |
| 002 0 WHR57843 |
C00585825
481246228169 |
Cover ,inspection. | Na dotaz | Zadat poptávku | |
| 010 0 WHR57843 |
C00585819
481245948103 |
Cover frame door. | Na dotaz | Zadat poptávku | |
| 011 0 WHR57843 |
C00405396
481250018107 |
Foot leveler | Na dotaz | Zadat poptávku | |
| 011 0 WHR57843 |
C00585896
481250018088 |
Foot until march 2005. | Na dotaz | Zadat poptávku | |
| 025 1 WHR57843 |
C00585826
481246228171 |
Protector timer. | Na dotaz | Zadat poptávku | |
| 034 0 WHR57843 |
C00585879
481246818073 |
Buffer ,cover. | Na dotaz | Zadat poptávku | |
| 040 0 WHR57843 |
C00488937
481241718986 |
Hinge ,door | Na dotaz | Zadat poptávku | |
| 047 0 WHR57843 |
C00585920
481252958004 |
Bushing for hinge. | Na dotaz | Zadat poptávku | |
| 061 0 WHR57843 |
C00585872
481246688564 |
Counter weight. | Na dotaz | Zadat poptávku | |
| 081 0 WHR57843 |
C00486128
481246648077 |
SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
| 081 2 WHR57843 |
C00598768
481246648098 |
Rod ,suspension. | Na dotaz | Zadat poptávku | |
| 086 0 WHR57843 |
C00598465
481240118658 |
Ball suspension upper. | Na dotaz | Zadat poptávku | |
| 100 0 WHR57843 |
C00598505
481244011054 |
Door +label. | Na dotaz | Zadat poptávku | |
| 110 0 WHR57843 |
C00487757
481249818193 |
Handle ,cabinet | Na dotaz | Zadat poptávku | |
| 144 0 WHR57843 |
C00598800
481253248047 |
Ring Tub. | Na dotaz | Zadat poptávku | |
| 200 0 WHR57843 |
C00402804
481241818554 |
Tub | Na dotaz | Zadat poptávku | |
| 200 0 WHR57843 |
C00585683
481241818312 |
TUB. | Na dotaz | Zadat poptávku | |
| 210 0 WHR57843 |
C00484777
481240478426 |
Crosspiece + bearing | Na dotaz | Zadat poptávku | |
| 220 0 WHR57843 |
C00585682
481241818311 |
Drum. | Na dotaz | Zadat poptávku | |
| 223 0 WHR57843 |
C00490224
481251528102 |
Agitator upper | Na dotaz | Zadat poptávku | |
| 223 1 WHR57843 |
C00490221
481251528078 |
Agitator lower | Na dotaz | Zadat poptávku | |
| 223 2 WHR57843 |
C00491379
481229068235 |
Holder upper agitator | Na dotaz | Zadat poptávku | |
| 223 3 WHR57843 |
C00490220
481251528076 |
Lock agitator | Na dotaz | Zadat poptávku | |
| 228 0 WHR57843 |
C00491672
481241828132 |
Holder Basket | Na dotaz | Zadat poptávku | |
| 271 0 WHR57843 |
C00482701
481235818173 |
Belt drive V | Na dotaz | Zadat poptávku | |
| 272 0 WHR57843 |
C00621481
481252858031 |
Pulley drive. | Na dotaz | Zadat poptávku | |
| 276 1 WHR57843 |
C00484066
481246818074 |
Slide | Na dotaz | Zadat poptávku | |
| 276 2 WHR57843 |
C00621480
481252838059 |
Cam. | Na dotaz | Zadat poptávku | |
| 276 3 WHR57843 |
C00492077
481252838061 |
Cam Snapin | Na dotaz | Zadat poptávku | |
| 277 0 WHR57843 |
C00484659
481227858002 |
Actuator | Na dotaz | Zadat poptávku | |
| 277 1 WHR57843 |
C00493673
481252218003 |
Gear case | Na dotaz | Zadat poptávku | |
| 277 3 WHR57843 |
C00486126
481246648073 |
Brake Band | Na dotaz | Zadat poptávku | |
| 277 4 WHR57843 |
C00486036
481246248081 |
Brake arm | Na dotaz | Zadat poptávku | |
| 277 5 WHR57843 |
C00585931
481253518038 |
Pin Brake. | Na dotaz | Zadat poptávku | |
| 277 6 WHR57843 |
C00585662
481240438565 |
Holder f.motor. | Na dotaz | Zadat poptávku | |
| 277 7 WHR57843 |
C00598766
481246648096 |
Support brake ban. | Na dotaz | Zadat poptávku | |
| 301 0 WHR57843 |
C00483780
481245310292 |
Control panel | Na dotaz | Zadat poptávku | |
| 303 0 WHR57843 |
C00487756
481249818192 |
Handle , drawer | Na dotaz | Zadat poptávku | |
| 321 0 WHR57843 |
C00585725
481245210587 |
Panel label. | Na dotaz | Zadat poptávku | |
| 321 1 WHR57843 |
C00490020
481245918205 |
Insert logo | Na dotaz | Zadat poptávku | |
| 400 0 WHR57843 |
C00598458
481236158187 |
Motor & pulley 230V-50Hz. | Na dotaz | Zadat poptávku | |
| 401 0 WHR57843 |
C00492081
481252888092 |
Pulley motor | Na dotaz | Zadat poptávku | |
| 420 0 WHR57843 |
C00482194
481212118219 |
Capacitor 15mf | Na dotaz | Zadat poptávku | |
| 430 0 WHR57843 |
C00401362
481236018554 |
Pump | Na dotaz | Zadat poptávku | |
| 430 0 WHR57843 |
C00491434
481236018496 |
Pump | Na dotaz | Zadat poptávku | |
| 451 0 WHR57843 |
C00488493
481225928781 |
Heating element 1500 W | Na dotaz | Zadat poptávku | |
| 483 0 WHR57843 |
C00401349
481232178234 |
Cable harness | Na dotaz | Zadat poptávku | |
| 483 0 WHR57843 |
C00585642
481232178089 |
Cable harness. | Na dotaz | Zadat poptávku | |
| 483 1 WHR57843 |
C00585641
481232178088 |
Cable harness upper. | Na dotaz | Zadat poptávku | |
| 490 0 WHR57843 |
C00598393
481232118222 |
Cable mains. | Na dotaz | Zadat poptávku | |
| 500 0 WHR57843 |
C00482570
481228218846 |
Control board (PCB) | Na dotaz | Zadat poptávku | |
| 573 0 WHR57843 |
C00492959
481228128411 |
ventil trojcestný | 1 500 Kč
€ 65.90 |
||
| 583 0 WHR57843 |
C00491008
481227128457 |
Pressostat | Na dotaz | Zadat poptávku | |
| 633 0 WHR57843 |
C00491031
481227138407 |
Switch Door | Na dotaz | Zadat poptávku | |
| 701 0 WHR57843 |
C00598787
481253018057 |
Hose inlet. | Na dotaz | Zadat poptávku | |
| 701 1 WHR57843 |
C00585880
481248028045 |
Filter f.hose. | Na dotaz | Zadat poptávku | |
| 711 0 WHR57843 |
C00485028
481241888058 |
Dispenser | Na dotaz | Zadat poptávku | |
| 712 0 WHR57843 |
C00485032
481241889029 |
Drawer dispenser | Na dotaz | Zadat poptávku | |
| 718 0 WHR57843 |
C00489123
481241888057 |
SIPHON | Na dotaz | Zadat poptávku | |
| 753 0 WHR57843 |
C00585923
481253029039 |
Hose pressostat. | Na dotaz | Zadat poptávku | |
| 760 1 WHR57843 |
C00405070
481246668852 |
Seal pump | Na dotaz | Zadat poptávku | |
| 760 1 WHR57843 |
C00598769
481246668786 |
Seal pump. | Na dotaz | Zadat poptávku | |
| 781 0 WHR57843 |
C00405595
481253029371 |
Hose outlet | Na dotaz | Zadat poptávku | |
| 781 0 WHR57843 |
C00493726
481253029124 |
Hose outlet | Na dotaz | Zadat poptávku | |
| 794 1 WHR57843 |
C00585926
481253068018 |
Ring cap. | Na dotaz | Zadat poptávku | |
| 900 0 WHR57843 |
C00491484
481240148579 |
Holder ,hose | Na dotaz | Zadat poptávku | |
| 901 3 WHR57843 |
C00401789
481240118676 |
Clamp for hose | Na dotaz | Zadat poptávku | |
| 901 3 WHR57843 |
C00585660
481240118506 |
Clamp for hose. | Na dotaz | Zadat poptávku | |
| 902 0 WHR57843 |
C00585661
481240418151 |
Holder Heater. | Na dotaz | Zadat poptávku | |
| 902 6 WHR57843 |
C00482820
481240118509 |
Bracket ,capacitor | Na dotaz | Zadat poptávku | |
| 903 0 WHR57843 |
C00482819
481240118507 |
Bracket | Na dotaz | Zadat poptávku | |
| 910 0 WHR57843 |
C00585897
481250218483 |
Screw. | Na dotaz | Zadat poptávku | |
| 910 5 WHR57843 |
C00585900
481250218487 |
Screw. | Na dotaz | Zadat poptávku | |
| 911 0 WHR57843 |
C00585901
481250218488 |
Screw. | Na dotaz | Zadat poptávku | |
| 911 1 WHR57843 |
C00585902
481250218489 |
Screw. | Na dotaz | Zadat poptávku | |
| 911 3 WHR57843 |
C00585910
481250218567 |
Screw. | Na dotaz | Zadat poptávku | |
| 913 0 WHR57843 |
C00585904
481250218492 |
Screw. | Na dotaz | Zadat poptávku | |
| 913 1 WHR57843 |
C00621958
481250218493 |
Screw. | Na dotaz | Zadat poptávku | |
| 913 2 WHR57843 |
C00585905
481250218494 |
Screw. | Na dotaz | Zadat poptávku | |
| 913 3 WHR57843 |
C00585911
481250218662 |
Screw. | Na dotaz | Zadat poptávku | |
| 913 5 WHR57843 |
C00585908
481250218497 |
Screw. | Na dotaz | Zadat poptávku | |
| 913 6 WHR57843 |
C00585909
481250218498 |
Screw. | Na dotaz | Zadat poptávku | |
| 913 7 WHR57843 |
C00585913
481250518384 |
Nut. | Na dotaz | Zadat poptávku | |
| 913 9 WHR57843 |
C00517553
481250518408 |
Nut | Na dotaz | Zadat poptávku | |
| 921 2 WHR57843 |
C00585929
481253228924 |
Washer. | Na dotaz | Zadat poptávku | |
| 921 4 WHR57843 |
C00585928
481253218061 |
Ring. | Na dotaz | Zadat poptávku | |
| 923 0 WHR57843 |
C00492118
481253518039 |
Fastener | Na dotaz | Zadat poptávku | |
| 931 0 WHR57843 |
C00491986
481249218019 |
Spring brake | Na dotaz | Zadat poptávku | |
| 931 1 WHR57843 |
C00585883
481249218021 |
Spring clutch. | Na dotaz | Zadat poptávku | |
| 934 0 WHR57843 |
C00583959
481249248173 |
Spring right. | Na dotaz | Zadat poptávku | |
| 941 0 WHR57843 |
C00484074
481252028126 |
Bearing | Na dotaz | Zadat poptávku | |
| 952 0 WHR57843 |
C00484060
481246668657 |
Tub seal | Na dotaz | Zadat poptávku | |
| 963 0 WHR57843 |
C00585867
481246638032 |
Protector pulley. | Na dotaz | Zadat poptávku | |
| 963 2 WHR57843 |
C00621446
481246668656 |
Gasket, door | Na dotaz | Zadat poptávku | |
| 965 0 WHR57843 |
C00598753
481246228605 |
Cap. | Na dotaz | Zadat poptávku | |
| 993 0 WHR57843 |
C00493718
481253029038 |
Bow | Na dotaz | Zadat poptávku | |
