ARISTON XC 902 GH DC AUS
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | XC 902 GH DC AUS |
| Kód 12NC: | 869990288810 |
| I.C. kód: | 79288810000 |
| Značka: | ARISTON |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

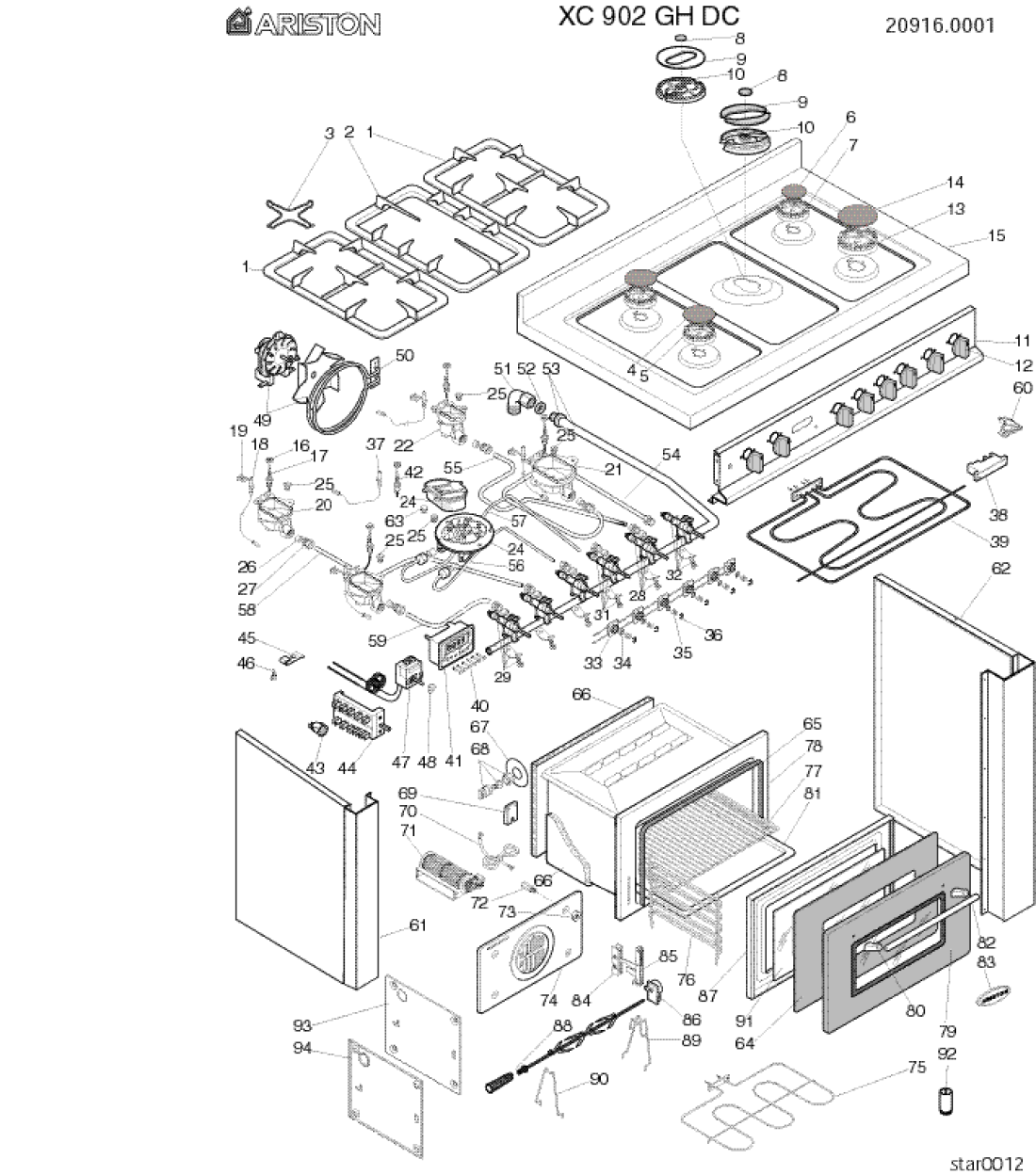

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 000 star0012 |
C00097820 | USER INSTRUCTION GB XC902GHDC AUS | Na dotaz | Zadat poptávku | |
| 001 star0012 |
C00085446
482000027673 |
GRID FOR 2 BURNERS 'STAR' | Na dotaz | Zadat poptávku | |
| 002 star0012 |
C00085447
482000027674 |
1 BURNER GRID STAR | Na dotaz | Zadat poptávku | |
| 003 star0012 |
C00047805
482000026654 |
REDUCING GRID 'STAR' | Na dotaz | Zadat poptávku | |
| 004 star0012 |
C00064919
482000027180 |
Víko hořáku | 244 Kč
€ 10.00 |
||
| 005 star0012 |
C00052929
482000026822 |
Těleso hořáku polorychlé plynové varné desky Whirlpool | 506 Kč
€ 20.80 |
||
| 006 star0012 |
C00064918
482000027179 |
Víko hořáku malé | 272 Kč
€ 11.20 |
||
| 007 star0012 |
C00052930
482000026823 |
BURNER BASE/FLAME SPLITTER - S | Na dotaz | Zadat poptávku | |
| 008 star0012 |
C00084058
482000027616 |
ODCHYLOVAČ PLAMENE VNITŘNÍ DCDR LITINA | Na dotaz | Zadat poptávku | |
| 009 star0012 |
C00084059
482000076937 |
ODCHYLOVAČ PLAMENE VNĚJŠÍ DCDR LITINA | Na dotaz | Zadat poptávku | |
| 010 star0012 |
C00084061
482000076938 |
BURNER BASE/FLAME SPLITTER - DCDR | Na dotaz | Zadat poptávku | |
| 011 star0012 |
C00090711
482000077562 |
DASHBORAD XC902GHDC STAR | Na dotaz | Zadat poptávku | |
| 012 star0012 |
C00089082
482000027772 |
KNOB BURNERS | Na dotaz | Zadat poptávku | |
| 013 star0012 |
C00052928
482000026821 |
Těleso hořáku velké | Na dotaz | Zadat poptávku | |
| 014 star0012 |
C00064920
482000027181 |
URNER CAP RAPIDE BLACK SEMI GLOSS | Na dotaz | Zadat poptávku | |
| 015 star0012 |
C00097818 | WORKING TABLE IX XC902GHDC AUS | Na dotaz | Zadat poptávku | |
| 015 star0012 |
C00097819 | BACK EDGE FOR COOKER UK | Na dotaz | Zadat poptávku | |
| 016 star0012 |
C00093834
482000027985 |
SCREW NUT M6 | Na dotaz | Zadat poptávku | |
| 017 star0012 |
C00052986
482000026835 |
Termočlánek | 419 Kč
€ 17.20 |
||
| 018 star0012 |
C00052951
482000022639 |
Svíčka zapalovací | 84 Kč
€ 3.50 |
||
| 019 star0012 |
C00052934
482000026827 |
PRUŽINA ZAPAL.SVÍČKY HOŘÁKU 'SABAF' | Na dotaz | Zadat poptávku | |
| 020 star0012 |
C00052926
482000026819 |
BURNER CUP - MEDIUM BURNER | Na dotaz | Zadat poptávku | |
| 021 star0012 |
C00052925
482000026818 |
KRYT HOŘÁK RYCHLÝ 'SABAF' | Na dotaz | Zadat poptávku | |
| 022 star0012 |
C00052927
482000026820 |
KRYT HOŘÁK POMOC. 'SABAF' | Na dotaz | Zadat poptávku | |
| 024 star0012 |
C00084063
482000076939 |
CUP BURNER 8KW | Na dotaz | Zadat poptávku | |
| 025 star0012 |
C00056359
482000026957 |
Tryska G30 - propan butan (LPG) (80) - LARGE BURNER | 162 Kč
€ 6.70 |
||
| 025 star0012 |
C00056360
482000026958 |
TRYSKA HOŘÁK RYCH.REDUK. ZEM.PLYN 'SABAF'D=110 | Na dotaz | Zadat poptávku | |
| 025 star0012 |
C00065122 | METANE GAS FAST BRR JET RAP-RID (129) | Na dotaz | Zadat poptávku | |
| 025 star0012 |
C00139873 | INJECTOR AUXILIAR D130 | Na dotaz | Zadat poptávku | |
| 026 star0012 |
C00058506
482000075095 |
CONE ELBOW 'STAR' | Na dotaz | Zadat poptávku | |
| 027 star0012 |
C00060458
482000075200 |
NUT M1 3X1 | Na dotaz | Zadat poptávku | |
| 028 star0012 |
C00059239
482000027071 |
GAS TAP WITH VALVE BY-PASS 0,27 | Na dotaz | Zadat poptávku | |
| 029 star0012 |
C00059241
482000027073 |
THERMOSTAT WITH VALVE SEMIRAPIDO | Na dotaz | Zadat poptávku | |
| 031 star0012 |
C00097822 | THERMOSTAT WITH VALVE TC | Na dotaz | Zadat poptávku | |
| 032 star0012 |
C00059240
482000027072 |
GAS TAP WITH FAST VALVE STAR | Na dotaz | Zadat poptávku | |
| 033 star0012 |
C00090714 | MICROSWITCH UNIT | Na dotaz | Zadat poptávku | |
| 034 star0012 |
C00056186
482000054438 |
WASHER | Na dotaz | Zadat poptávku | |
| 035 star0012 |
C00056188
482000074944 |
SPRING | Na dotaz | Zadat poptávku | |
| 036 star0012 |
C00056187 | SEALING RING SPIDER | Na dotaz | Zadat poptávku | |
| 037 star0012 |
C00087386
482000027730 |
ZAPALOVACÍ SVÍČKA HOŘÁK.DCDR NEW | Na dotaz | Zadat poptávku | |
| 038 star0012 |
C00031720
482000022593 |
TRANSFORMÁTOR ZAPÁLENÍ 6P+FILTR | Na dotaz | Zadat poptávku | |
| 039 star0012 |
C00049942
482000052653 |
HEATING ELEMENT - UPPER GRILL | Na dotaz | Zadat poptávku | |
| 040 star0012 |
C00090737
482000027842 |
KNOB IX (ELECTRONIC PROG) - STAR | Na dotaz | Zadat poptávku | |
| 041 star0012 |
C00052307
482000054711 |
ELETTRONIC PROGRAMMER STAR | Na dotaz | Zadat poptávku | |
| 042 star0012 |
C00074280
482000027292 |
THERMOCOUPLE - TRIPLE BURNER | Na dotaz | Zadat poptávku | |
| 042 star0012 |
C00097821
482000028235 |
THERMOCOUPLE - TRIPLE BURNER | Na dotaz | Zadat poptávku | |
| 043 star0012 |
C00075145
482000054487 |
PILOT LAMP | Na dotaz | Zadat poptávku | |
| 044 star0012 |
C00052299
482000026786 |
LIGHT SWITCH 10 POLE STAR | Na dotaz | Zadat poptávku | |
| 045 star0012 |
C00049971
482000074501 |
FLAT SPRING RETAINER-THERMOS.CAPIL. MM26 | Na dotaz | Zadat poptávku | |
| 045 star0012 |
C00053617
482000074812 |
FLAT SPRING RETAINER-THERMOSTAT | Na dotaz | Zadat poptávku | |
| 046 star0012 |
C00059234 | FLAT SPRING RETAINER-THERMOS.CAPIL. | Na dotaz | Zadat poptávku | |
| 047 star0012 |
C00089745
482000022747 |
THERMOSTAT | 1 675 Kč
€ 68.80 |
||
| 048 star0012 |
C00053696
482000074817 |
PUSH IN SPRING CLIP - THERMOSTAT | Na dotaz | Zadat poptávku | |
| 049 star0012 |
C00049956
482000054606 |
FAN MOTOR - COOKING | Na dotaz | Zadat poptávku | |
| 050 star0012 |
C00052371
482000052654 |
HEATING ELEMENT FAN OVEN STAR | Na dotaz | Zadat poptávku | |
| 051 star0012 |
C00035479
482000026308 |
TVAROVKA RAMPA NL. 53/60 | Na dotaz | Zadat poptávku | |
| 052 star0012 |
C00010506
482000025938 |
SEALING WASHER - GAS ELBOW/PIPE | Na dotaz | Zadat poptávku | |
| 053 star0012 |
C00090715 | PIPE - TAP | Na dotaz | Zadat poptávku | |
| 054 star0012 |
C00090717 | FRONT LEFT BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 055 star0012 |
C00090718 | FRONT RIGHT BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 056 star0012 |
C00090719 | DC-DR BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 057 star0012 |
C00090720 | DC-DR BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 058 star0012 |
C00090721 | SEMI-RAPID BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 059 star0012 |
C00090722 | SEMI-RAPID BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 060 star0012 |
C00052137
482000074675 |
THERMOSTAT NON ADJUSTABLE ME INDESIT | Na dotaz | Zadat poptávku | |
| 061 star0012 |
C00090723 | SIDE PANEL LEFT | Na dotaz | Zadat poptávku | |
| 062 star0012 |
C00090724 | SIDE PANEL RIGHT | Na dotaz | Zadat poptávku | |
| 064 star0012 |
C00089100 | OVEN DOOR CENTRAL GLASS | Na dotaz | Zadat poptávku | |
| 065 star0012 |
C00091946
482000022767 |
Těsnění dveří trouby | 822 Kč
€ 33.80 |
||
| 066 star0012 |
C00049970 | OVEN INSULATION - BACK | Na dotaz | Zadat poptávku | |
| 066 star0012 |
C00092897
488000092897 |
OVEN INSULATION | Na dotaz | Zadat poptávku | |
| 067 star0012 |
C00052172
482000074678 |
OCHRANA OBJÍMKA 'STAR' | Na dotaz | Zadat poptávku | |
| 068 star0012 |
C00050003
482000074502 |
LAMP-HOLDER COMPLETE | Na dotaz | Zadat poptávku | |
| 069 star0012 |
C00056382
482000026959 |
SVORKOVNICE 'STAR' | Na dotaz | Zadat poptávku | |
| 070 star0012 |
C00059232 | MAINS CABLE L=1,5M.3X1,5MM | Na dotaz | Zadat poptávku | |
| 071 star0012 |
C00049969
482000026714 |
VENTILÁTOR S MOTOREM TANGENCIÁLNÍ MM26 | Na dotaz | Zadat poptávku | |
| 072 star0012 |
C00051017
482000026747 |
PIN MM26 | Na dotaz | Zadat poptávku | |
| 073 star0012 |
C00302785
482000032241 |
IMPELLOR ZINCATO | Na dotaz | Zadat poptávku | |
| 074 star0012 |
C00050005
482000053698 |
PŘEPÁŽKA VENTILÁTORU TROUBY SAMOČISTÍCÍ | Na dotaz | Zadat poptávku | |
| 075 star0012 |
C00049943
482000054604 |
HEATING ELEMENT - LOWER 1300W | Na dotaz | Zadat poptávku | |
| 075 star0012 |
C00091953
488000091953 |
LOWER HEATING ELEMENT BOX | Na dotaz | Zadat poptávku | |
| 075 star0012 |
C00288252
482000023278 |
LOWER HEATING ELEMENT BOX | Na dotaz | Zadat poptávku | |
| 076 star0012 |
C00066389
482000027231 |
BOČNÍ MŘÍŽKA 'STAR' | Na dotaz | Zadat poptávku | |
| 077 star0012 |
C00055280 | OVEN GRID SHELF | Na dotaz | Zadat poptávku | |
| 078 star0012 |
C00090725
482000077564 |
OVEN GAS - ENAMELLED | Na dotaz | Zadat poptávku | |
| 079 star0012 |
C00090727
482000077565 |
ROLLED DOOR | Na dotaz | Zadat poptávku | |
| 080 star0012 |
C00089095
482000077366 |
SPACER HANDLE | Na dotaz | Zadat poptávku | |
| 081 star0012 |
C00076073
482000027368 |
ODKAPNÍ MISKA SMALTOVANÝ | Na dotaz | Zadat poptávku | |
| 081 star0012 |
C00056078 | INSERT M6 | Na dotaz | Zadat poptávku | |
| 082 star0012 |
C00089097
482000077367 |
OVEN DOOR HANDLE | Na dotaz | Zadat poptávku | |
| 083 star0012 |
C00095541
482000061906 |
DECORATION | Na dotaz | Zadat poptávku | |
| 084 star0012 |
C00075148
482000053760 |
ROLLER SUPPORT M26 | Na dotaz | Zadat poptávku | |
| 085 star0012 |
C00083113
482000027588 |
Závěs dveří | 2 045 Kč
€ 84.00 |
||
| 086 star0012 |
C00089098
482000027775 |
MOTOR ROTISSERIE | Na dotaz | Zadat poptávku | |
| 087 star0012 |
C00089083
482000053657 |
OVEN METAL INNER DOOR | Na dotaz | Zadat poptávku | |
| 088 star0012 |
C00056079
482000026945 |
JEHLA OTÁČECÍHO GRILU L-537 'STAR' | Na dotaz | Zadat poptávku | |
| 089 star0012 |
C00049974
482000026716 |
PODPĚRA JEHLA OTOČNÉHO GRILU MM26 'STAR | Na dotaz | Zadat poptávku | |
| 090 star0012 |
C00049973
482000026715 |
PODPĚRA LIŠTY OTOČNÉHO GRILU MM26 'STAR' | Na dotaz | Zadat poptávku | |
| 091 star0012 |
C00049936
482000026710 |
OVEN DOOR GLASS - INNER (564X306X4) | Na dotaz | Zadat poptávku | |
| 092 star0012 |
C00074052
482000027272 |
FOOT INOX | Na dotaz | Zadat poptávku | |
| 093 star0012 |
C00050006
482000053700 |
PANEL SAMOČISTÍCÍ BOČNÍ LEVÝ MM26 'STA | Na dotaz | Zadat poptávku | |
| 094 star0012 |
C00050007
482000053699 |
PANEL SAMOČISTÍCÍ BOČNÍ LEVÝ MM26 'STAR | Na dotaz | Zadat poptávku | |
| 099 star0012 |
C00092900 | SUPPORT GLASS XF905.01 | Na dotaz | Zadat poptávku | |
| 099 star0012 |
C00086437
482000077132 |
OUTER BACK OVEN COVER | Na dotaz | Zadat poptávku | |
| 099 star0012 |
C00077048 | UPPER PANEL SELF-CLEANING OVEN | Na dotaz | Zadat poptávku | |
| 099 star0012 |
C00062122
488000062122 |
LOWER HEATING ELEMENT BOX | Na dotaz | Zadat poptávku | |
| 999 star0012 |
C00252620 | KIT INJECTOR GPL | Na dotaz | Zadat poptávku | |
