WHIRLPOOL LTE6234DQ WASHING MACHINES/DRYI WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | LTE6234DQ WASHING MACHINES/DRYI WP |
| Kód 12NC/I.C. kód: | 857095670000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky se sušičkou |
Potřebujete servis? Jsme tady pro Vás

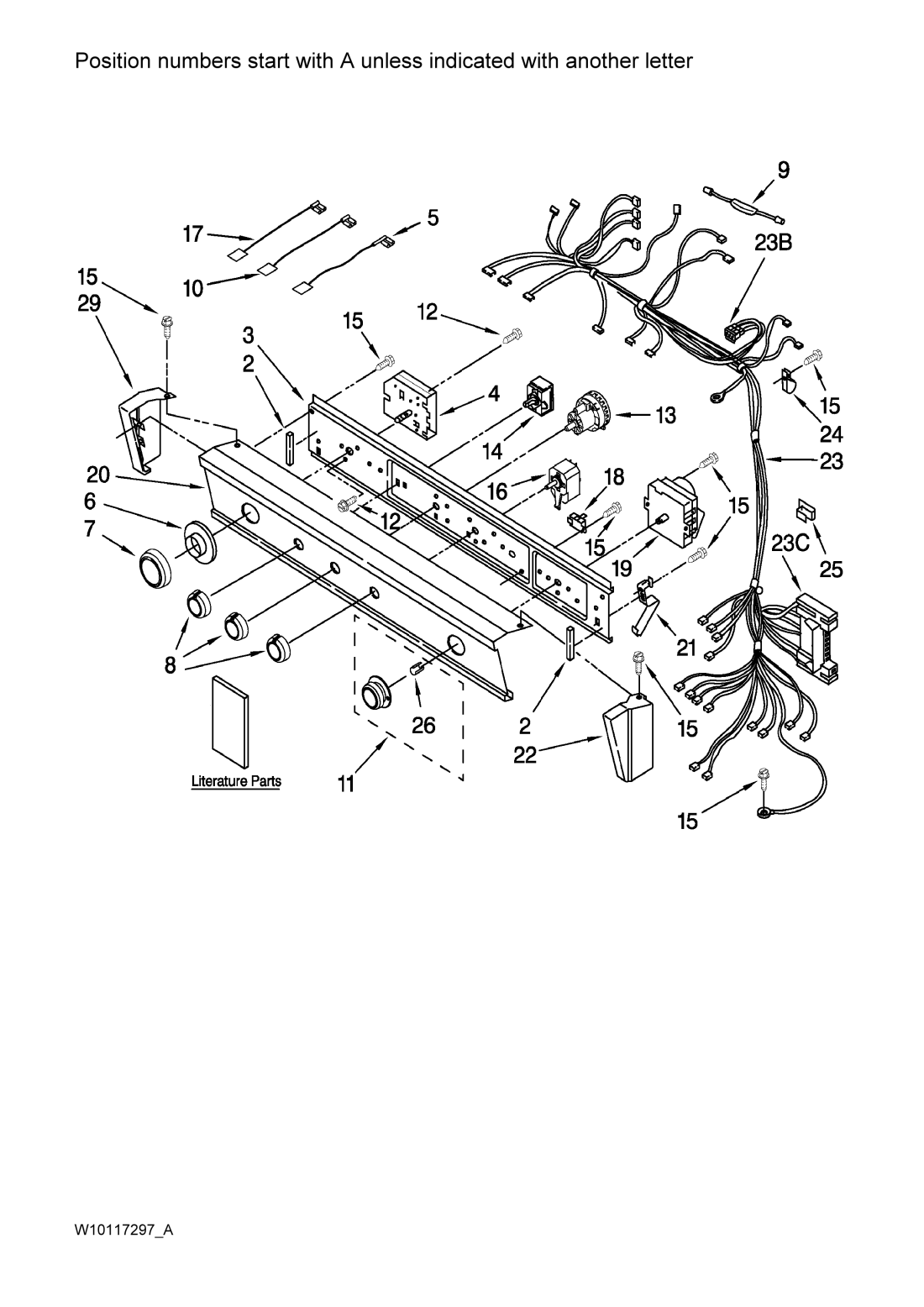

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A00 2 WHR47483 |
C00389157
480113100283 |
Spacer | Na dotaz | Zadat poptávku | |
| A00 3 WHR47483 |
C00389158
480113100284 |
Bracket control | Na dotaz | Zadat poptávku | |
| A00 4 WHR47483 |
C00389247
480113100393 |
programator pračky LTE6234DQ | 6 751 Kč
€ 277.40 |
||
| A00 5 WHR47483 |
C00389248
480113100394 |
Connector | Na dotaz | Zadat poptávku | |
| A00 6 WHR47483 |
C00389249
480113100395 |
Disc,indication | Na dotaz | Zadat poptávku | |
| A00 7 WHR47483 |
C00389250
480113100396 |
Knob timer | Na dotaz | Zadat poptávku | |
| A00 8 WHR47483 |
C00374746
480113100342 |
Knob | Na dotaz | Zadat poptávku | |
| A00 9 WHR47483 |
C00389251
480113100397 |
Resistor | Na dotaz | Zadat poptávku | |
| A01 0 WHR47483 |
C00388717
480112100663 |
Wire black | Na dotaz | Zadat poptávku | |
| A01 1 WHR47483 |
C00389252
480113100398 |
Knob timer dryer | Na dotaz | Zadat poptávku | |
| A01 2 WHR47483 |
C00336718
481250318001 |
SCREW | Na dotaz | Zadat poptávku | |
| A01 3 WHR47483 |
C00389253
480113100399 |
Pressostat | Na dotaz | Zadat poptávku | |
| A01 4 WHR47483 |
C00389254
480113100401 |
Switch temperature | Na dotaz | Zadat poptávku | |
| A01 5 WHR47483 |
C00333206
481950218332 |
Screw 8Ax3/8 | Na dotaz | Zadat poptávku | |
| A01 6 WHR47483 |
C00389164
480113100291 |
Power switch | Na dotaz | Zadat poptávku | |
| A01 7 WHR47483 |
C00389255
480113100402 |
Connector | Na dotaz | Zadat poptávku | |
| A01 8 WHR47483 |
C00498711
481900694419 |
Buzzer. | Na dotaz | Zadat poptávku | |
| A01 9 WHR47483 |
C00389256
480113100403 |
Timer dryer | Na dotaz | Zadat poptávku | |
| A02 0 WHR47483 |
C00389257
480113100404 |
Control panel | Na dotaz | Zadat poptávku | |
| A02 1 WHR47483 |
C00518403
481940479199 |
BRACKET. | Na dotaz | Zadat poptávku | |
| A02 2 WHR47483 |
C00518432
481946689338 |
END BLOCK. | Na dotaz | Zadat poptávku | |
| A02 3 WHR47483 |
C00389258
480113100405 |
Cable harness dryer | Na dotaz | Zadat poptávku | |
| A02 4 WHR47483 |
C00389169
480113100296 |
Clamp harness | Na dotaz | Zadat poptávku | |
| A02 5 WHR47483 |
C00389170
480113100297 |
Clip harness | Na dotaz | Zadat poptávku | |
| A02 6 WHR47483 |
C00333178
481949268606 |
CLIP | Na dotaz | Zadat poptávku | |
| A02 9 WHR47483 |
C00518433
481946689339 |
END BLOCK. | Na dotaz | Zadat poptávku | |
| A23 B WHR47483 |
C00389168
480113100295 |
Plug | Na dotaz | Zadat poptávku | |
| A23 C WHR47483 |
C00332807
481903395683 |
CONNECTOR | Na dotaz | Zadat poptávku | |
| B00 1 WHR47483 |
C00338049
481950618026 |
NUT | Na dotaz | Zadat poptávku | |
| B00 2 WHR47483 |
C00594973
481927618323 |
SWITCH. | Na dotaz | Zadat poptávku | |
| B00 3 WHR47483 |
C00343314
481949268608 |
SPONA | Na dotaz | Zadat poptávku | |
| B00 4 WHR47483 |
C00594990
481944019755 |
Panel front. | Na dotaz | Zadat poptávku | |
| B00 5 WHR47483 |
C00320138
481946818181 |
GASKET | Na dotaz | Zadat poptávku | |
| B00 6 WHR47483 |
C00319988
481944019756 |
Door rear | Na dotaz | Zadat poptávku | |
| B00 7 WHR47483 |
C00339067
481944019732 |
Door front | Na dotaz | Zadat poptávku | |
| B00 8 WHR47483 |
C00317376
481949268643 |
CLIP | Na dotaz | Zadat poptávku | |
| B00 9 WHR47483 |
C00317368
481946818179 |
GASKET | Na dotaz | Zadat poptávku | |
| B01 1 WHR47483 |
C00312139
481946698658 |
Zámek dveří sušičky | Na dotaz | Zadat poptávku | |
| B01 2 WHR47483 |
C00333233
481950318241 |
Screw 6-20x7/8 | Na dotaz | Zadat poptávku | |
| B01 3 WHR47483 |
C00333228
481950318042 |
Screw 10-16x1/2 | Na dotaz | Zadat poptávku | |
| B01 4 WHR47483 |
C00320116
481946689329 |
STAY | Na dotaz | Zadat poptávku | |
| B01 5 WHR47483 |
C00333196
481949878126 |
HANDLE | Na dotaz | Zadat poptávku | |
| B01 6 WHR47483 |
C00333186
481949268756 |
CLIP | Na dotaz | Zadat poptávku | |
| B01 7 WHR47483 |
C00518417
481944019757 |
Panel Toe white. | Na dotaz | Zadat poptávku | |
| B01 9 WHR47483 |
C00333234
481950318242 |
Screw 8-18x1/2 | Na dotaz | Zadat poptávku | |
| B02 0 WHR47483 |
C00339866
481941719497 |
HINGE | Na dotaz | Zadat poptávku | |
| B02 3 WHR47483 |
C00336606
481950318051 |
Screw 8-18x3/8 | Na dotaz | Zadat poptávku | |
| C00 1 WHR47483 |
C00332919
481940118567 |
CLAMP | Na dotaz | Zadat poptávku | |
| C00 2 WHR47483 |
C00389172
480113100299 |
Motor 60 Hz | Na dotaz | Zadat poptávku | |
| C00 3 WHR47483 |
C00389173
480113100301 |
Connector | Na dotaz | Zadat poptávku | |
| C00 4 WHR47483 |
C00518397
481927618325 |
SWITCH. | Na dotaz | Zadat poptávku | |
| C00 5 WHR47483 |
C00389174
480113100302 |
Bracket motor | Na dotaz | Zadat poptávku | |
| C00 6 WHR47483 |
C00518418
481944019758 |
Panel rear. | Na dotaz | Zadat poptávku | |
| C00 7 WHR47483 |
C00333227
481950318022 |
Screw 10-16x1/2 | Na dotaz | Zadat poptávku | |
| C00 8 WHR47483 |
C00389242
480113100385 |
Bracket spacer | Na dotaz | Zadat poptávku | |
| C01 0 WHR47483 |
C00518419
481944019759 |
Panel side (L H) WH. | Na dotaz | Zadat poptávku | |
| C01 0 WHR47483 |
C00518420
481944019761 |
Panel side (R H ) WH. | Na dotaz | Zadat poptávku | |
| C01 1 WHR47483 |
C00518452
481952928187 |
SPOUT. | Na dotaz | Zadat poptávku | |
| C01 2 WHR47483 |
C00389259
480113100406 |
Cable mains | Na dotaz | Zadat poptávku | |
| C01 4 WHR47483 |
C00344142
481932058307 |
Bridge connect. belt switch | Na dotaz | Zadat poptávku | |
| C01 5 WHR47483 |
C00518444
481949268764 |
CLIP. | Na dotaz | Zadat poptávku | |
| C01 7 WHR47483 |
C00518404
481940479202 |
BRACKET. | Na dotaz | Zadat poptávku | |
| C01 8 WHR47483 |
C00312620
481953228227 |
pojistka zajištovací | 165 Kč
€ 6.80 |
||
| C02 0 WHR47483 |
C00313084
481935818142 |
Řemen poloprofesionální sušičky prádla Whirlpool | 502 Kč
€ 20.60 |
||
| C02 2 WHR47483 |
C00518405
481940479203 |
WPW10547294 BRACKET | Na dotaz | Zadat poptávku | |
| C02 3 WHR47483 |
C00321205
480112100555 |
Screw | Na dotaz | Zadat poptávku | |
| C02 4 WHR47483 |
C00518429
481946418158 |
HOLDER. | Na dotaz | Zadat poptávku | |
| C02 5 WHR47483 |
C00333170
481949258135 |
SPRING | Na dotaz | Zadat poptávku | |
| C02 6 WHR47483 |
C00518427
481946258186 |
Cover Transition Pan. | Na dotaz | Zadat poptávku | |
| C02 7 WHR47483 |
C00318842
480113100304 |
Panel | Na dotaz | Zadat poptávku | |
| C02 8 WHR47483 |
C00518421
481944019763 |
TABLE TOP. | Na dotaz | Zadat poptávku | |
| C03 0 WHR47483 |
C00518437
481946699051 |
SPACER. | Na dotaz | Zadat poptávku | |
| C03 1 WHR47483 |
C00518406
481940479204 |
BRACKET. | Na dotaz | Zadat poptávku | |
| C03 2 WHR47483 |
C00389176
480113100305 |
Buffer lid stop | Na dotaz | Zadat poptávku | |
| C03 3 WHR47483 |
C00336650
481950318039 |
Screw 10-16x3/8 | Na dotaz | Zadat poptávku | |
| C03 4 WHR47483 |
C00336649
481950318209 |
Screw 10-16x5/8 | Na dotaz | Zadat poptávku | |
| C03 5 WHR47483 |
C00336621
481950318052 |
Screw 6-20x1 3/8 | Na dotaz | Zadat poptávku | |
| C03 6 WHR47483 |
C00319766
481929068391 |
3397659 Terminal block | Na dotaz | Zadat poptávku | |
| C03 8 WHR47483 |
C00333133
481946689326 |
STOPPER | Na dotaz | Zadat poptávku | |
| C03 9 WHR47483 |
C00311004
481952888108 |
Kolečko kladky, napínací sušičky prádla Whirlpool | 733 Kč
€ 30.10 |
||
| C04 3 WHR47483 |
C00389241
480113100384 |
Pin | Na dotaz | Zadat poptávku | |
| C04 4 WHR47483 |
C00518447
481950618087 |
NUT. | Na dotaz | Zadat poptávku | |
| C04 7 WHR47483 |
C00595008
481950318264 |
SCREW. | Na dotaz | Zadat poptávku | |
| C04 9 WHR47483 |
C00518438
481946699053 |
GUARD. | Na dotaz | Zadat poptávku | |
| C05 0 WHR47483 |
C00313698
481931038733 |
Plate connector screw kit | Na dotaz | Zadat poptávku | |
| C05 1 WHR47483 |
C00316151
481940118795 |
Terminal Block | Na dotaz | Zadat poptávku | |
| C05 2 WHR47483 |
C00338405
481240448899 |
Lever microswitch | Na dotaz | Zadat poptávku | |
| D00 1 WHR47483 |
C00315737
481953598594 |
SHAFT | Na dotaz | Zadat poptávku | |
| D00 4 WHR47483 |
C00338999
481944019764 |
Door lint screen | Na dotaz | Zadat poptávku | |
| D00 5 WHR47483 |
C00319052
481954019741 |
Air guide | Na dotaz | Zadat poptávku | |
| D00 6 WHR47483 |
C00333152
481946818183 |
tesneni | 106 Kč
€ 4.40 |
||
| D00 7 WHR47483 |
C00518442
481946818191 |
GASKET BORDER. | Na dotaz | Zadat poptávku | |
| D00 8 WHR47483 |
C00321206
480112100557 |
Nut 3/8 x 16 (R.H.) | Na dotaz | Zadat poptávku | |
| D00 9 WHR47483 |
C00333204
481950218294 |
Screw | Na dotaz | Zadat poptávku | |
| D01 0 WHR47483 |
C00518450
481951528257 |
AGITATOR. | Na dotaz | Zadat poptávku | |
| D01 1 WHR47483 |
C00389177
480113100306 |
Pipe exhaust | Na dotaz | Zadat poptávku | |
| D01 2 WHR47483 |
C00337625
481226318003 |
8066086 Dryer Drum Hole Plug | Na dotaz | Zadat poptávku | |
| D01 4 WHR47483 |
C00389243
480113100386 |
Heating element | Na dotaz | Zadat poptávku | |
| D01 5 WHR47483 |
C00332864
481931038736 |
279457 Heating Elem. Connecting Wire KIT | Na dotaz | Zadat poptávku | |
| D01 6 WHR47483 |
C00321207
480112100559 |
Nut 3/8-16 (L.H.) | Na dotaz | Zadat poptávku | |
| D01 7 WHR47483 |
C00317531
481944019765 |
Panel rear air-guide | Na dotaz | Zadat poptávku | |
| D01 8 WHR47483 |
C00314436
481953238118 |
WASHER | Na dotaz | Zadat poptávku | |
| D01 9 WHR47483 |
C00313470
481253598088 |
Shaft left | Na dotaz | Zadat poptávku | |
| D02 1 WHR47483 |
C00311045
481952878089 |
Kolečko | 2 208 Kč
€ 90.70 |
||
| D02 2 WHR47483 |
C00333235
481950318254 |
Screw 10-16x 3/4 | Na dotaz | Zadat poptávku | |
| D02 3 WHR47483 |
C00319990
481944019766 |
kryt | Na dotaz | Zadat poptávku | |
| D02 5 WHR47483 |
C00594989
481941818322 |
DRUM. | Na dotaz | Zadat poptávku | |
| D02 6 WHR47483 |
C00333236
481950318261 |
Screw 11-16x3/4 | Na dotaz | Zadat poptávku | |
| D02 7 WHR47483 |
C00314865
481946818182 |
Těsnění bubnu + lepidlo | 1 705 Kč
€ 70.10 |
||
| D02 9 WHR47483 |
C00321199
480112100522 |
Screw 8-18 x 5/16 | Na dotaz | Zadat poptávku | |
| D03 1 WHR47483 |
C00333153
481946818187 |
tesneni | Na dotaz | Zadat poptávku | |
| D03 3 WHR47483 |
C00389178
480113100307 |
Gasket | Na dotaz | Zadat poptávku | |
| D03 5 WHR47483 |
C00518445
481949268766 |
CLIP. | Na dotaz | Zadat poptávku | |
| D03 7 WHR47483 |
C00313024
481951528255 |
Kruhový ventilátor 697772 do sušiček Whirlpool | 1 317 Kč
€ 54.10 |
||
| D03 8 WHR47483 |
C00635718
481952928188 |
Wheel ,rear,front. | Na dotaz | Zadat poptávku | |
| D03 9 WHR47483 |
C00342493
481946258181 |
kryt | Na dotaz | Zadat poptávku | |
| D04 0 WHR47483 |
C00333187
481949268767 |
SPRING | Na dotaz | Zadat poptávku | |
| D04 2 WHR47483 |
C00582262
481928248306 |
THERMOSTAT. | Na dotaz | Zadat poptávku | |
| D04 4 WHR47483 |
C00320498
480113100308 |
Cabinet fan wheel | Na dotaz | Zadat poptávku | |
| D04 6 WHR47483 |
C00332823
481925928861 |
Heating element box | Na dotaz | Zadat poptávku | |
| D04 7 WHR47483 |
C00311024
481928228665 |
pojistka tepelna | 745 Kč
€ 30.60 |
||
| D04 8 WHR47483 |
C00312347
481940118734 |
Termostat poloprofesionální sušičky Whirlpool 175 °C | 1 102 Kč
€ 45.30 |
||
| D04 9 WHR47483 |
C00518413
481940479401 |
HOOP. | Na dotaz | Zadat poptávku | |
| D05 0 WHR47483 |
C00389260
480113100407 |
Current limiter | Na dotaz | Zadat poptávku | |
| D05 1 WHR47483 |
C00518431
481946638085 |
LEVEL EYE. | Na dotaz | Zadat poptávku | |
| D05 2 WHR47483 |
C00315410
481245838065 |
mrizka | 802 Kč
€ 33.00 |
||
| D05 3 WHR47483 |
C00333017
481944019767 |
Panel front air-guide | Na dotaz | Zadat poptávku | |
| E00 1 WHR47483 |
C00389261
480113100408 |
Cable harness washer | Na dotaz | Zadat poptávku | |
| E00 2 WHR47483 |
C00518453
481952928189 |
Conveyor left. | Na dotaz | Zadat poptávku | |
| E00 3 WHR47483 |
C00518454
481952928191 |
Conveyor right. | Na dotaz | Zadat poptávku | |
| E00 4 WHR47483 |
C00518439
481946699054 |
CASING. | Na dotaz | Zadat poptávku | |
| E00 5 WHR47483 |
C00389182
480113100313 |
Hose | Na dotaz | Zadat poptávku | |
| E00 6 WHR47483 |
C00389262
480113100409 |
Clip harness | Na dotaz | Zadat poptávku | |
| E00 8 WHR47483 |
C00343098
481229068183 |
Connector cold valve | Na dotaz | Zadat poptávku | |
| E00 9 WHR47483 |
C00343443
481229068181 |
CONNECTOR | Na dotaz | Zadat poptávku | |
| E01 3 WHR47483 |
C00389184
480113100315 |
Screw 5/16-18 x 1/2 | Na dotaz | Zadat poptávku | |
| E01 5 WHR47483 |
C00518434
481946689341 |
GUARD. | Na dotaz | Zadat poptávku | |
| E01 6 WHR47483 |
C00518435
481946689342 |
GUARD. | Na dotaz | Zadat poptávku | |
| E01 8 WHR47483 |
C00518401
481940118796 |
CLIP. | Na dotaz | Zadat poptávku | |
| E01 A WHR47483 |
C00635684
481903350130 |
BRACKET. | Na dotaz | Zadat poptávku | |
| E01 B WHR47483 |
C00343446
481903347243 |
Connector | Na dotaz | Zadat poptávku | |
| E01 C WHR47483 |
C00343099
481900352089 |
Connector black | Na dotaz | Zadat poptávku | |
| E01 D WHR47483 |
C00389181
480113100312 |
Connector 3-way | Na dotaz | Zadat poptávku | |
| E01 E WHR47483 |
C00343445
481900062505 |
CONNECTOR | Na dotaz | Zadat poptávku | |
| E02 3 WHR47483 |
C00332836
481926823052 |
BOLT | Na dotaz | Zadat poptávku | |
| E02 3 WHR47483 |
C00328875
481240118454 |
CLAMP | Na dotaz | Zadat poptávku | |
| E02 4 WHR47483 |
C00337105
481940118553 |
PROTECTOR | Na dotaz | Zadat poptávku | |
| F00 1 WHR47483 |
C00498781
481903947509 |
LID. | Na dotaz | Zadat poptávku | |
| F00 2 WHR47483 |
C00330920
481246668693 |
Damper cabinet lid | Na dotaz | Zadat poptávku | |
| F00 3 WHR47483 |
C00336709
481950318029 |
SCREW | Na dotaz | Zadat poptávku | |
| F00 6 WHR47483 |
C00636189
481944019768 |
HOB. | Na dotaz | Zadat poptávku | |
| F00 7 WHR47483 |
C00343276
481949268753 |
Clip grounding | Na dotaz | Zadat poptávku | |
| F00 8 WHR47483 |
C00389187
480113100318 |
Bracket | Na dotaz | Zadat poptávku | |
| F00 9 WHR47483 |
C00389188
480113100319 |
Blocking pin | Na dotaz | Zadat poptávku | |
| F01 0 WHR47483 |
C00389189
480113100321 |
Clip | Na dotaz | Zadat poptávku | |
| F01 1 WHR47483 |
C00333264
481952018016 |
Bearing lid hinge | Na dotaz | Zadat poptávku | |
| F01 2 WHR47483 |
C00336656
481950318211 |
Screw + washer | Na dotaz | Zadat poptávku | |
| F01 3 WHR47483 |
C00314040
481953538108 |
Fixation lid switch | Na dotaz | Zadat poptávku | |
| F01 4 WHR47483 |
C00389190
480113100322 |
Hinge R.H. | Na dotaz | Zadat poptávku | |
| F01 5 WHR47483 |
C00389191
480113100323 |
Hinge L.H. | Na dotaz | Zadat poptávku | |
| F01 8 WHR47483 |
C00333177
481949268597 |
Clip fix harness | Na dotaz | Zadat poptávku | |
| G00 1 WHR47483 |
C00518446
481949268771 |
Clip. | Na dotaz | Zadat poptávku | |
| G00 2 WHR47483 |
C00518411
481940479211 |
BRACKET. | Na dotaz | Zadat poptávku | |
| G00 4 WHR47483 |
C00635683
481903350013 |
Fan wheel. | Na dotaz | Zadat poptávku | |
| G00 5 WHR47483 |
C00389263
480113100411 |
WP3952162 VALVE | Na dotaz | Zadat poptávku | |
| G00 6 WHR47483 |
C00343396
481900370451 |
CLAMP | Na dotaz | Zadat poptávku | |
| G00 7 WHR47483 |
C00494708
481953028966 |
HOSE | Na dotaz | Zadat poptávku | |
| G00 8 WHR47483 |
C00518396
481927618324 |
Panel side. | Na dotaz | Zadat poptávku | |
| G00 9 WHR47483 |
C00518412
481940479212 |
HOLDER. | Na dotaz | Zadat poptávku | |
| G01 0 WHR47483 |
C00621600
481953028967 |
PIPE,EXHAUST. | Na dotaz | Zadat poptávku | |
| G01 1 WHR47483 |
C00332158
481250238368 |
Screw 8-18x1/2 | Na dotaz | Zadat poptávku | |
| G01 2 WHR47483 |
C00518428
481946279896 |
PLUG. | Na dotaz | Zadat poptávku | |
| G01 3 WHR47483 |
C00389195
480113100327 |
Hose connection | Na dotaz | Zadat poptávku | |
| G01 4 WHR47483 |
C00332918
481940118546 |
Clamp hose | Na dotaz | Zadat poptávku | |
| G01 5 WHR47483 |
C00518407
481940479206 |
BRACKET. | Na dotaz | Zadat poptávku | |
| G01 6 WHR47483 |
C00318942
481946698643 |
CHAMBER,AIR. | Na dotaz | Zadat poptávku | |
| G01 7 WHR47483 |
C00332917
481940118542 |
hose clamp | Na dotaz | Zadat poptávku | |
| G01 8 WHR47483 |
C00518440
481946699055 |
GUARD. | Na dotaz | Zadat poptávku | |
| G01 9 WHR47483 |
C00389196
480113100328 |
Plate bottom | Na dotaz | Zadat poptávku | |
| G02 0 WHR47483 |
C00518408
481940479207 |
HOOP. | Na dotaz | Zadat poptávku | |
| G02 1 WHR47483 |
C00343354
481940118544 |
Clamp hose | Na dotaz | Zadat poptávku | |
| G02 2 WHR47483 |
C00492554
481949268769 |
Clip | Na dotaz | Zadat poptávku | |
| G02 3 WHR47483 |
C00595017
481953598597 |
LEVER,ARM. | Na dotaz | Zadat poptávku | |
| G02 4 WHR47483 |
C00518457
481953598599 |
Lever,arm. | Na dotaz | Zadat poptávku | |
| G02 6 WHR47483 |
C00518402
481940118798 |
BLOCKING. | Na dotaz | Zadat poptávku | |
| G02 7 WHR47483 |
C00621575
481944019772 |
Panel front. | Na dotaz | Zadat poptávku | |
| G02 9 WHR47483 |
C00518424
481946248422 |
FOOT. | Na dotaz | Zadat poptávku | |
| G03 0 WHR47483 |
C00518409
481940479208 |
BRACKET. | Na dotaz | Zadat poptávku | |
| G03 2 WHR47483 |
C00518448
481950618089 |
NUT. | Na dotaz | Zadat poptávku | |
| G03 4 WHR47483 |
C00340787
481946248269 |
Foot front | Na dotaz | Zadat poptávku | |
| G03 5 WHR47483 |
C00389197
480113100329 |
Nut jam | Na dotaz | Zadat poptávku | |
| G03 6 WHR47483 |
C00518422
481944019771 |
Panel rear. | Na dotaz | Zadat poptávku | |
| G03 8 WHR47483 |
C00518423
481946238825 |
RAIL. | Na dotaz | Zadat poptávku | |
| G03 9 WHR47483 |
C00518443
481949258136 |
SPRING. | Na dotaz | Zadat poptávku | |
| G04 0 WHR47483 |
C00518441
481946699056 |
HOLDER. | Na dotaz | Zadat poptávku | |
| H00 1 WHR47483 |
C00311546
481953598415 |
Brake + drive tube | Na dotaz | Zadat poptávku | |
| H00 2 WHR47483 |
C00313860
481953228222 |
tesneni | 225 Kč
€ 9.20 |
||
| H00 3 WHR47483 |
C00317410
481953228225 |
tesneni | 76 Kč
€ 3.10 |
||
| H00 4 WHR47483 |
C00315270
481932568036 |
tesneni | Na dotaz | Zadat poptávku | |
| H00 5 WHR47483 |
C00311119
481969018152 |
CLUTCH | Na dotaz | Zadat poptávku | |
| H00 6 WHR47483 |
C00336856
481203948001 |
RING | Na dotaz | Zadat poptávku | |
| H00 7 WHR47483 |
C00316645
481249238383 |
Spring clutch | Na dotaz | Zadat poptávku | |
| H00 8 WHR47483 |
C00342836
481946258111 |
CAP | Na dotaz | Zadat poptávku | |
| H00 9 WHR47483 |
C00389198
480113100331 |
Gear complete | Na dotaz | Zadat poptávku | |
| H01 0 WHR47483 |
C00336719
481250318002 |
SCREW | Na dotaz | Zadat poptávku | |
| H01 1 WHR47483 |
C00320112
481946688949 |
Plate mounting | Na dotaz | Zadat poptávku | |
| H01 3 WHR47483 |
C00311039
481932528035 |
spojka | 779 Kč
€ 32.00 |
||
| H01 4 WHR47483 |
C00401754
481236158467 |
Motor | Na dotaz | Zadat poptávku | |
| H01 5 WHR47483 |
C00387958
480110100337 |
Capacitor Motor Start | Na dotaz | Zadat poptávku | |
| H01 6 WHR47483 |
C00337769
481246638073 |
Plate motor | Na dotaz | Zadat poptávku | |
| H01 8 WHR47483 |
C00312109
481936018249 |
PUMP | Na dotaz | Zadat poptávku | |
| H01 9 WHR47483 |
C00316478
481940478292 |
CLAMPING PIECE PUMP | Na dotaz | Zadat poptávku | |
| H02 0 WHR47483 |
C00317947
481927618205 |
Switch motor | Na dotaz | Zadat poptávku | |
| H02 1 WHR47483 |
C00340201
481932568038 |
Grommet motor | Na dotaz | Zadat poptávku | |
| H02 2 WHR47483 |
C00343330
481940478291 |
CLAMPING PIECE MOTOR | Na dotaz | Zadat poptávku | |
| H02 3 WHR47483 |
C00340194
481946689325 |
GUARD | Na dotaz | Zadat poptávku | |
| H02 5 WHR47483 |
C00343398
481903949496 |
CLAMP | Na dotaz | Zadat poptávku | |
| H02 6 WHR47483 |
C00343309
481903355454 |
CLIP | Na dotaz | Zadat poptávku | |
| I00 2 WHR47483 |
C00319882
481940478293 |
Bracket spring | Na dotaz | Zadat poptávku | |
| I00 3 WHR47483 |
C00312149
481949238103 |
SPRING,SUSPENS. | Na dotaz | Zadat poptávku | |
| I00 4 WHR47483 |
C00317089
480110100184 |
Support and brake, tub. | Na dotaz | Zadat poptávku | |
| I00 5 WHR47483 |
C00344153
481940478294 |
BRACKET SPRING | Na dotaz | Zadat poptávku | |
| I00 7 WHR47483 |
C00332166
481250318003 |
Screw 10-32x5/8 | Na dotaz | Zadat poptávku | |
| I00 9 WHR47483 |
C00518436
481946689343 |
Clamp hose. | Na dotaz | Zadat poptávku | |
| I01 0 WHR47483 |
C00318274
481953268534 |
Ring sound deadening | Na dotaz | Zadat poptávku | |
| I01 1 WHR47483 |
C00318138
481949268607 |
Holder suspension spring | Na dotaz | Zadat poptávku | |
| I01 2 WHR47483 |
C00389199
480113100332 |
Screw 5/16-18 x 1 3/32 | Na dotaz | Zadat poptávku | |
| I01 3 WHR47483 |
C00344383
480110100185 |
Bearing centerpost | Na dotaz | Zadat poptávku | |
| I01 4 WHR47483 |
C00340560
481946669831 |
Gasket | Na dotaz | Zadat poptávku | |
| I01 5 WHR47483 |
C00315296
481949238109 |
SPRING COUNTERWEIGHT | Na dotaz | Zadat poptávku | |
| I01 6 WHR47483 |
C00312241
481952918049 |
Pad plate | Na dotaz | Zadat poptávku | |
| I01 7 WHR47483 |
C00316747
481903946509 |
PLATE | Na dotaz | Zadat poptávku | |
| I01 8 WHR47483 |
C00312536
481903363660 |
BLOCK | Na dotaz | Zadat poptávku | |
| I01 9 WHR47483 |
C00518430
481946418161 |
BASE. | Na dotaz | Zadat poptávku | |
| I02 1 WHR47483 |
C00518410
481940479209 |
HOOP. | Na dotaz | Zadat poptávku | |
| I02 2 WHR47483 |
C00518456
481953268792 |
WASHER. | Na dotaz | Zadat poptávku | |
| I02 3 WHR47483 |
C00336545
480110100186 |
Seal centerpost | Na dotaz | Zadat poptávku | |
| I02 4 WHR47483 |
C00317392
481952018019 |
Bearing kit | Na dotaz | Zadat poptávku | |
| J00 2 WHR47483 |
C00389200
480113100333 |
Cam | Na dotaz | Zadat poptávku | |
| J00 3 WHR47483 |
C00333275
481952838437 |
CAM | Na dotaz | Zadat poptávku | |
| J00 4 WHR47483 |
C00314897
481950318043 |
Screw 5/16-24x1 | Na dotaz | Zadat poptávku | |
| J00 5 WHR47483 |
C00518426
481946258175 |
PLUG. | Na dotaz | Zadat poptávku | |
| J00 6 WHR47483 |
C00518449
481951528252 |
AGITATOR. | Na dotaz | Zadat poptávku | |
| J00 7 WHR47483 |
C00595007
481946699041 |
SPACER. | Na dotaz | Zadat poptávku | |
| J00 8 WHR47483 |
C00636272
481951528253 |
AGITATOR. | Na dotaz | Zadat poptávku | |
| J00 9 WHR47483 |
C00314849
481946698644 |
RING FOR TUB | Na dotaz | Zadat poptávku | |
| J01 0 WHR47483 |
C00318932
481946669993 |
3976308 gasket tub ring | Na dotaz | Zadat poptávku | |
| J01 1 WHR47483 |
C00389264
480113100412 |
Drum ass. | Na dotaz | Zadat poptávku | |
| J01 2 WHR47483 |
C00312035
481950618005 |
NUT | Na dotaz | Zadat poptávku | |
| J01 3 WHR47483 |
C00320297
481255028013 |
Ring balance | Na dotaz | Zadat poptávku | |
| J01 4 WHR47483 |
C00636177
481941818324 |
Tub. | Na dotaz | Zadat poptávku | |
| J01 6 WHR47483 |
C00311287
481946688948 |
Block basket drive | Na dotaz | Zadat poptávku | |
| J01 7 WHR47483 |
C00311706
481953268533 |
GASKET CENTERPOST | Na dotaz | Zadat poptávku | |
| J01 9 WHR47483 |
C00336441
481932568037 |
SHAFT SEAL | Na dotaz | Zadat poptávku | |
| J02 0 WHR47483 |
C00343408
481940118547 |
CLAMP | Na dotaz | Zadat poptávku | |
| J02 1 WHR47483 |
C00320862
481903950340 |
Connection Hose | Na dotaz | Zadat poptávku | |
| J02 4 WHR47483 |
C00518415
481941879399 |
DISPENSER. | Na dotaz | Zadat poptávku | |
| J02 5 WHR47483 |
C00320854
481903949550 |
WASHER | Na dotaz | Zadat poptávku | |
| K00 2 WHR47483 |
C00342506
481946279449 |
Cover f transmission. | Na dotaz | Zadat poptávku | |
| K00 3 WHR47483 |
C00340571
481946669834 |
Gasket | Na dotaz | Zadat poptávku | |
| K00 4 WHR47483 |
C00336540
481939038023 |
SEALER GASKET | Na dotaz | Zadat poptávku | |
| K00 5 WHR47483 |
C00341433
481952218002 |
pINION | Na dotaz | Zadat poptávku | |
| K00 6 WHR47483 |
C00317553
481946669833 |
Gasket | Na dotaz | Zadat poptávku | |
| K00 7 WHR47483 |
C00316498
481952228007 |
DRIVE SHAFT | Na dotaz | Zadat poptávku | |
| K00 8 WHR47483 |
C00336826
481953238063 |
RING,RETAINING. | Na dotaz | Zadat poptávku | |
| K00 9 WHR47483 |
C00318276
481953268536 |
RETAINER,SPRING. | Na dotaz | Zadat poptávku | |
| K01 0 WHR47483 |
C00318962
481949238113 |
SPRING | Na dotaz | Zadat poptávku | |
| K01 1 WHR47483 |
C00340392
481952238015 |
GEAR | Na dotaz | Zadat poptávku | |
| K01 2 WHR47483 |
C00337245
481953268537 |
WASHER | Na dotaz | Zadat poptávku | |
| K01 3 WHR47483 |
C00342863
481952838377 |
CAM | Na dotaz | Zadat poptávku | |
| K01 6 WHR47483 |
C00337243
481953268538 |
WASHER | Na dotaz | Zadat poptávku | |
| K01 7 WHR47483 |
C00344402
481952018022 |
Bearing | Na dotaz | Zadat poptávku | |
| K01 9 WHR47483 |
C00387959
480110100338 |
Bottom and pinion gearcase | Na dotaz | Zadat poptávku | |
| K02 0 WHR47483 |
C00389201
480113100334 |
Block tab, terminal | Na dotaz | Zadat poptávku | |
| K02 1 WHR47483 |
C00318284
481953278121 |
SHAFT SEAL | Na dotaz | Zadat poptávku | |
| K02 2 WHR47483 |
C00336646
481950318034 |
Screw 10-24x3/8 | Na dotaz | Zadat poptávku | |
| K02 3 WHR47483 |
C00336852
481903362552 |
RING | Na dotaz | Zadat poptávku | |
| K02 4 WHR47483 |
C00498704
481900285735 |
WASHER. | Na dotaz | Zadat poptávku | |
| K02 6 WHR47483 |
C00518399
481931038943 |
ACCESSORIES NEUTRAL. | Na dotaz | Zadat poptávku | |
| K02 7 WHR47483 |
C00336535
481952838381 |
Segment,toothed. | Na dotaz | Zadat poptávku | |
| K02 8 WHR47483 |
C00344657
481952838382 |
ACTUATOR SHIFTshift | Na dotaz | Zadat poptávku | |
| K02 9 WHR47483 |
C00337246
481953268541 |
WASHER | Na dotaz | Zadat poptávku | |
| L00 2 WHR47483 |
C00318264
481953238057 |
RING | Na dotaz | Zadat poptávku | |
| L00 4 WHR47483 |
C00316835
481953238058 |
TUBE | Na dotaz | Zadat poptávku | |
| L00 5 WHR47483 |
C00336824
481953238059 |
RING,RETAINING | Na dotaz | Zadat poptávku | |
| L00 6 WHR47483 |
C00318938
481946688954 |
BRAKE SHOE | Na dotaz | Zadat poptávku | |
| L00 7 WHR47483 |
C00344404
481952018021 |
BEARING | Na dotaz | Zadat poptávku | |
| L00 8 WHR47483 |
C00387896
480110100189 |
Cap spring brake | Na dotaz | Zadat poptávku | |
| L00 9 WHR47483 |
C00336121
481900062647 |
SPRING | Na dotaz | Zadat poptávku | |
| L01 0 WHR47483 |
C00336277
480110100191 |
Sleeve brake spring | Na dotaz | Zadat poptávku | |
| L01 1 WHR47483 |
C00342862
481952838383 |
CAM | Na dotaz | Zadat poptávku | |
| L01 2 WHR47483 |
C00341171
481952648271 |
Drum lifter brake cam | Na dotaz | Zadat poptávku | |
| L01 3 WHR47483 |
C00320774
481900285790 |
Driver level brake | Na dotaz | Zadat poptávku | |
| L01 4 WHR47483 |
C00336825
481953238062 |
RING,RETAINING. | Na dotaz | Zadat poptávku | |
| M00 1 WHR47483 |
C00335573
481952648272 |
Terminal male kit | Na dotaz | Zadat poptávku | |
| M00 2 WHR47483 |
C00498708
481900660626 |
CLAMP. | Na dotaz | Zadat poptávku | |
| M00 3 WHR47483 |
C00343440
481952648273 |
CONNECTOR | Na dotaz | Zadat poptávku | |
| M00 4 WHR47483 |
C00490360
481931038727 |
SIPHON | Na dotaz | Zadat poptávku | |
| M00 5 WHR47483 |
C00314032
481952928175 |
Hose draining 10 Ft. | Na dotaz | Zadat poptávku | |
| M00 5 WHR47483 |
C00316500
481952928174 |
Hose draining 5-1/2 Ft. | Na dotaz | Zadat poptávku | |
| M00 5 WHR47483 |
C00389202
480113100335 |
Hose draining 6 1/2 Ft. | Na dotaz | Zadat poptávku | |
| M00 6 WHR47483 |
C00344295
480110100148 |
Bow | Na dotaz | Zadat poptávku | |
| M00 7 WHR47483 |
C00498991
481940118725 |
Clamp hose. | Na dotaz | Zadat poptávku | |
| M00 8 WHR47483 |
C00518451
481952648456 |
Coupling pipe. | Na dotaz | Zadat poptávku | |
| M00 9 WHR47483 |
C00339352
481953028801 |
Hose inlet | Na dotaz | Zadat poptávku | |
| M01 0 WHR47483 |
C00343441
481931038726 |
CONNECTOR | Na dotaz | Zadat poptávku | |
| N00 1 WHR47483 |
C00389265
480113100413 |
DIVERSE | Na dotaz | Zadat poptávku | |
| N00 2 WHR47483 |
C00314694
481953238055 |
Inlet Hose Washer | Na dotaz | Zadat poptávku | |
