IKEA 80079297 OBI D30 S OVENS IK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 80079297 OBI D30 S OVENS IK |
| Kód 12NC: | 854188129000 |
| I.C. kód: | 854188129002 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 854188129003, 854188129000, 854188129001 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

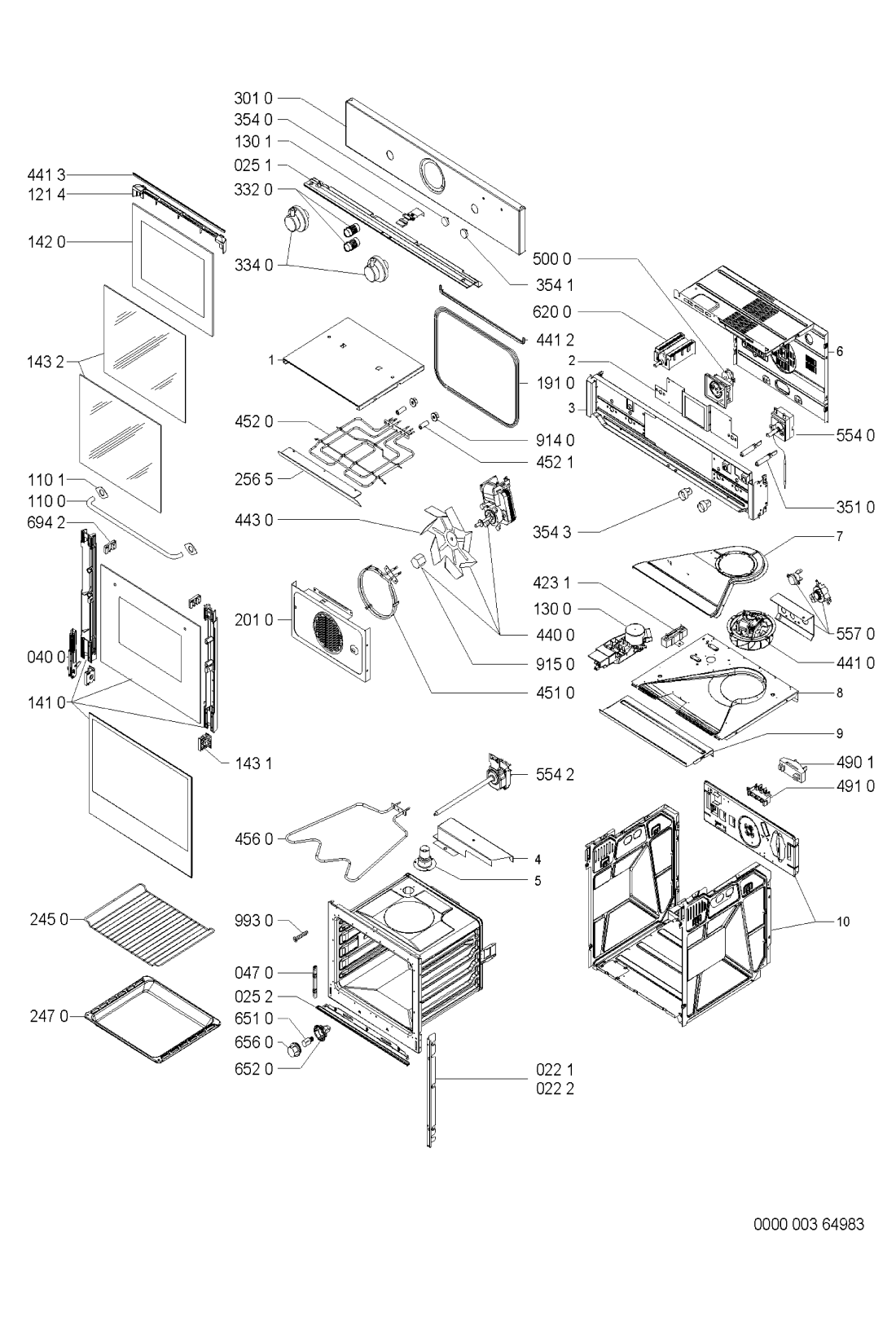

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 1 WHR79458 |
C00330420
481246088305 |
Trim side left | Na dotaz | Zadat poptávku | |
| 022 2 WHR79458 |
C00330419
481246088304 |
Trim side right | Na dotaz | Zadat poptávku | |
| 025 1 WHR79458 |
C00330287
481246049522 |
Trim lower part | Na dotaz | Zadat poptávku | |
| 025 2 WHR79458 |
C00464067
481246079153 |
lista spodni | Na dotaz | Zadat poptávku | |
| 040 0 WHR79458 |
C00329719
481241719276 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR79458 |
C00329812
481241778152 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 110 0 WHR79458 |
C00317380
481949878005 |
Madlo dveří trouby Whirlpool, Bauknecht | 2 232 Kč
€ 91.80 |
||
| 110 1 WHR79458 |
C00333076
481946248456 |
Rubber ringring | Na dotaz | Zadat poptávku | |
| 121 4 WHR79458 |
C00316606
481238028034 |
Deflector door | Na dotaz | Zadat poptávku | |
| 130 0 WHR79458 |
C00527826
481241738027 |
Door lock assy | Na dotaz | Zadat poptávku | |
| 130 1 WHR79458 |
C00493532
481241738025 |
Child-proof lock | Na dotaz | Zadat poptávku | |
| 141 0 WHR79458 |
C00485328
481245058969 |
Oven glass | Na dotaz | Zadat poptávku | |
| 142 0 WHR79458 |
C00587605
481245058909 |
Inner glass. | Na dotaz | Zadat poptávku | |
| 143 1 WHR79458 |
C00317299
481245058908 |
Spacer door glass | Na dotaz | Zadat poptávku | |
| 143 2 WHR79458 |
C00331122
481245058942 |
Glas cover | Na dotaz | Zadat poptávku | |
| 191 0 WHR79458 |
C00331512
481246688825 |
Gasket, door | Na dotaz | Zadat poptávku | |
| 201 0 WHR79458 |
C00341539
481244269515 |
Panel rear pyro | Na dotaz | Zadat poptávku | |
| 245 0 WHR79458 |
C00333048
481945819991 |
Oven grid | Na dotaz | Zadat poptávku | |
| 247 0 WHR79458 |
C00587555
481241838119 |
PLECH NA PECENIE | Na dotaz | Zadat poptávku | |
| 256 5 WHR79458 |
C00316686
481240488073 |
Plate protection grill | Na dotaz | Zadat poptávku | |
| 301 0 WHR79458 |
C00483693
481245249035 |
Panel control | Na dotaz | Zadat poptávku | |
| 332 0 WHR79458 |
C00313150
481241128033 |
Knoflík hodin | 432 Kč
€ 17.80 |
||
| 334 0 WHR79458 |
C00312840
481241278977 |
knoflik rustikalni | Na dotaz | Zadat poptávku | |
| 351 0 WHR79458 |
C00327370
481231028093 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 354 0 WHR79458 |
C00314833
481946279749 |
LENS RED | Na dotaz | Zadat poptávku | |
| 354 1 WHR79458 |
C00341772
481946279748 |
kryt signalky zluty | 149 Kč
€ 6.10 |
||
| 354 3 WHR79458 |
C00340181
481240438607 |
signalka | Na dotaz | Zadat poptávku | |
| 423 1 WHR79458 |
C00326735
481211518038 |
Resistor 470 ohm | Na dotaz | Zadat poptávku | |
| 440 0 WHR79458 |
C00310972
481236118492 |
OVEN CAVITY FAN | Na dotaz | Zadat poptávku | |
| 441 0 WHR79458 |
C00328803
481236118435 |
Ventilator | Na dotaz | Zadat poptávku | |
| 441 2 WHR79458 |
C00315028
481246688784 |
Těsnění dveří trouby | 613 Kč
€ 25.20 |
||
| 441 3 WHR79458 |
C00331562
481246699047 |
tesneni dveri trouby | 269 Kč
€ 11.10 |
||
| 443 0 WHR79458 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 451 0 WHR79458 |
C00313065
481225998406 |
HEATING ELEMENT CIRCULAR 2000W 230V | Na dotaz | Zadat poptávku | |
| 452 0 WHR79458 |
C00317185
481225998456 |
Topné těleso trouby – horní + gril 2500W | Na dotaz | Zadat poptávku | |
| 452 1 WHR79458 |
C00328909
481240118665 |
Spacer heating element | Na dotaz | Zadat poptávku | |
| 456 0 WHR79458 |
C00316553
481225998421 |
Spodní topné těleso 1150W, 230V vestavné trouby Whirlpool | 355 Kč
€ 14.60 |
||
| 490 1 WHR79458 |
C00327588
481229068255 |
CABLE CLAMP | Na dotaz | Zadat poptávku | |
| 491 0 WHR79458 |
C00318185
481229068273 |
svorkovnice | 97 Kč
€ 4.00 |
||
| 500 0 WHR79458 |
C00500760
481228219756 |
Autotimer analogue | Na dotaz | Zadat poptávku | |
| 554 0 WHR79458 |
C00335485
481228238155 |
Thermostat oven | Na dotaz | Zadat poptávku | |
| 554 2 WHR79458 |
C00314927
481228228289 |
termostat | Na dotaz | Zadat poptávku | |
| 557 0 WHR79458 |
C00316903
481228228305 |
Pojistka tepelná | Na dotaz | Zadat poptávku | |
| 620 0 WHR79458 |
C00587515
481227318066 |
Switch,oven. | Na dotaz | Zadat poptávku | |
| 651 0 WHR79458 |
C00326815
481213418028 |
zarovka 25W 500C | 1 590 Kč
€ 65.40 |
||
| 652 0 WHR79458 |
C00327138
481225528021 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 656 0 WHR79458 |
C00331110
481245028009 |
Kryt žárovky | 1 129 Kč
€ 46.40 |
||
| 694 2 WHR79458 |
C00315933
481246368024 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 914 0 WHR79458 |
C00333243
481950518323 |
Nut | Na dotaz | Zadat poptávku | |
| 915 0 WHR79458 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 993 0 WHR79458 |
C00327633
481231038844 |
Mounting kit | Na dotaz | Zadat poptávku | |
